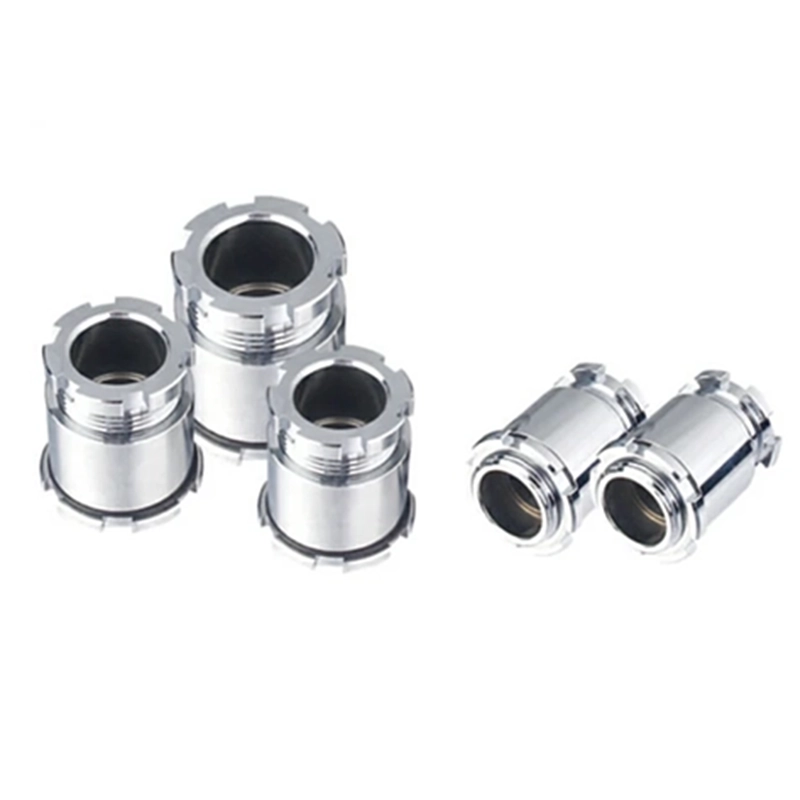

What Makes a Marine Cable Gland Different from Standard Cable Glands?

You're specifying cable entry components for a vessel, an offshore platform, or a shipyard installation. The environment is unforgiving – salt spray, constant moisture, temperature extremes, and heavy mechanical loads. A standard cable gland won't survive. A marine cable gland is purpose-built for exactly these conditions – engineered to provide a watertight seal that keeps seawater out, corrosion at bay, and electrical systems safe and operational. The JIS standard type is one example – designed to JIS F 8801 specifications with nickel-plated brass construction and IP68 protection. This guide covers what makes a marine cable gland different, the key specifications that define performance, and how to select the right one for your vessel or offshore installation.

From Bulkhead to Deck – The Critical Role of Watertight Cable Seals

On a vessel, cables pass through bulkheads, decks, and watertight compartments. Every penetration point is a potential pathway for water ingress – and in a marine environment, water ingress is not just a nuisance; it's a safety hazard. A marine cable gland seals these penetration points, preventing seawater from entering electrical enclosures and ensuring that critical systems – navigation, communication, power distribution – remain operational even in heavy seas. The JIS standard type is specifically designed for all types of unarmoured cables, providing a secure, watertight seal that meets the rigorous requirements of shipboard installations.

Where Marine Cable Glands Are Installed

Marine cable glands are used wherever cables pass through watertight boundaries: bulkhead penetrations between compartments, deck penetrations exposed to weather, cable entries into electrical enclosures and junction boxes, and connections to deck-mounted equipment.

Compliance with JIS F 8801 and JIS F 8802

The JIS standard type complies with JIS F 8801 (Shipbuilding – Watertight cable glands for electric appliance) and JIS F 8802 (Marine cable glands for bulkhead and deck). These Japanese Industrial Standards specify dimensional requirements, material specifications, and testing procedures for marine cable glands, ensuring they meet the demands of shipboard service.

Built to JIS F 8801 – The Standard That Defines Marine-Grade Reliability

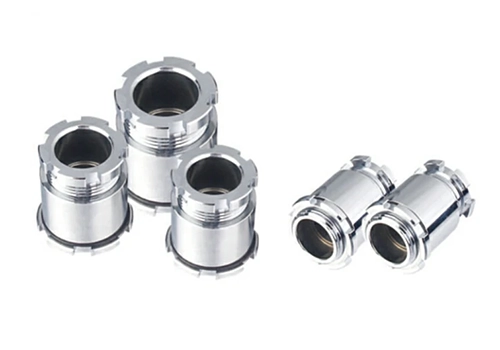

The JIS standard type marine cable gland is manufactured to JIS (Japanese Industrial Standard) specifications. JIS F 8801 covers watertight cable glands for electric appliances on ships, while JIS F 8802 covers glands for bulkhead and deck applications. Compliance with these standards ensures dimensional precision, material quality, and performance consistency – critical factors for marine applications where failure is not an option.

Entry Thread Options

The gland is available with Metric, PG, G and NPT thread entry options, covering international installation standards for marine and industrial applications.

Approvals – CE and REACH

The JIS standard type carries CE and REACH approvals, ensuring compliance with European safety and environmental regulations. For marine installations operating in or trading with European markets, these approvals simplify procurement and regulatory compliance.

Nickel-Plated Brass or Stainless Steel – Materials That Survive Salt Spray and Corrosion

The material of a marine cable gland determines its durability and corrosion resistance in the harsh marine environment. The JIS standard type uses brass, chromium plated construction. Nickel-plated brass provides excellent corrosion resistance in salt spray environments. The brass body offers mechanical strength, while the nickel plating protects against corrosion from seawater, moisture, and salt spray.

The Advantage of Nickel Plating

Nickel plating is the standard finish for marine cable glands. It provides a barrier against corrosion without compromising the mechanical strength of the brass body. For applications requiring even greater corrosion resistance, stainless steel alternatives are available.

Thread Length and Mounting Hole Dimensions

The JIS standard type is available with thread lengths of 11mm, 12mm, and 14mm, and mounting hole diameters ranging from 18mm to 89mm. These dimensions ensure compatibility with standard marine bulkhead and deck penetrations.

IP68 Watertight – Sealed Against Immersion, Spray, and Condensation

The JIS standard type marine cable gland offers watertight sealing to IP68 standards. IP68 is the highest ingress protection rating for cable glands, providing protection against dust ingress and continuous immersion in water beyond 1 meter. For marine installations, this means the gland maintains its seal even under flooding conditions, heavy spray, and constant condensation.

What IP68 Means in Practice

IP68 protection means the gland is dust-tight and can withstand continuous immersion in water under conditions specified by the manufacturer. For marine cable glands, this typically means immersion at significant depths for extended periods – the level of protection required for shipboard and offshore installations.

Tested to IEC/EN 60529

IP68 protection is verified through testing to IEC/EN 60529, the international standard for degrees of protection provided by enclosures. This independent testing provides documented assurance of the gland's watertight performance.

JIS-10 to JIS-75 – A Full Range of Sizes for Every Cable Diameter

The JIS standard type marine cable gland is available in a comprehensive range of sizes to accommodate different cable diameters:

Choosing the Right Size

Selecting the correct gland size requires matching the cable diameter to the gland's cable range. Multiple options (A, B, C) are available for each thread size, allowing you to match the gland precisely to your cable diameter.

A/B/C Options for Each Thread Size

For most thread sizes, three cable range options are available – A, B, and C. This ensures a snug fit for a wide range of cable diameters within each thread size, maximizing seal integrity.

What Marine Engineers Ask About Watertight Cable Glands

What standard do JIS marine cable glands comply with?
JIS marine cable glands comply with JIS F 8801 (Shipbuilding – Watertight cable glands for electric appliance) and JIS F 8802 (Marine cable glands for bulkhead and deck). These Japanese Industrial Standards specify dimensional, material, and performance requirements for marine cable glands.

What materials are available?
The JIS standard type is available in brass, chromium plated. Stainless steel alternatives are also available for applications requiring superior corrosion resistance.

What is the IP rating?
The gland provides IP68 protection – dust-tight and protected against continuous immersion in water. IP68 is verified through testing to IEC/EN 60529.

What thread types does the gland use?
The JIS standard type is available with Metric, PG, G and NPT thread entry options.

What approvals does the gland carry?
The JIS standard type carries CE and REACH approvals, ensuring compliance with European safety and environmental regulations.

Choose a Marine Cable Gland That Matches Your Vessel and Environment

Selecting a marine cable gland comes down to three factors: cable diameter (match the gland size), material (match the environment), and certification (match the regulatory requirements). Contact JIXIANG for a customized solution → —their team can help you select the right JIS standard type configuration for your specific vessel or offshore installation.

JIXIANG has over 15 years of experience in waterproof cable connector manufacturing. The JIS standard type marine cable gland features brass, chromium plated construction, Metric/PG/G/NPT thread options, CE and REACH approvals, and JIS F 8801/F 8802 compliance. Available in sizes from JIS-10 to JIS-75 with cable ranges from 6mm to 70mm. Applications include shipboard electrical installations, offshore platforms, and marine equipment. JIXIANG provides comprehensive technical support, product data sheets, and after-sales service. Connect with JIXIANG to discuss your cable size requirements, material preferences, and installation environment.
