Maine Cable Gland is usually made of metal or plastic, which has the characteristics of waterproof, corrosion and high voltage resistance, and can ensure that the cable is safely and reliable in the harsh marine environment to transmit power and signals.
Inquiry Now >>

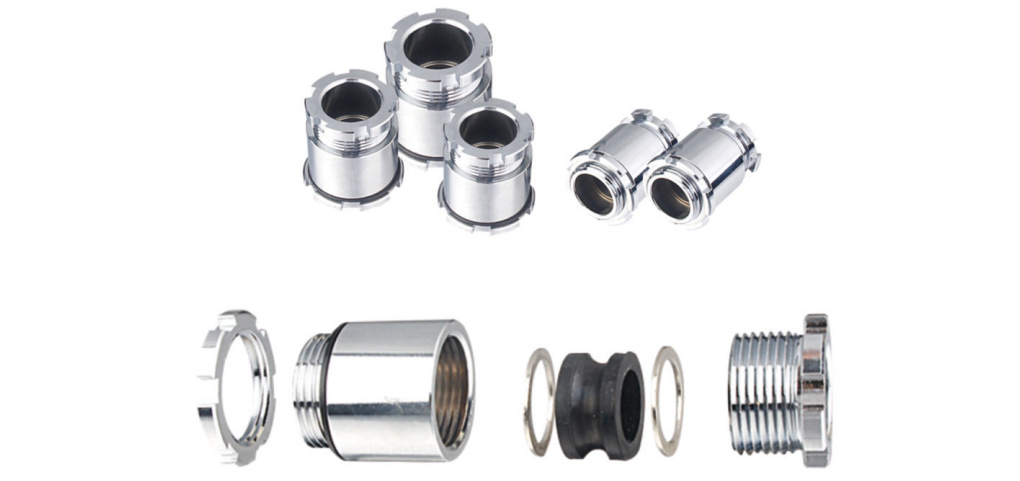

JIS standard type
Material: Brass,chromium plated
Type:JIS Standard
Entry Thread: PF
Approvals:CE,REACH
Application: For use all types of unarmoured cables.

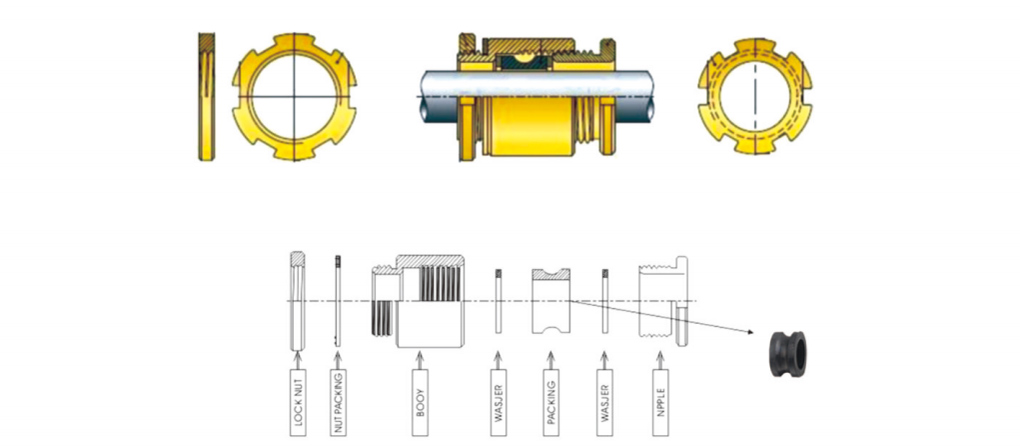

JIS standard type
|
Code |
Gland size |
Thread AG |
Packing type |
cable range(mm) |
Thread length GL (mm) |
Mounting hole diameter (mm) |
|
JX-JIS10A |
JIS-10 |
3/8" |
A |
6-7 |
11 |
18 |
|
JX-JIS10B |
B |
7-8 |
||||
|
JX-JIS15A |
JIS-15 |
1/2" |
A |
8-9 |
11 |
22 |
|
JX-JIS15B |
B |
9-10 |
||||
|
JX-JIS15C |
C |
9-11 |
||||
|
JX-JIS20A |
JIS-20 |
3/4" |
A |
11-12 |
11 |
27 |
|
JX-JIS20B |
B |
12-13 |
||||
|
JX-JIS20C |
c |
12-15 |
||||
|
JX-JIS25A |
JIS-25 |
1" |
A |
15-16 |
11 |
34 |
|
JX-JIS25B |
B |
16-18 |
||||
|
JX-JIS25C |
C |
16-20 |
||||
|
JX-JIS30A |
JIS-30 |
1-1/4" |
A |
20-22 |
12 |
43 |
|
JX-JIS30B |
B |
22-24 |
||||
|
JX-JIS30C |
C |
22-26 |
||||
|
JX-JIS35A |
JIS-35 |
1-1/2" |
A |
26-28 |
12 |
49 |
|
JX-JIS35B |
B |
28-30 |
||||
|
JX-JIS35C |
c |
26-30 |
||||
|
JX-JIS40A |
IS-40 |
A |
30-32 |
|||
|
JX-JIS40B |
B |
32-34 |
||||
|
JX-JILS40C |
C |
30-34 |
||||
|
JX-JIS45A |
JIS-45 |
2" |
A |
34-36 |
12 |
61 |
|
JX-JIS45B |
B |
36-38 |
||||
|
JX-JIS45C |
C |
36-40 |
||||
|
JX-JIS50A |
JIS-50 |
A |
40-42 |
|||
|
JX-JIS50B |
B |
42-44 |
||||
|
JX-JIS50C |
C |
40-44 |
||||
|
JX-JIS55A |
JIS-55 |
2-1/2" |
A |
44-46 |
12 |
76 |
|
JX-JIS55B |
B |
46-48 |
||||
|
JX-JIS55C |
C |
46-50 |
||||
|
JX-JIS60A |
JIS-60 |
A |
50-52 |
|||
|
JX-JIS60B |
B |
52-54 |
||||
|
JX-JIS60C |
C |
52-56 |
||||
|
JX-JIS65A |
JIS-65 |
3“ |
A |
56-58 |
14 |
89 |
|
JX-JIS65B |
B |
58-60 |
||||
|
JX-JIS70A |
JIS-70 |
A |
60-62 |
|||
|
JX-JIS70B |
B |
62-64 |
||||
|
JX-JIS75A |
JIS-75 |
A |
64-66 |
|||
|
JX-JIS75B |
B |
66-70 |
