Waterproof Breathable Vent Plug
Waterproof Breathable Vent Plug

Waterproof Breathable Vent Plug

Description
Inquiry Now >>

Product Description

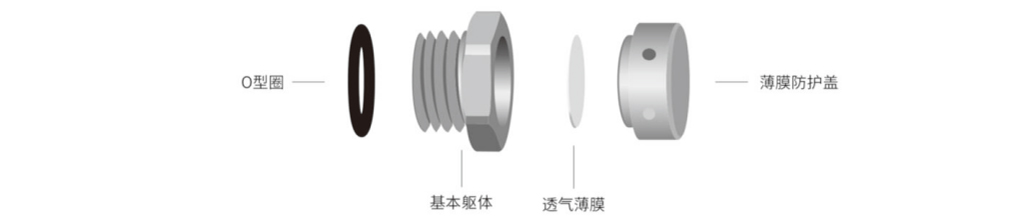

Material: Stainless Steel, Nybn Pa6 Brass nickel plated or Aluminum Matehal

Protection: The Deth of waterproof to 3-5M,The O-ring up to lp68

Waterproof level:Anti-vibration and shock tested IEC-60077-1999, according with ROHS

Color: Grey white and black color.

Temperature:-40°C to +120°C, Short time up to +150°C

Certificate: ROHS、CE

Airflow: 325ml/min (0.07 bar)

Water entry pressure: > 5bar

Function:

1.Waterproof and dustproof;

2. Vent,protect the inside equipment operation normally and long in the serious environment;

3.Heat dissipation, replace or assist in heat sink to lower inside temperature.

4.Prolong the product's service life.

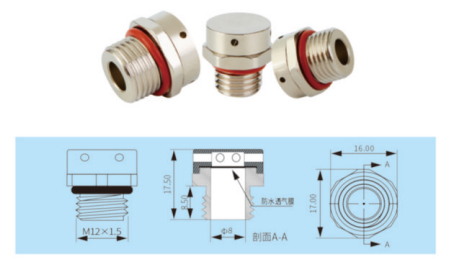

CE ROHS IP67-69 Brass Vent plug

Spec

Air permeability

Thread length

Total length

Thread diameter

spanner

M5X0.8

≥1.2L/mim/c㎡@70mbar

7mm

15mm

5mm

10mm

M6X1

≥1.2L/mim/c㎡@70mbar

7mm

15mm

6mm

10mm

M8X1.25

≥1.2L/mim/c㎡@70mbar

7mm

13mm

8mm

12mm

M12X1.5

≥1.2L/mim/c㎡@70mbar

8mm

17mm

12mm

16mm

M12X1.5

≥1.2L/mim/c㎡@70mbar

10mm

18mm

12mm

17mm

M16X1.5

≥1.2L/mim/c㎡@70mbar

10mm

19.5mm

16mm

20mm

M20X1.5

≥1.2L/mim/c㎡@70mbar

10mm

19.5mm

20mm

22mm

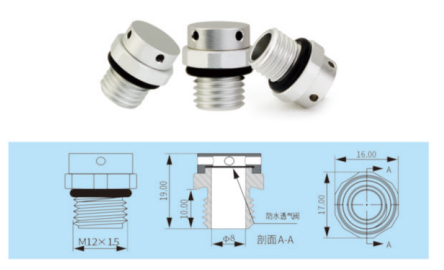

CE ROHS IP67-69 Aluminum Vent plug

Spec

Air permeability

Thread length

Total length

Thread diameter

spanner

M20X1.5

≥1.2L/mim/c㎡@70mbar

10mm

19.5mm

20mm

22mm

M24X1.5

≥1.2L/mim/c㎡@70mbar

8mm

23mm

24mm

30mm

M25X1.5

≥1.2L/mim/c㎡@70mbar

8mm

23mm

25mm

30mm

G3/8

≥1.2L/mim/c㎡@70mbar

10mm

20mm

16.6mm

22mm

Gl/4

≥1.2L/mim/c㎡@70mbar

7mm

15mm

13.3mm

17mm

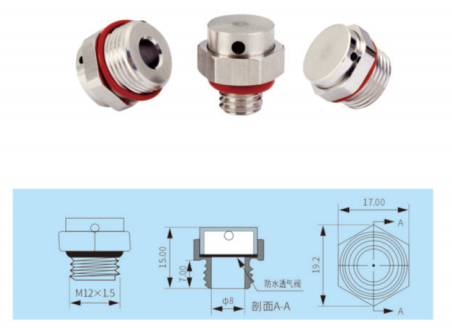

CEROHSIP67-69 Stainless steel Vent plug

Spec

Air permeability

Thread length

Total length

Thread diameter

spanner

M5X0.8

≥1.2L/mim/c㎡@70mbar

7mm

15mm

5mm

10mm

M6X1

≥1.2L/mim/c㎡@70mbar

7mm

15mm

6mm

10mm

M8X1.25

≥1.2L/mim/c㎡@70mbar

7mm

16mm

8mm

14mm

M10X1

≥1.2L/mim/c㎡@70mbar

8mm

16mm

10mm

17mm

M 10X1.5

≥1.2L/mim/c㎡@70mbar

8mm

16mm

10mm

17mm

M12X1.5

≥1.2L/mim/c㎡@70mbar

7mm

15mm

12mm

17mm

M12X1.5

≥1.2L/mim/c㎡@70mbar

10mm

18mm

12mm

17mm

M15X1.5

≥1.2L/mim/c㎡@70mbar

10mm

19.5mm

15mm

22mm

M16X1.5

≥1.2L/mim/c㎡@70mbar

10mm

19.5mm

16mm

22mm

M20X1.5

≥1.2L/mim/c㎡@70mbar

10mm

19.5mm

20mm

22mm

M 24X1.5

≥1.2L/mim/c㎡@70mbar

8mm

23mm

24mm

30mm

M25X1.5

≥1.2L/mim/c㎡@70mbar

8mm

23mm

25mm

30mm

G3/8

≥1.2L/mim/c㎡@70mbar

10mm

20mm

16.6mm

22mm

Gl/4

≥1.2L/mim/c㎡@70mbar

7mm

15mm

13.3mm

17mm

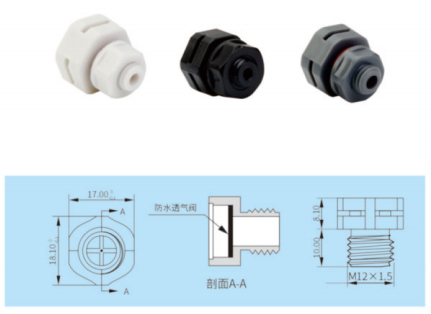

CEROHSIP67-69 Nylon Vent plug

Spec

Air permeability

Thread length

Total length

Thread diameter

spanner

M5X0.8

≥1.2L/mim/c㎡@70mbar

7mm

13mm

5mm

12mm

M6X1

≥1.2L/mim/c㎡@70mbar

7mm

13mm

6mm

12mm

M8X1.25

≥1.2L/mim/c㎡@70mbar

10mm

18mm

8mm

17mm

M10X1.5

≥1.2L/mim/c㎡@70mbar

10mm

18mm

10mm

17mm

M12X1

≥1.2L/mim/c㎡@70mbar

10mm

16mm

12mm

16mm

M12X1.5

≥1.2L/mim/c㎡@70mbar

10mm

18mm

12mm

17mm

M12X1.5

≥1.2L/mim/c㎡@70mbar

10mm

16mm

12mm

16mm

M16X1.5

≥1.2L/mim/c㎡@70mbar

10mm

19.5mm

16mm

22mm

M20X1.5

≥1.2L/mim/c㎡@70mbar

10mm

18mm

20mm

27mm

M24X1.5

≥1.2L/mim/c㎡@70mbar

15mm

24mm

24mm

36mm

M40X1.5

≥1.2L/mim/c㎡@70mbar

15mm

24mm

40mm

56mm
