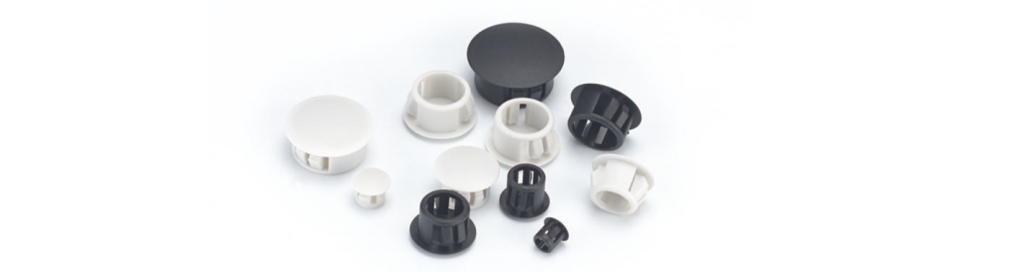

Plastic Clip
Plastic Clip

Plastic Clip

Description
Inquiry Now >>

Product Description

plastic-clip

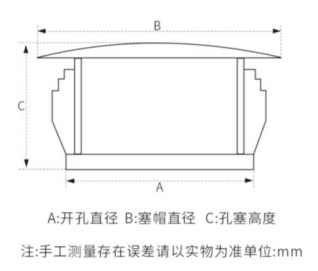

Model

A hole diameter (mm)

cable range (mm)

Outside diameter (mm)

Height (mm)

Quantity of packing



Model

A hole diameter (mm)

cable range (mm)

Outside diameter (mm) Height (mm) Quantity of packing

M5

4.8

4.8-5.5

7

7.8

1000

M20

19.7

19.7-21

23.5

10.8

1000

M6

5.8

5.9-6.2

7.8

7.9

1000

M22

21.7

21.7-23

26.5

11.6

500

M8

7.8

7.8-9.1

10.4

7.9

1000

M25

24.7

24.7-26

29

11.5

500

M10

9.8

9.8-11.1

13

10.8

1000

M28

27.6

27.6-29

34

11.3

500

Mil

10.8

10.8-12

13

10.8

1000

M30

29.7

29.7-31

34

11.3

500

M12

11.8

11.8-13

15

10.8

1000

M32

31.7

31.7-33

36.5

11.1

500

M13

12.7

12.7-13.5

17

10.8

1000

M35

34.7

34.7-36

39.7

11.5

400

M14

13.7

13.7-15

17

10.8

1000

M38

37.7

37.7-39

42.5

11.3

400

M15

14.7

14.7-16

17.7

10.8

1000

M40

39.7

39.7-42

46.3

11.5

300

M16

15.7

15.7-17

20

10.8

1000

M45

44.7

44.7-46

50.2

11.5

200

M18

17.7

17.7-19

21.7

11.1

1000

M50

49.7

49.7-51

55.3

11.5

200

M19

18.6

18.6-19.5

23.5

10.7

1000

M60

59.7

59.7-61

64.7

11.5

100



Material: Nylon pa66

Sealing material: Nitrile butadiene rubber(nbr), weathering resistance rubber(epdm)

Working temperature:-40°C to 100°C in static state, short time to 120°C;

                                   -20°C to 80°C in dynamic state, short time to 100°C

Protection degree:IP68(rotate the part, and use oring)

Color:black(ra 19005), light grey(ral7035), as well as special colors that can be designed at request
