Marine Cable Gland

Product material: D,D1 parts are made of brass chrome plated, the clamping ring is made of NBR.

Protection level: within the specified bayonet range, the rubber gasket is used to rotate the pressing head, reaching IP54.

Operating temperature: static:-40°C -110°C, maximum 120°C; dynamic:-20°C -80°C, maximum 100°C

Product certification: IP68, ISO9001JUV

Application: instrument, ship, machinery, electrical, transportation, medicine, oil field , cable fixing

Remark: can accept the special specification to make to order the business, welcome to call theletter to deign to inquire.

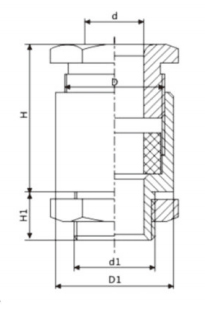

Code

Gland size

d(mm)

D(mm)

dl(mm)

Dl(mm)

H(mm)

Hl(mm)

cable range(mm)

JX-TJ8

TJ-8

8

M16*l

M14*l

20

32

9

5-7

JX-TJ13

TJ-13

13

M20*l

M18*l

24

35

10

6-12

JX-TJ16

TJ-16

16

M27*1.5

M22*1.5

31.5

40

12

11-15

JX-TJ19

TJ-19

19

M30*1.5

M27*1.5

34.5

42

12

14-18

JX-TJ24

TJ-24

24

M35*1.5

M30*1.5

39.6

44

12

17-23

JX-TJ28

TJ-28

28

M42*2

M36*1.5

46.5

46

15

22-27

JX-TJ34

TJ-34

34

M47*2

M42*2

54

49

15

26-33

JX-TJ42

TJ-42

42

M55*2

M52,2

62

54

15

32-41

JX-TJ50

TJ-50

50

M62*2

M58*2

68.5

56

15

40-49

JX-TJ58

TJ-58

58

M71*2

M68*2

77.5

56

20

48-57
