Waterproof Brass Cable Gland

Description

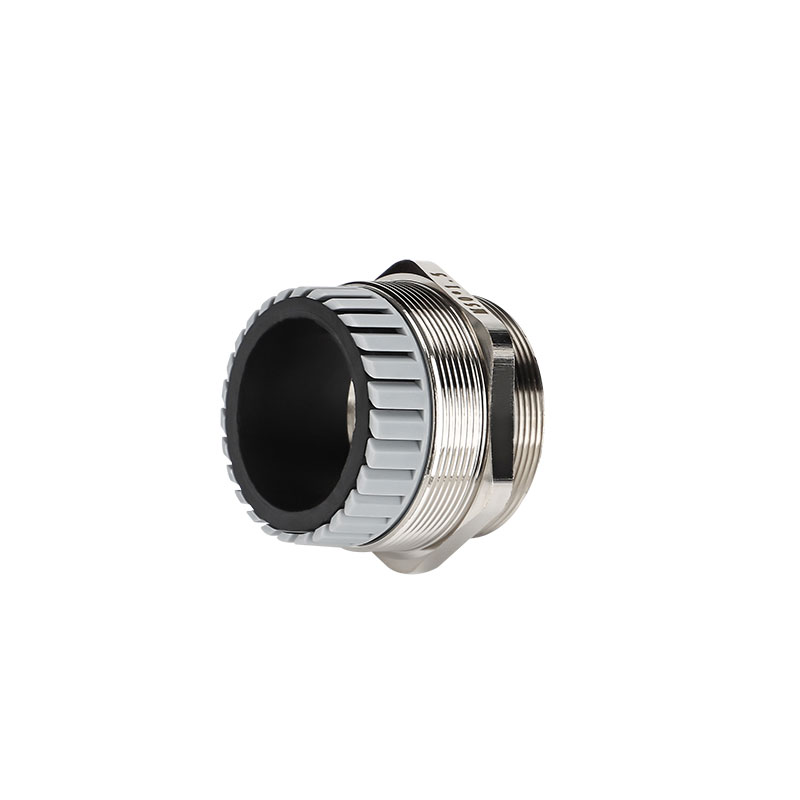

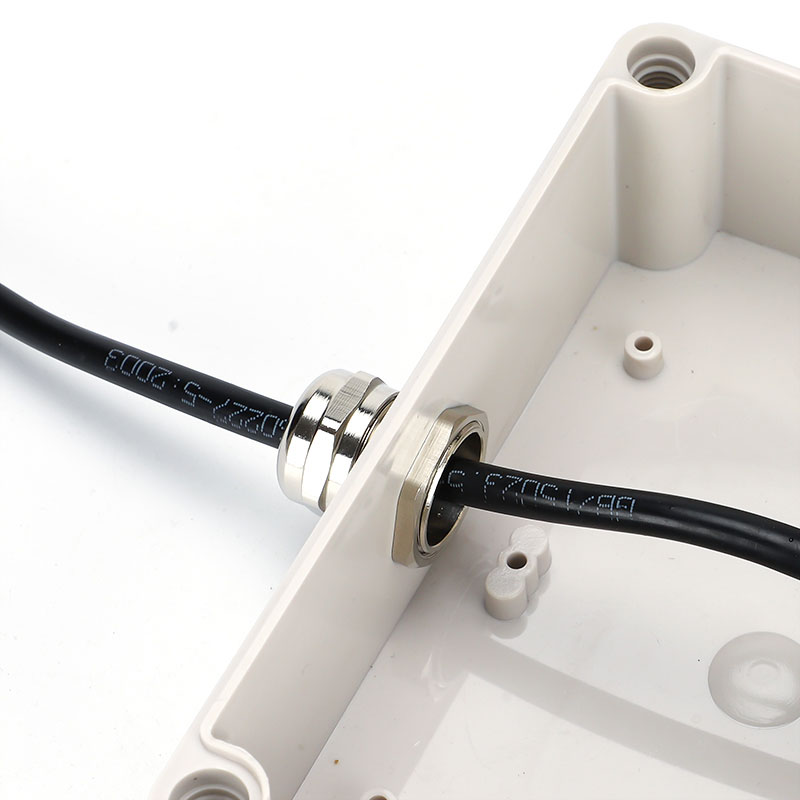

The metal cable waterproof joint is a supporting product of the cable. The joint can lock the cable, and the other end can be connected to the equipment box, or can be connected to the electric equipment with internal thread at the inlet and outlet according to the selected thread.

Inquiry Now >>

Brass Cable Gland

Thread Specification: Metric Thread

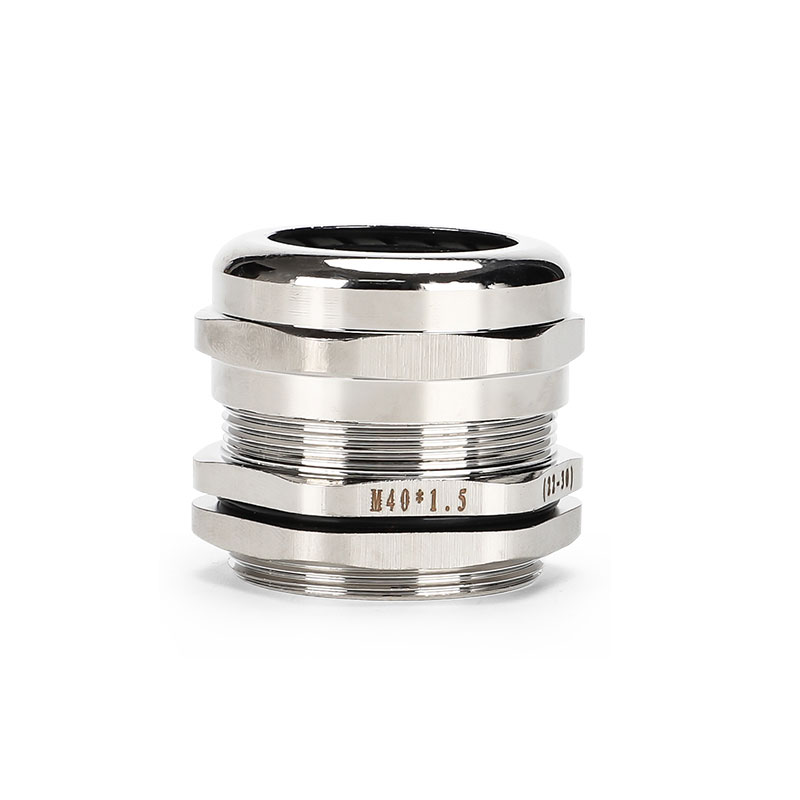

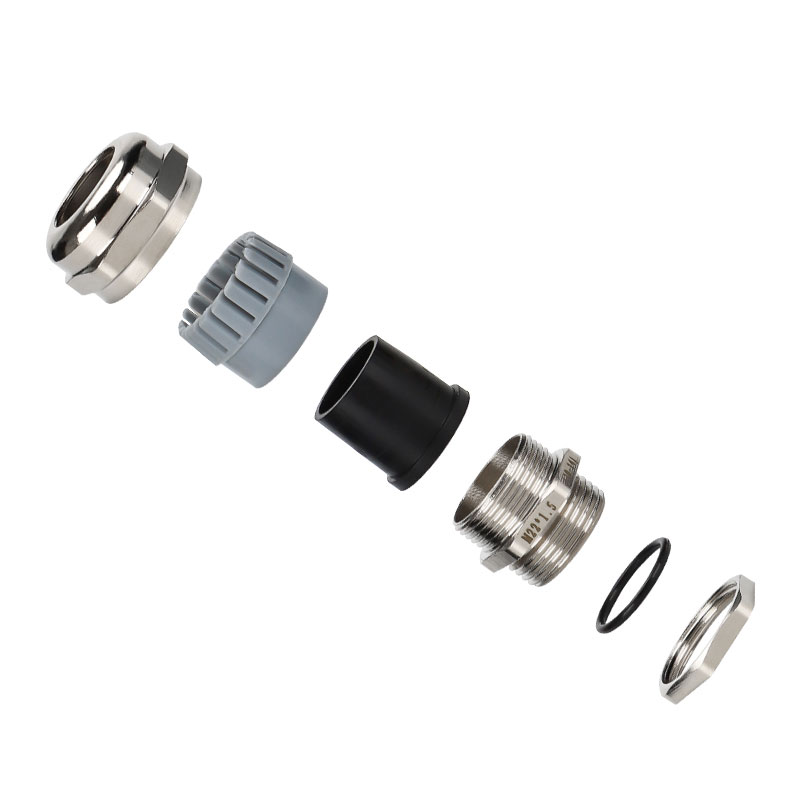

Material: The joint body parts are made of brass, the clamping part is made of plastic(PA), and the seals and O-ring are made of nitrile rubber (NBR).

Certificates: CE,IP68,ISO9001,TUV

Protection Degree: In the specific cable range, the using of O-ring helps tighten head so that to reach IP68-10 bar.

Operating temperature: Static: -40℃to 100℃, short time up to 120℃. Dynamic: -20℃to 80℃, short time up to 100℃

Thread length: The short thin thread is suitable for holes in thin board openings or devices with internal thread, while the long thread is available fro thick board. Thread extension can be customized.

Features: The cable gland is a product of large scope, strong tensile strength, waterproof, dustproof, salt, acid, alcohol, grease and common solvents resistant.

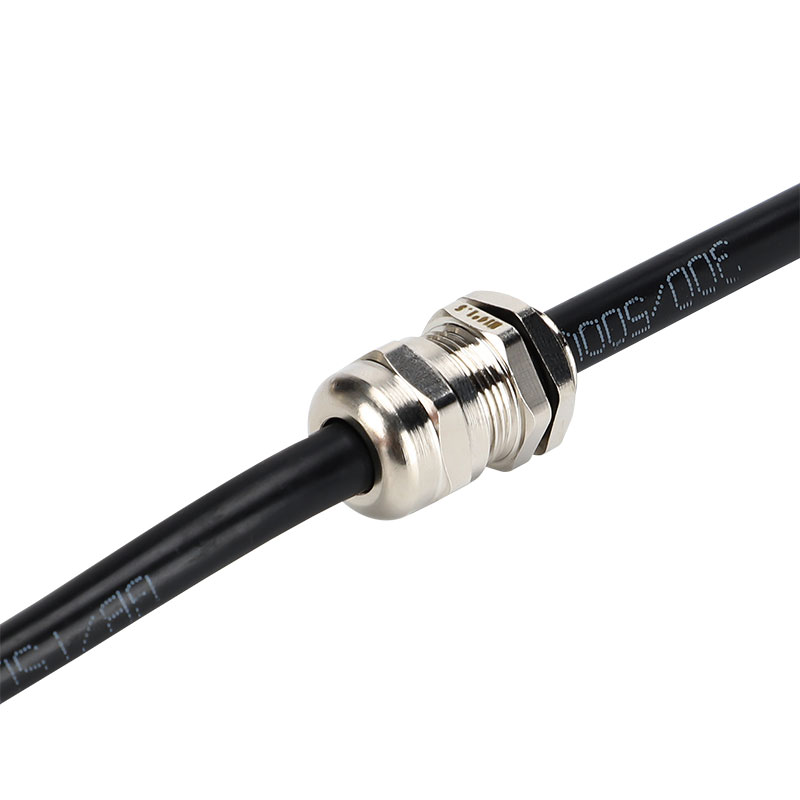

Function: Metal Cable Gland is cable supporting products, connector cable can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.

More options: Customization is acceptable. Welcome to inquire when ordering.

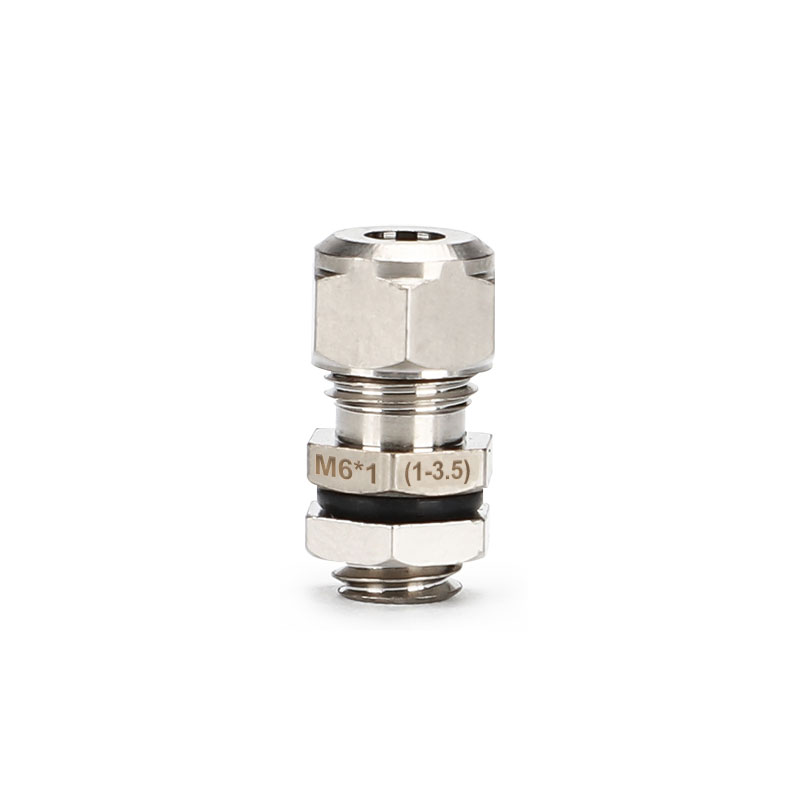

Metal Cable Gland - M Series Metric thread
Product Code	Thread AG	Applicable cable range (mm)	Thread O.D. (mm)	Mounting Hole Diameter (mm)	Thread length GL (mm)	Joint length H (mm)	Spanner Size (mm)
JX-M8-NP	M8*1	5.5-2	8	8-8.2	5	16	12
JX-M10-NP	M10*1	6.5-3	10	10-10.2	7	19	14
JX-M12-NP	M12*1.5	6.5-3	12	12-12.2	7	19	14
JX-M14-NP	M14*1.5	8-4	14	14-14.2	7	19	17
JX-M16-NP	M16*1.5	8-4	16	16-16.2	8	20	18
JX-M18-NP	M18*1.5	10-5	18	18-18.2	8	21	20
JX-M20-NP	M20*1.5	12-6	20	20-20.2	8	22	22
JX-M22-NP	M22*1.5	14-10	22	22-22.2	8	23	24
JX-M24-NP	M24*1.5	14-10	24	24-24.2	9	25	24/27
JX-M25A-NP	M25*1.5	14-10	25	25-25.2	9	25	24/27
JX-M25B-NP	M25*1.5	16-8	25	25-25.2	9	27	27
JX-M25C-NP	M25*1.5	18-13	25	25-25.2	9	27	30/27
JX-M27A-NP	M27*1.5	18-13	27	27-27.2	9	27	30
JX-M27B-NP	M27*2	18-13	27	27-27.2	9	27	30
JX-M28A-NP	M28*1.5	18-13	28	28-28.2	9	27	30
JX-M28B-NP	M28*2	18-13	28	28-28.2	9	27	30
JX-M30A-NP	M30*1.5	18-13	30	30-30.2	9	29	30/32
JX-M30B-NP	M30*2	18-13	30	30-30.2	9	29	30/32
JX-M32A-NP	M32*1.5	22-15	32	32-32.2	10	29	35
JX-M32B-NP	M32*1.5	20-16	32	32-32.2	10	29	35
JX-M32C-NP	M32*2	22-15	32	32-32.2	10	29	35
JX-M33A-NP	M33*1.5	22-15	33	33-33.2	10	29	35
JX-M33B-NP	M33*2	22-15	33	33-33.2	10	29	35
JX-M36A-NP	M36*1.5	25-18	36	36-36.2	10	31	40
JX-M36B-NP	M36*2	25-18	36	36-36.2	10	31	40
JX-M37A-NP	M37*1.5	25-18	37	37-37.2	10	31	40
JX-M37B-NP	M37*2	25-18	37	37-37.2	10	31	40
JX-M40A-NP	M40*1.5	25-18	40	40-40.2	11	31	40/45
JX-M40B-NP	M40*2	25-18	40	40-40.2	11	31	40/45
JX-M40C-NP	M40*1.5	30-22	40	40-40.2	11	35	45
JX-M40D-NP	M40*2	30-22	40	40-40.2	11	35	45
JX-M42A-NP	M42*1.5	30-22	42	42-42.2	11	35	45
JX-M42B-NP	M42*2	30-22	42	42-42.2	11	35	45
JX-M47A-NP	M47*1.5	33-25	47	47-47.2	11	37	50
JX-M47B-NP	M47*2	33-25	47	47-47.2	11	37	50
JX-M48A-NP	M48*1.5	33-25	48	48-48.2	11	37	50/52
JX-M48B-NP	M48*2	33-25	48	48-48.2	11	37	50/52
JX-M50A-NP	M50*1.5	38-32	50	50-50.2	12	37	55/57
JX-M50B-NP	M50*2	38-32	50	50-50.2	12	37	55/57
JX-M54A-NP	M54*1.5	38-32	54	54-54.2	12	38	57
JX-M54B-NP	M54*2	38-32	54	54-54.2	12	38	57
JX-M56A-NP	M56*1.5	38-32	56	56-56.2	12	38	57/59
JX-M56B-NP	M56*2	38-32	56	56-56.2	12	38	57/59
JX-M60A-NP	M60*1.5	44-37	60	60-60.2	13	38	64
JX-M60B-NP	M60*2	44-37	60	60-60.2	13	38	64
JX-M63A-NP	M63*1.5	44-37	63	63-63.2	13	38	64/68
JX-M63B-NP	M63*2	44-37	63	63-63.2	13	38	64/68
JX-M64A-NP	M64*1.5	44-37	64	64-64.2	13	38	64/68
JX-M64B-NP	M64*2	44-37	64	64-64.2	13	38	64/68
JX-M72-NP	M72*2	52-42	72	72-72.2	15	42	78
JX-M75-NP	M75*2	52-42	75	75-75.2	15	42	78
JX-M80-NP	M80*2	62-55	80	80-80.2	15	45	86/88
JX-M88-NP	M88*2	70-60	88	88-88.2	15	45	98
JX-M100-NP	M100*2	80-70	100	100-100.2	15	45	110
