Built for harsh conditions: anti‑pull double lock, reliable sealing against moisture, and acid/alkali‑proof aluminum‑nylon body. Perfect for industrial, outdoor, EV, and marine use.
| Product Name | Model specifications | Using cable diameter |
| Cable fixing flange | JX-J/27.5 | 024-028 |
| JX-J/31 | 027.5-032 | |
| JX-J/34.5 | 029.5-035.5 | |
| JX-J/38 | 032.5-039.5 | |
| JX-J/42 | 038-043.5 | |
| JX-049.5 | 034-042 | |
| JX-049.5 | 023-031 | |
| JX-049.5 | 028-035 |
Inquiry Now >>

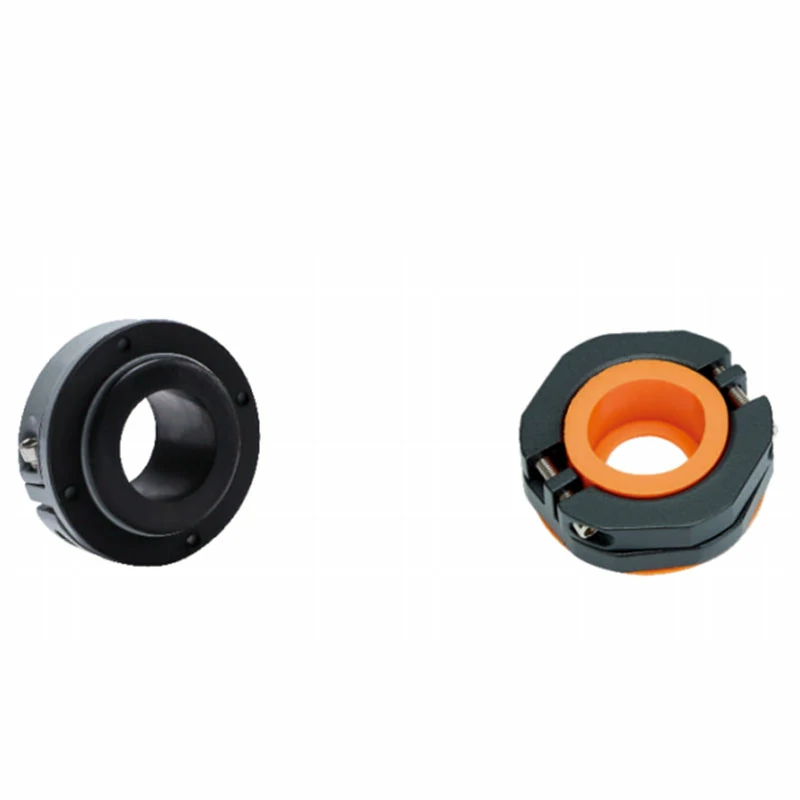

JX Productmodel:JX
Product name:Cable fixing flange
ProductMaterial:Aluminum
Surface treatment: Outdoor flat plastic powder
Productfeatures
Tensile locking
Double locking design suitable for connecting large-sized cable harnesses, with stronger
tensile strength ofjoints, plays an important role in protecting cables
Strongwaterproofing
Internal buckle design, sealing ring not easy to fix performance, strong displacement
and squeezing deviation, ensuring waterproof and fixing function
Metalcorrosionresistance
The external metal of the product is aluminum, and the internal plastic is PA nylon
during use, and durable
material, which can make the joint resistantto acid, alkaliand generalsolution corrosion
