Brass Hose Connector BH Series
Brass Hose Connector BH Series

Brass Hose Connector BH Series

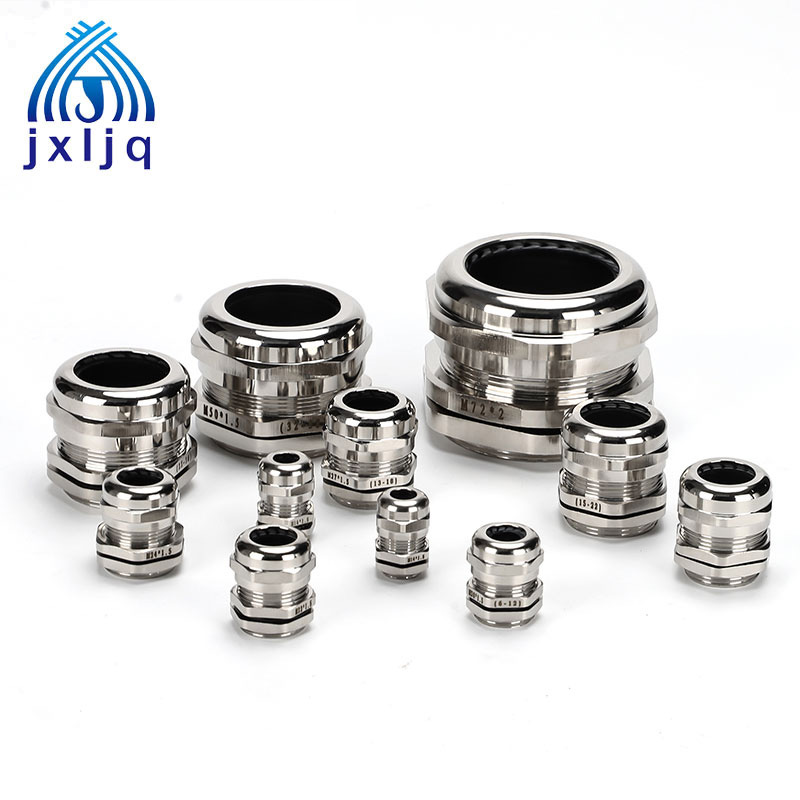

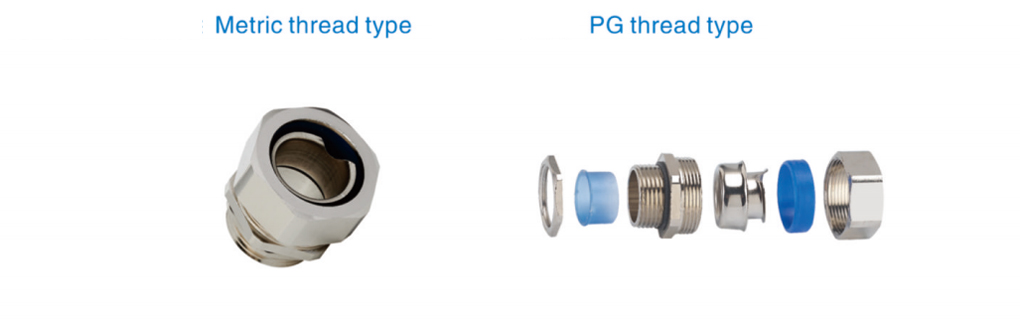

Description

The metal cable waterproof joint is a supporting product of the cable. The joint can lock the cable, and the other end can be connected to the equipment box, or can be connected to the electric equipment with internal thread at the inlet and outlet according to the selected thread.

Inquiry Now >>

Product Description

Material: external metal: nicke-plated brass;

Seal: NBR, PA6; Ferrule: brass

Sealing ring: thermoplastic elastomer or PTEE

Protection degree: IP65

Temeperature Range: Static:- 40°℃ to100°℃, Short time to 120℃

Code

Φ1 (mm)

(mm) Thread

Fits to tubing size

ΦB (mm)

c

D

SWl

SW2

JX-M10-BH

6.5

M10X1.0

AD10

19

10

31

15

17

JX-M12-BH

9.0

M12X1.5

AD14

23

10

33

19

21

JX-M16-BH

12.5

M16X1.5

AD17

27

10

33

23

25

JX-M20-BH

16.0

M20X1.5

AD21

31

10

33

27

29

JX-M25-BH

21.0

M25X1.5

AD27

39

11

41

34

36

JX-M32-BH

27.5

M32X1.5

AD36

48

13

43

43

45

JX-M40-BH

35.5

M40X1.5

AD45

57

13

43

52

54

JX-M50-BH

45.5

M50X1.5

AD56

70

14

49

63

66

JX-M63-BH

49.0

M63X1.5

AD56

70

14

49

63

66



Code

Φ1 (mm)

(mm) Thread

Fits to tubing size

ΦB (mm)

c

D

SWl

SW2

JX-PG7-BH

6.5

PG7

AD10

19

7

28

15

17

JX-PG9-BH

10.0

PG9

AD14

23

7

30

19

21

JX-PG11-BH

12.5

PG11

AD17

27

7

30

23

25

JX-PG13-BH

14.5

PG13.5

AD19

29

7

30

25

27

JX-PG16-BH

16.0

PG16

AD21

31

7

30

27

29

JX-PG21-BH

21.0

PG21

AD27

39

10

40

34

36

JX-PG29-BH

29.0

PG29

AD36

48

10

40

43

45

JX-PG36-BH

38.0

PG36

AD45

57

10

40

52

54

JX-PG48-BH

49.0

PG48

AD56

70

10

45

63

66
