Thread specification:  PG,Product material: The joint body parts are made of brass, the clamping part is made of nylon ( PA ), and the seals and O-ring are made of nitride rubber ( NBR ).
  • Waterproof Brass Cable Gland PG Thread
Inquiry
Product Description

Product Introduction

Thread specification:  PG

Product material: The joint body parts are made of brass, the clamping part is made of nylon ( PA ), and the seals and O-ring are made of nitride rubber ( NBR ).

Certificates: CE, IP68, ISO9001, TUV

Protection Degree: In the specific cable range, the using of O-ring helps tighten head so that to reach IP68-10 bar.

Working Temperature:

Satic: -40 DEG to 100 DEG C, short time of up to 120 DEG C.

Dynamic: - 20 DEG to 80 DEG C, short time of up to 100 DEG C

Thread Length: The short thread suitable for holes in thin board or equipment with inner thread, while the long thread is available for thick plate. Threaded extension can be customized.

Features: The cable gland is a product of large scope, high tensile strength, waterproof, dustproof, salt, acid and alkali resistance, alcohol, oil and solvent resistance.

Function: Waterproof metal cable gland is the product forms a complete set of the cable, connector cable can be locked, and the other end can access the devices through the box body, also can choose thread access according to the entry and outlet of the internal thread electric devices.

More options: Customization is acceptable. Welcome to inquire

       Metal cable gland - PG thread series

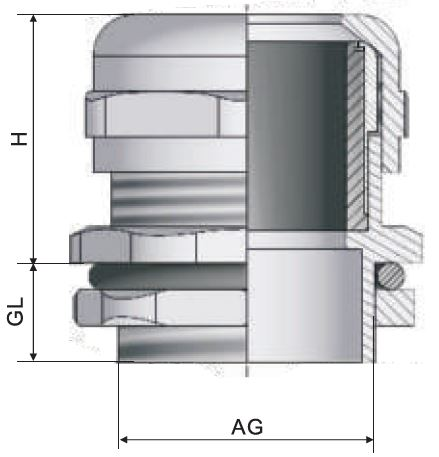

Product Code Thread specification AG Available cable range(mm) Thread O.D (mm) Mounting Hole Diamter (mm) Thread Length GL(mm) Joint Length H(mm) Spanner size (mm)
JX-PG7A-NP PG7 6.5-3 12.5 12.5-12.7 7 19 14
JX-PG7B-NP PG7 5-2 12.5 12.5-12.7 7 19 14
JX-PG9A-NP PG9 8-4 15.2 15.2-15.4 8 20 18
JX-PG9B-NP PG9 6-2 15.2 15.2-15.4 8 20 18
JX-PG11A-NP PG11 10-5 18.6 18.6-18.8 8 21 20/21
JX-PG11B-NP PG11 7-3 18.6 18.6-18.8 8 21 20/21
JX-PG13.5A-NP PG13.5 12-6 20.4 20.4-20.6 8 22 22
JX-PG13.5B-NP PG13.5 9-5 20.4 20.4-20.6 8 22 22
JX-PG16A-NP PG16 14-10 22.5 22.5-22.7 9 23 24
JX-PG16B-NP PG16 12-6 22.5 22.5-22.7 9 23 24
JX-PG19A-NP PG19 14-10 25 25-25.2 9 25 24/27
JX-PG19B-NP PG19 16-8 25 25-25.2 9 25 27
JX-PG21A-NP PG21 18-13 28.3 28.3-28.5 9 27 30/32
JX-PG21B-NP PG21 16-9 28.3 28.3-28.5 9 27 30/32
JX-PG25A-NP PG25 22-15 32 32-32.2 10 29 35
JX-PG25B-NP PG25 20-16 32 32-32.2 10 29 35
JX-PG29A-NP PG29 25-18 37 37-37.2 11 31 40
JX-PG29B-NP PG29 20-13 37 37-37.2 11 31 40
JX-PG36A-NP PG36 33-25 47 47-47.2 12 37 50
JX-PG36B-NP PG36 26-20 47 47-47.2 12 37 50
JX-PG42A-NP PG42 38-32 54 54-54.2 13 38 57
JX-PG42B-NP PG42 31-25 54 54-54.2 13 38 57
JX-PG48A-NP PG48 44-37 59.3 59.3-59.5 14 38 64
JX-PG48B-NP PG48 35-29 59.3 59.3-59.5 14 38 64
JX-PG63-NP PG63 52-42 72 72-72.2 15 42 78
