Stainless Steel Cable Gland Manufacturer
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.
Tel: +86-577-61118056
Fax: +86-577-61118055
Mobile: +86-18958708338
Email: jx@jxljq.com
product description

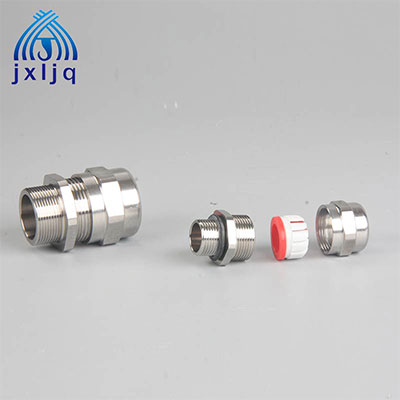

Single Sealed EX Stainless Steel Cable Gland JX8 Series
Material: SU304 for Body
Seal: High Temperature silicone
Protection Class: Within the clamping range, it can reach to AP66
Temperature Range: Min-40℃，Max 100℃, short time to 120℃
Thread Options: Metric, G
Application:
Zone 1 hazardous locations and IIA IIB IIC explosive gas atmospheres,
Electrical equipment connections, chemicals, petroleum, various sectors of electricity, light industry, machinery, etc, especially for automatic engineering line installation.
Ex Degreea; Exd II C Gb/Ex e II GB
Ex Degree Certificate: CNE x 14.1625X.

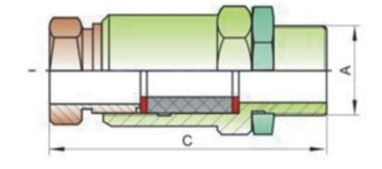

Single Sealed Ex Stainless Steel JX8 - Metric, G Thread
| Code | AG Thread | Cable Range (mm) | Armor | Braid | H (mm) | GL (mm) | Spanner Size (mm) | Std. Pkg (pcs) | ||
| Metric | G | Outer | Inner | Size | Size | |||||
| JX-8-EXS-12 | M16*1.5 | 3/8’’ | Φ6-12 | Φ4-10 | 0.9/1.25 | 0/0.7 | 30 | 15 | 24 | 50 |
| JX-8-EXS-16A | M20*1.5 | 1/2’’ | Φ10-16 | Φ8-13 | 0.9/1.25 | 0/0.7 | 30 | 15 | 24 | 50 |
| JX-8-EXS-16B | M22*1.5 | 1/2’’ | Φ10-16 | Φ8-13 | 0.9/1.25 | 0/0.7 | 30 | 15 | 24 | 50 |
| JX-8-EXS-16C | M24*1.5 | 1/2’’ | Φ14-16 | Φ12-16 | 0.9/1.25 | 0/0.7 | 32 | 15 | 30 | 50 |
| JX-8-EXS-18 | M25*1.5 | 3/4’’ 1’’ | Φ14-18 | Φ12-16 | 1.25/1.6 | 0/0.7 | 35 | 15 | 40 | 50 |
| JX-8-EXS-23 | M30*1.5 | 1’’11/4’’ | Φ17-23 | Φ15-21 | 1.6/2.0 | 0.6/1.2 | 39 | 15 | 46 | 50 |
| JX-8-EXS-27A | M32*1.5 | 1’’11/4’’ | Φ22-27 | Φ20-25 | 1.6/2.0 | 0.6/1.2 | 39 | 15 | 46 | 50 |
| JX-8-EXS-27B | M36*2.0 | 1’’11/4’’ | Φ22-27 | Φ20-25 | 1.6/2.0 | 0.6/1.2 | 39 | 15 | 55 | 50 |
| JX-8-EXS-33A | M40*1.5 | 11/2’’ | Φ26-33 | Φ24-31 | 1.6/2.0 | 0.6/1.2 | 43 | 15 | 55 | 50 |
| JX-8-EXS-33B | M48*2.0 | 11/2’’ | Φ26-33 | Φ24-31 | 1.6/2.0 | 0.6/1.2 | 43 | 15 | 55 | 50 |
| JX-8-EXS-41 | M50*1.5 | 11/2’’ 2’’ | Φ32-41 | Φ27-35 | 1.6/2.0 | 0.6/1.2 | 48 | 15 | 65 | 50 |
| JX-8-EXS-49 | M56*2.0 | 2’’ | Φ40-49 | Φ35-43 | 1.6/2.0 | 0.6/1.2 | 48 | 20 | 65 | 50 |
| JX-8-EXS-57A | M63*1.5 | 21/2’’ | Φ48-57 | Φ42-50 | 1.8/2.5 | 0.6/1.2 | 53 | 20 | 80 | 50 |
| JX-8-EXS-57B | M64*2.0 | 21/2’’ | Φ48-57 | Φ42-50 | 1.8/2.5 | 0.6/1.2 | 53 | 20 | 80 | 50 |
| JX-8-EXS-68 | M75*1.5 | 3’’ | Φ54-68 | Φ45-58 | 1.8/2.5 | 1.0/1.5 | 58 | 20 | 96 | 50 |
| JX-8-EXS-79 | M87*1.5 | 3’’ | Φ67-79 | Φ56-67 | 1.8/2.5 | 1.0/1.5 | 64 | 20 | 114 | 20 |
| JX-8-EXS-89 | M100*1.5 | 4’’ | Φ78-89 | Φ65-75 | 1.8/2.5 | 1.0/1.5 | 70 | 20 | 138 | 10 |

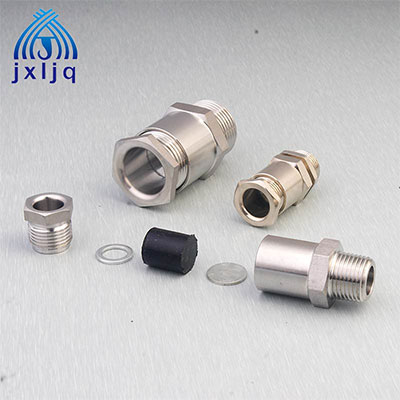

Ex Clamp Sealing Joint JX4 Series
Material: H62, SS304, 316
Surface Treatment: Nickel Plating
Sealing Material: silastic, Neoprene
Explosion-proof Mark: Exd II
Protection Grade: IP66-10 Bars, (screwed – on part)
Working Temperature:
Static from -40°C to 100°C, short time to 120°C
Dynamic from -20°C to 80°C, short time to 100 without halide
Environmental Conditions: High-temperature and atrocious.
Note: The above mentioned is only used for the specification of pipe thread, thread specification for metric or NPT can be produced.
