product description

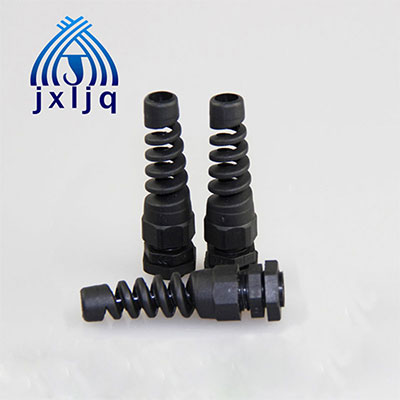

Nylon Gland With Strain Relief Metric Thread

Nylon Gland supplier_Nylon Gland

Nylon Gland With Strain Relief Metric Thread are manufactured with UL approved - nylon PA66 for ACF parts, flammability UL94V-2. Accepts flammability UL V-0, EPDM rubber for B.D parts. Accepted to make super rubber: high temperature resistant rubber, resistant to strong acid / alcohol.

Product Certification: CE certification, ROHS certification and ISO9001.

Protection Degree: IP68- 10 BAR

Working temperature:  -40℃to 100℃ in static state, or instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state, or instantaneous heat resistance up to 100℃.

Characteristics: IP68 (Rptate the part and use O ring)

Colors: Black (RAL9005),Gray(RAL7035), other colors are available upon requests.

Function:

1. Can be used in liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.

2.Use to positively bond the conduit to a box or enclosure.

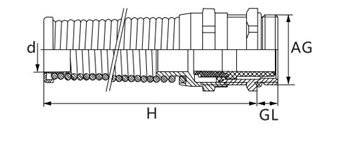

The Drawing of Flexible Cable Gland:

Nylon Gland supplier_Nylon Gland drawing

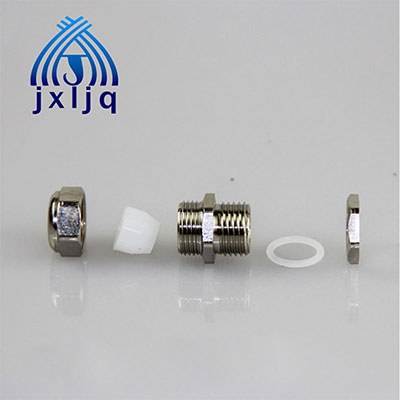

Brass Cable Gland Silicon Rubber Insert Type

Nylon Gland supplier_Brass Cable Gland Silicon Rubber Insert Type

Material: Nickel-plated brass

Clamping ring: Silicon Rubber

Seal ring: Silicon Rubber

Certificate: CE,ISO9001,IP68,TUV

Operating temperature: - 60 °C to +250 °C

Applications: Applicable for control motor, launch motors, lighting equipment, refrigeration and air conditioning, household appliances, measuring machinery and equipment, automotive / marine equipment with access, communication equipment, and outdoor projects connected with the wire or cable and other harsh environments.

Metal Cable Gland - Silicone Series

Product Code Thread AG Applicable cable range(mm) Thread O.D.(mm) Mounting Hole Diameter(mm) Thread length GL(mm) Joint length H(mm) Spanner Size (mm)
JX-M8-Sl M8*1 5.5-2 8 8-8.2 5 16 12
JX-M12A-Sl M12*1 6.5-3 12 12-12.2 7 19 14
JX-M12B-Sl M12*1.25 43680 12 12-12.2 7 16 16
JX-M12C-Sl M12*1.5 43680 12 12-12.2 7 16 16
JX-M14-Sl M14*1.5 43680 14 14-14.2 7 16 16
JX-M16-Sl M16*1.5 43712 16 16-16.2 8 20 20/18
JX-M18-Sl M18*1.5 43712 18 18-18.2 8 20 20




Company Profile

YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.

To create a better brand image, JIXAING takes good faith for the business, keeps innovative through development and completely implements good service. Strongly believe that our company will be presented itself as a brand-mew image among the enterprises in our country or even in the world.

Tel: +86-577-61118056

Fax: +86-577-61118055

Mobile: +86-18958708338

Email: jx@jxljq.com
