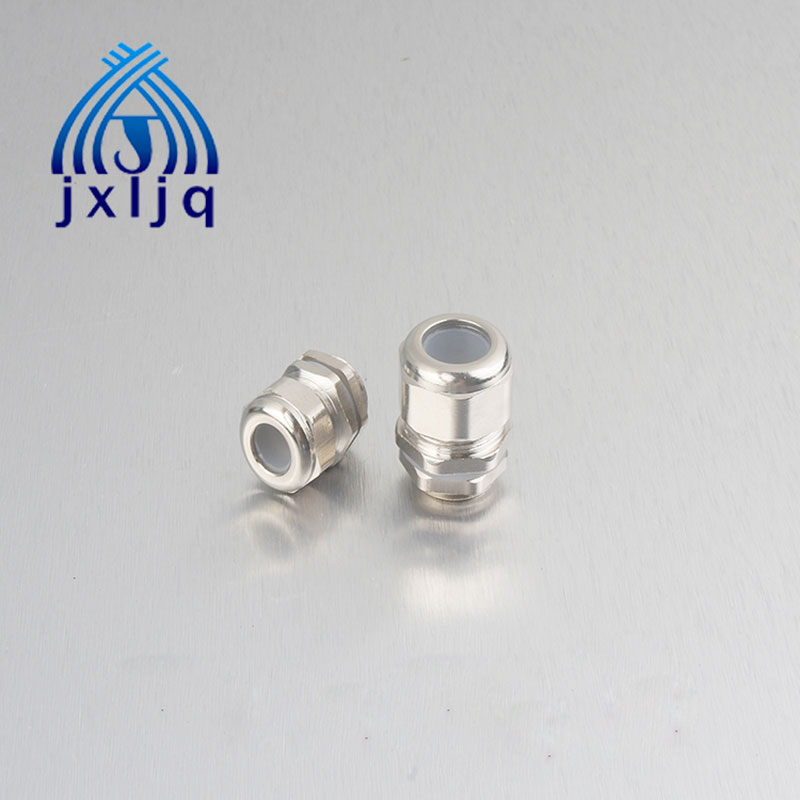

Brass Cable Gland Silicon Rubber Insert Type

Description
Inquiry Now >>

Product Description

Material: Nickel-plated brass

Clamping ring: Silicon Rubber

Seal ring: Silicon Rubber

Certificate: CE,ISO9001,IP68,TUV

Operating temperature: - 60 °C to +250 °C

Applications: Applicable for control motor, launch motors, lighting equipment, refrigeration and air conditioning, household appliances, measuring machinery and equipment, automotive / marine equipment with access, communication equipment, and outdoor projects connected with the wire or cable and other harsh environments.

Metal Cable Gland - Silicone Series
Product Code Thread AG

Applicable

cable range

(mm)

Thread O.D.

(mm)

Mounting

Hole Diameter

(mm)

Thread length GL

(mm)

Joint length H

(mm)

Spanner Size

(mm)

JX-M8-Sl M8*1 5.5-2 8 8-8.2 5 16 12
JX-M12A-Sl M12*1 6.5-3 12 12-12.2 7 19 14
JX-M12B-Sl M12*1.25 8-3 12 12-12.2 7 16 16
JX-M12C-Sl M12*1.5 8-3 12 12-12.2 7 16 16
JX-M14-Sl M14*1.5 8-3 14 14-14.2 7 16 16
JX-M16-Sl M16*1.5 9-4 16 16-16.2 8 20 20/18
JX-M18-Sl M18*1.5 9-4 18 18-18.2 8 20 20

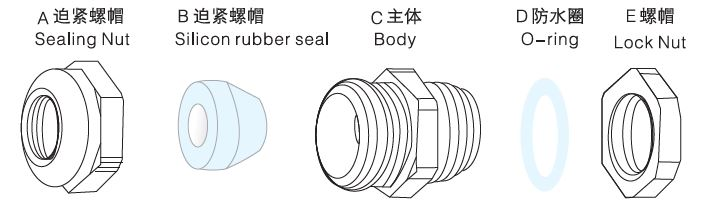

Brass Cable Gland Silicon Rubber Insert Type

Brass Cable Gland Silicon Rubber Insert Type
