Nylon Cable Gland Supplier Recommend
Company Profile
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Tel: +86-577-61118056
Fax: +86-577-61118055
Mobile: +86-18958708338
Email: jx@jxljq.com
product description

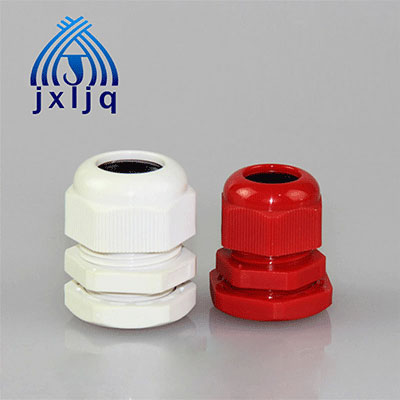

Nylon Cable Gland Standard M Thread
Thread Size: Metric Thread
Material: Adopting nylon PA66 certificated by UL.
Weather Strip: Nitrile butadience rubber(NBR), Weathering resistance rubber(EPDM)
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature:
-40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: IP68 (Rptate the part and use O ring)
Colors: Black (RAL9005),Gray(RAL7035), other colors are available upon requests.
The Drawing of Nylon Cable Gland:

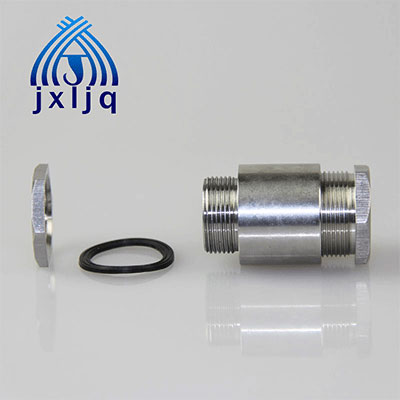

Thread Size: TJ
Material: Brass, chromium plated
Product Certification: CE certificationand ISO9001.
Protection Degree: IP54
Working temperature: -40℃to 110℃, short time up to 120℃.
Function:
Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.
Technical Parameter:
| Product Code | Cable Range (mm) | d (mm) | D (mm) | d1(mm) | D1(mm) | H1(mm) | H(mm) |
| JX-TJ8 | 5-7 | 8 | M16*1 | M14*1 | 20 | 9 | 32 |
| JX-TJ13 | 6-12 | 13 | M20*1 | M18*1 | 24 | 10 | 35 |
| JX-TJ16 | 11-15 | 16 | M27*1.5 | M22*1.5 | 31.5 | 12 | 40 |
| JX-TJ19 | 14-18 | 19 | M30*1.5 | M27*1.5 | 34.5 | 12 | 42 |
| JX-TJ24 | 17-23 | 24 | M35*1.5 | M30*1.5 | 39.6 | 12 | 44 |
| JX-TJ28 | 22-27 | 28 | M42*2 | M36*1.5 | 46.5 | 15 | 46 |
| JX-TJ34 | 26-33 | 34 | M47*2 | M42*2 | 54 | 15 | 49 |
| JX-TJ42 | 32-41 | 42 | M55*2 | M52*2 | 62 | 15 | 54 |
| JX-TJ50 | 40-49 | 50 | M62*2 | M58*27 | 68.5 | 15 | 56 |
| JX-TJ58 | 48-57 | 58 | M71*2 | M68*2 | 77.5 | 20 | 56 |

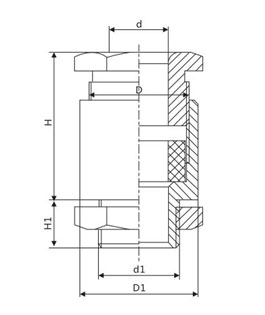

The Drawing of Marine Cable Gland:
