product description

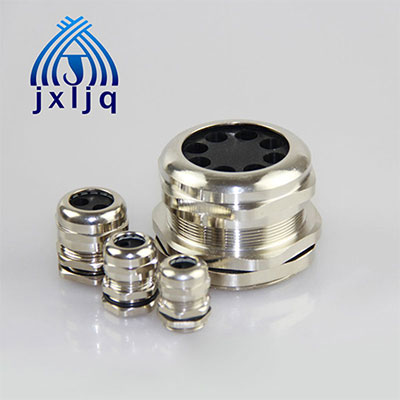

        Multiple Cable Gland 2-8 Holes- Metric,PG,GThread

Multiple Cable Gland supplier_Multiple Cable Gland 2-8 Holes

Thread Size: Metric Thread, PG, G thread

Material: The joint parts are made of nickel plated brass, the clamping parts are made of plastic (PA) , and the seals and O-ring are made of  nitrile rubber (NBR) .

Product Certification: CE, ROHS, IP68 and ISO9001

Protection degree: in the specific cable range, the using of the O-ring helps tighten head, so that reach to IP68-10 bar pressure.

Colors: Metallic

Working temperature:

Static: -40℃ to 100℃, short time up to 120℃.

Dynamic: -20℃ to 80℃, short time up to 100℃

Characteristic: The cable gland is a product of large scope, high tensile strength, waterproof, dust-proof, salt, acid, alcohol, oil and solvent resistant.

Variety of outlet holes: There are 2-8 holes designed for outlet cable, so that each cable to get the best water-proof insulation, and not intertwined.

Note: For more holes, please specify the relevant parameters, such as: model specification, the cable diameter, number of holes and so on.

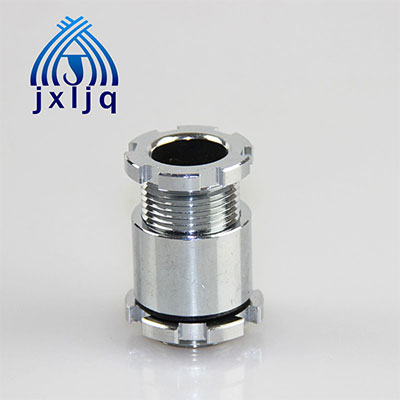

                       Marine Cable Gland - JIS Type

Multiple Cable Gland supplier_Marine Cable Gland - JIS Type

Thread Size: JIS

Material: Brass, chromium plated

Product Certification: CE certificationand ISO9001.

Protection Degree: IP54

Working temperature:  -40℃ to 110℃, short time up to 120℃.

Function: Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.

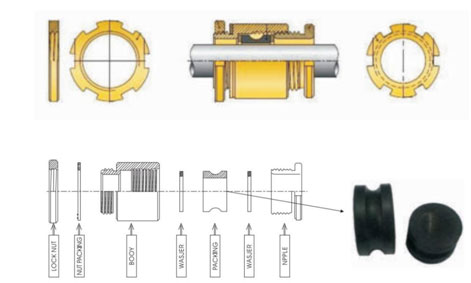

The Drawing of Marine Cable Gland:

Multiple Cable Gland supplier_Marine Cable Gland - JIS Type drawing
