Marine Cable Gland - JIS Type

Marine Cable Gland - JIS Type

Products
Thread Size: JIS
Material: Brass, chromium plated
Product Certification: CE certificationand ISO9001.
Protection Degree: IP54
  • Marine Cable Gland - JIS Type
Inquiry
Product Description

Products

Thread Size: JIS

Material: Brass, chromium plated

Product Certification: CE certificationand ISO9001.

Protection Degree: IP54

Working temperature:  -40℃to 110℃, short time up to 120℃.

Function: Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.

More options: Customization is acceptable.Welcome to inquire.

Marine Stuffing Box- JIS Clamping Type
Product Code Thread AG Packing Type Cable Range (mm) Thread Length GL(mm) Mounting Hole Dia (mm)
JX-JIS10A 3/8’’ A 6-7 11 18
JX-JIS10B B 7-8
JX-JIS15A 1/2’’ A 8-9 11 22
JX-JIS15B B 9-10
JX-JIS15C C 9-11
JX-JIS20A 3/4’’ A 11-12 11 27
JX-JIS20B B 12-13
JX-JIS20C C 12-15
JX-JIS25A 1’’ A 15-16 11 34
JX-JIS25B B 16-18
JX-JIS25C C 16-20
JX-JIS30A 1-1/4’’ A 20-22 12 43
JX-JIS30B B 22-24
JX-JIS30C C 22-26
JX-JIS35A 1-1/2’’ A 26-28 12 49
JX-JIS35B B 28-30
JX-JIS35C C 26-30
JX-JIS40A A 30-32
JX-JIS40B B 32-34
JX-JIS40C C 30-34
JX-JIS45A 2’’ A 34-36 12 61
JX-JIS45B B 36-38
JX-JIS45C C 36-40
JX-JIS50A A 40-42
JX-JIS50B B 42-44
JX-JIS50C C 40-44
JX-JIS55A 2-1/2’’ A 44-46 12 76
JX-JIS55B B 46-48
JX-JIS55C C 46-50
JX-JIS60A A 50-52
JX-JIS60B B 52-54
JX-JIS60C C 52-56
JX-JIS65A 3’’ A 56-58 14 89
JX-JIS65B B 58-60
JX-JIS70A A 60-62
JX-JIS70B B 62-64
JX-JIS75A A 64-66
JX-JIS75B B 66-70

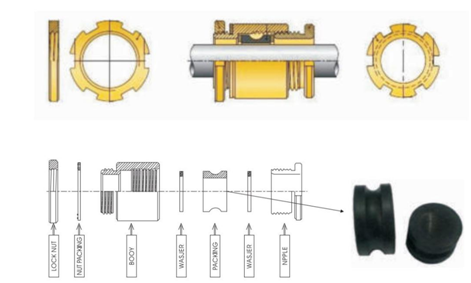

The Drawing of Marine Cable Gland:
