Marine Cable Gland Supplier Recommend
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Tel: +86-577-61118056
Fax: +86-577-61118055
Mobile: +86-18958708338
Email: jx@jxljq.com

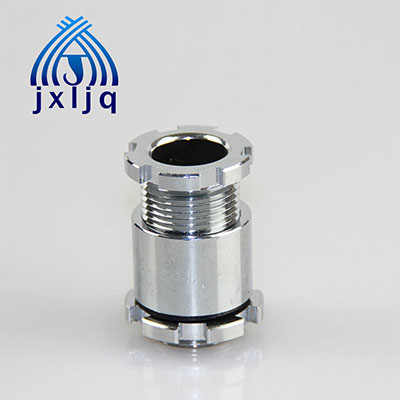

product description
Thread Size: JIS
Material: Brass, chromium plated
Product Certification: CE certificationand ISO9001.
Protection Degree: IP54
Working temperature: -40℃to 110℃, short time up to 120℃.
Function:
Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.

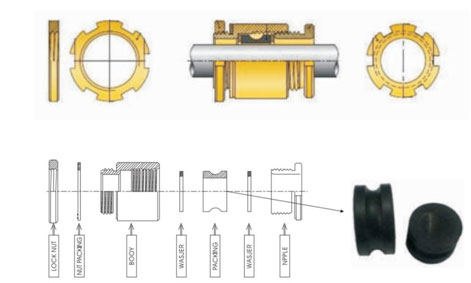

The Drawing of Marine Cable Gland:

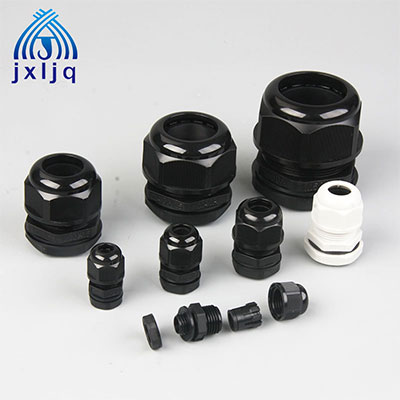

Nylon Cable Gland Divided Structure G Thread
Thread Size: G Thread
Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.E.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature:
-40℃ to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃ to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics:
The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.
Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.
Technical Parameter:
| 型号 | D1 | mm | D2 | B1 | L1 | L2 | L3 |
| M12X1.5 | 12 | 1.25 | 8.3 | 6 | 7.9 | 12.1 | 53.3 |
| M16X1.5 | 16 | 1.5 | 10.9 | 9.6 | 14.4 | 14.4 | 74.4 |
| M20X1.5 | 20 | 1.5 | 14.8 | 14.5 | 12.8 | 19.5 | 96.2 |
| M25X1.5 | 25 | 1.5 | 18.5 | 16.5 | 13.9 | 19.5 | 111.2 |
| PG-7 | 12.2 | 8 | 6 | 8 | 12.8 | 53.3 | |
| PG-9 | 15 | 9.9 | 7 | 8.1 | 13.9 | 62.5 | |
| PG-11 | 18.2 | 13.2 | 9.6 | 8.2 | 15.4 | 74.9 | |
| PG-13.5 | 20.2 | 15.2 | 11.7 | 8.9 | 15.8 | 85.5 | |
| PG-16 | 22.2 | 17.2 | 14.5 | 8.9 | 17.3 | 96.2 | |
| PG-21 | 28.1 | 22.4 | 16.5 | 10.8 | 18.6 | 111.2 |

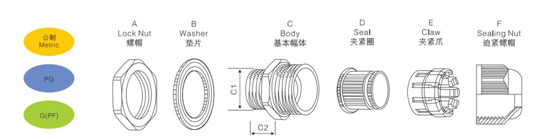

The Drawing of Divided Structure Nylon Cable Gland:
