Marine Cable Gland Manufacturer Introduction

DateTime :    Vist : 24

Company Profile

YUEQING JIXIANG CONNECTOR CO.,LTD  is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.

Tel: +86-577-61118056

Fax: +86-577-61118055

Mobile: +86-18958708338

Email: jx@jxljq.com



Product Description

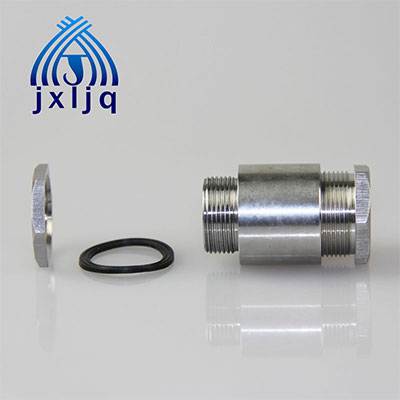

Marine Cable Gland TJ Type

Marine Cable Gland Manufacturer Introduction_Marine Cable Gland

Thread Size: TJ

Material: Brass, chromium plated

Product Certification: CE certificationand ISO9001.

Protection Degree: IP54

Working Temperature:  -40℃to 110℃, short time up to 120℃.

Function: Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.

Technology Parameters:

Product Code Cable Range (mm) d (mm) D (mm) d1(mm) D1(mm) H1(mm) H(mm)
JX-TJ8 5-7 8 M16*1 M14*1 20 9 32
JX-TJ13 6-12 13 M20*1 M18*1 24 10 35
JX-TJ16 11-15 16 M27*1.5 M22*1.5 31.5 12 40
JX-TJ19 14-18 19 M30*1.5 M27*1.5 34.5 12 42
JX-TJ24 17-23 24 M35*1.5 M30*1.5 39.6 12 44
JX-TJ28 22-27 28 M42*2 M36*1.5 46.5 15 46
JX-TJ34 26-33 34 M47*2 M42*2 54 15 49
JX-TJ42 32-41 42 M55*2 M52*2 62 15 54
JX-TJ50 40-49 50 M62*2 M58*27 68.5 15 56
JX-TJ58 48-57 58 M71*2 M68*2 77.5 20 56

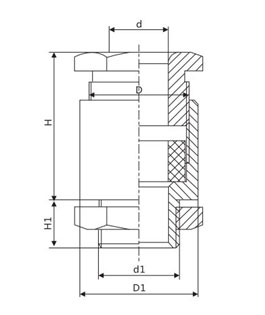

The Drawing Of Marine Cable Gland:

Marine Cable Gland Manufacturer Introduction_Marine Cable Gland Drawing

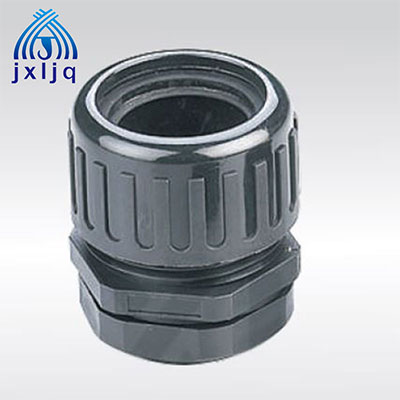

Nylon Conduit Fitting

Marine Cable Gland Manufacturer Introduction_Nylon Conduit Fitting

Material: UL approved Nylon PA66 ( Flammability UL 94V-2) for A.C.F parts; (accept to make flammability UL V-0).

EPDM Rubber for B.D parts; (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali, etc).

Protection Degree: IP68-10 BAR

Working temperature: -40°C to 100°C in static state, or instantaneous heat resistance up to 120°C, -20°C to 80°C in dynamic state, or instantaneous heat resistance up to 100°C.

Thread: Metric, PG and G Thread

Features: The Powerful Watertight Fitting build the best tightening power by a very high and active compression force to resist the ingress of high pressure water jet for any angle which can provide 100% dynamic waterproof and airtight performance over the widest range of corrugated tubing.

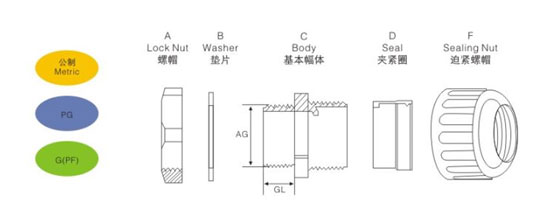

The drawing:

Marine Cable Gland Manufacturer Introduction_ Conduit Fitting Drawing
