Clamp Sealing Joint Supplier Introduction

YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

Tel: +86-577-61118056

Fax: +86-577-61118055

Mobile: +86-18958708338

Email: jx@jxljq.com

product description

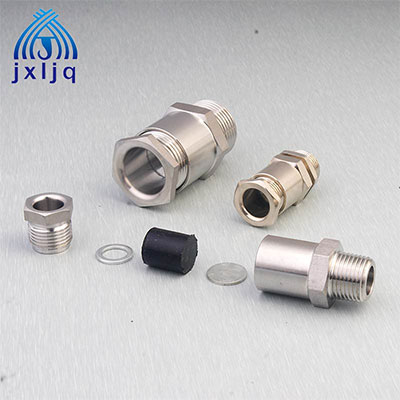

                     Ex Clamp Sealing Joint JX4 Series

Material: H62, SS304, 316

Surface Treatment: Nickel Plating

Sealing Material: silastic, Neoprene

Explosion-proof Mark: Exd II

Protection Grade: IP66-10 Bars, (screwed – on part)

Working Temperature:

Static from -40°C to 100°C, short time to 120°C

Dynamic from -20°C to 80°C, short time to 100 without halide

Environmental Conditions: High-temperature and atrocious.

Note: The above mentioned is only used for the specification of pipe thread, thread specification for metric or NPT can be produced.

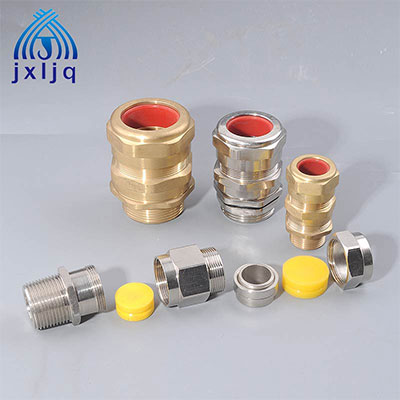

                   Ex Standard Cable Gland JX6 Series

Material: Brass or stainless steel, brass with nickel plated

Cable: With packing seal

Protection Class: IP66

Explosion Mark: Exd II

Features:

With quick installation, safety, reliability and other characteristics of good protection.

1. It is Made of copper or stainless steel material;

2. Cable is sealed with gasketing;

3. With reliable installation, good protection and explosion-proof function;

4. Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored  cable, it is cable core and enclosure gas sealing protection most be lP66

Function: Suitable for clamping and fixing various types of armored cable.

1. Can be used in Hazardous division 1&2;

2. Can be used in Explosive gas atmosphere;

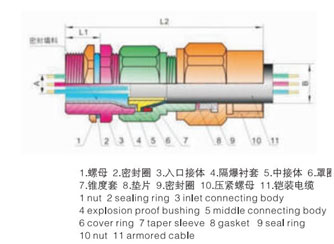

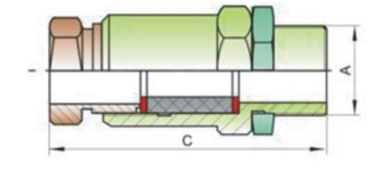

The Drawing:
