Material: Brass or stainless steel, brass with nickel plated
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II
Features:
With quick installation, safety, reliability and other characteristics of good protection.
1. It is Made of copper or stainless steel material;
2. Cable is sealed with gasketing;
3. With reliable installation, good protection and explosion-proof function;
4. Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored cable, it is cable core and enclosure gas sealing protection most be lP66
Function: Suitable for clamping and fixing various types of armored cable.
1. Can be used in Hazardous division 1&2;
2. Can be used in Explosive gas atmosphere;
JX6 DOES NOT HAVE cover ring (6).

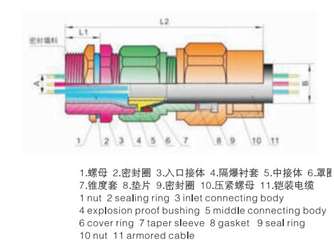

The Drawing:
| EX Standard Cable Gland JX6 Series - Metric, G Thread | ||||||
| Product Code | Thread AG | Outer Diameter of Cable (mm) | Thread length L1(mm) | Length L (mm) | ||
| Outlet A | Incoming Line B | |||||
| JX-6-EX-15A | M16*1.5 | - | 43228 | 43296 | 15 | 67 |
| JX-6-EX-15B | M20*1.5 | G1/2 | 43232 | 43327 | 15 | 67 |
| JX-6-EX-20 | M25*1.5 | G3/4 | 43329 | 43424 | 15 | 71 |
| JX-6-EX-27 | M32*1.5 | G1 | 43426 | 14-27 | 17 | 76 |
| JX-6-EX-33 | M40*1.5 | G1 1/4 | 14-28 | 19-33 | 17 | 76 |
| JX-6-EX-40 | M50*1.5 | G1 1/2 | 16-33 | 22-40 | 17 | 94 |
| JX-6-EX-50 | M63*1.5 | G2 | 29-43 | 29-50 | 17 | 98 |
| JX-6-EX-63 | M75*1.5 | G2 1/2 | 38-57 | 35-63 | 17 | 112 |
| JX-6-EX-77A | M85*1.5 | G3S | 38-72 | 41-77 | 18 | 114 |
| JX-6-EX-77B | M90*1.5 | G3 | 38-72 | 41-77 | 18 | 126 |
| JX-6-EX-83 | M100*1.5 | G4S | 48-83 | 55-90 | 18 | 126 |
| JX-6-EX-94 | M110*1.5 | G4 | 48-94 | 61-104 | 18 | 128 |
