Clamp Sealing Joint Supplier

product description

Clamp Sealing Joint Supplier_EX Clamp Sealing Joint JX3

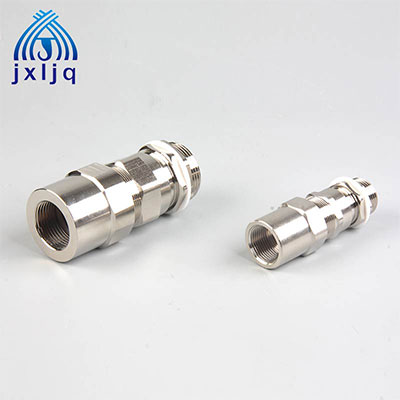

                       EX Clamp Sealing Joint JX3

Material: Brass or stainless steel, brass with nickel plated

Cable: With packing seal

Protection Class: IP66

Explosion Mark: Exd II is equal to II 2G EXE II (European standard) Exd II equal to II 2G Exd II (European standard).

Features:

With quick installation, safety, reliability and other characteristics of good protection.

1. It is Made of copper or stainless steel material;

2. Cable is sealed with gasketing;

3. With reliable installation, good protection and explosion-proof function;

4. Isolating gasket tube in suitable for clamping and fixing steel wire knit of armored  cable, it is cable core and enclosure gas sealing protection most be lp66

Function:

Suitable for clamping and fixing various types of armored cable.

1. Can be used in Hazardous division 1&2;

2. Can be used in Explosive gas atmosphere;

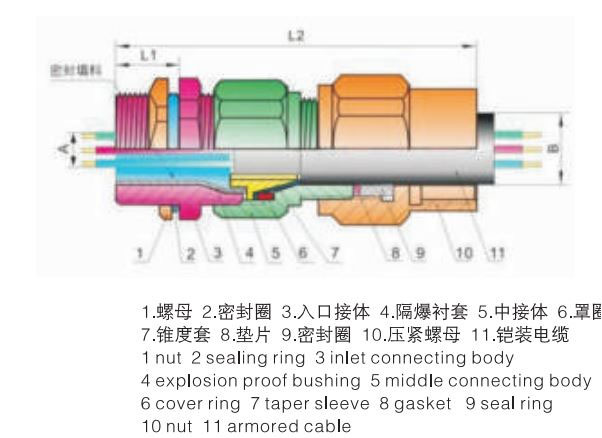

The Drawing:

Clamp Sealing Joint Supplier_EX Clamp Sealing Joint JX3 drawing





Clamp Sealing Joint Supplier_Stainless Steel Cable Gland

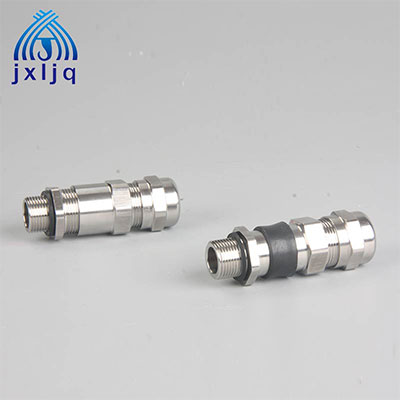

            Double Sealed EX Stainless Steel Cable Gland

Material: SU304 for Body

Seal: High Temperature silicone

Protection Class: Within the clamping range, it can reach to IP66

Temperature Range: Min-40 °C,Max 100 °C, short time to 120°C

Features: High-end design, practical, increase flood control external meter seal.

Thread Options: Metric

Application:

Zone 1 hazardous locations and IIA IIB IIC explosive gas atmospheres,

Explosion-proof electrical equipment connections, chemicals, petroleum, various sectors of electricity, light industry, machinery, etc, especially for automation engineering line installation.

Code AG Thread G Cable Range (mm)   Armor   H (mm) GL (mm) Spanner Size (mm) Std. Pkg (pcs)
  Metric   Outer Inner Size Size

JX-2-EXS-12 M16*1.5 3/8’’ Φ6-12 Φ4-10 0.9/1.25 0/0.7 24 15 24 50
JX-2-EXS-12 M20*1.5 1/2’’ Φ10-16 Φ8-13 0.9/1.25 0/0.7 24 15 24 50
JX-2-EXS-12 M22*1.5 1/2’’ Φ10-16 Φ8-13 0.9/1.25 0/0.7 24 15 24 50
JX-2-EXS-12 M24*1.5 1/2’’ Φ14-16 Φ12-16 0.9/1.25 0/0.7 30 15 30 50
JX-2-EXS-12 M25*1.5 3/4’’ 1’’ Φ14-18 Φ12-16 1.25/1.6 0/0.7 40 15 40 50
JX-2-EXS-12 M30*1.5 1’’11/4’’ Φ17-23 Φ15-21 1.6/2.0 0.6/1.2 46 15 46 50
JX-2-EXS-12 M32*1.5 1’’11/4’’ Φ22-27 Φ20-25 1.6/2.0 0.6/1.2 46 15 46 50
JX-2-EXS-12 M36*2.0 1’’11/4’’ Φ22-27 Φ20-25 1.6/2.0 0.6/1.2 55 15 55 50
JX-2-EXS-12 M40*1.5 11/2’’ Φ26-33 Φ24-31 1.6/2.0 0.6/1.2 55 15 55 50
JX-2-EXS-12 M48*2.0 11/2’’ Φ26-33 Φ24-31 1.6/2.0 0.6/1.2 55 15 55 50
JX-2-EXS-12 M50*1.5 11/2’’ 2’’ Φ32-41 Φ27-35 1.6/2.0 0.6/1.2 65 15 65 50
JX-2-EXS-12 M56*2.0 2’’ Φ40-49 Φ35-43 1.6/2.0 0.6/1.2 65 20 65 50
JX-2-EXS-12 M63*1.5 21/2’’ Φ48-57 Φ42-50 1.8/2.5 0.6/1.2 80 20 80 50
JX-2-EXS-12 M64*2.0 21/2’’ Φ48-57 Φ42-50 1.8/2.5 0.6/1.2 80 20 80 50
JX-2-EXS-12 M75*1.5 3’’ Φ54-68 Φ45-58 1.8/2.5 1.0/1.5 96 20 96 50
JX-2-EXS-12 M87*1.5 3’’ Φ67-79 Φ56-67 1.8/2.5 1.0/1.5 114 20 114 20
