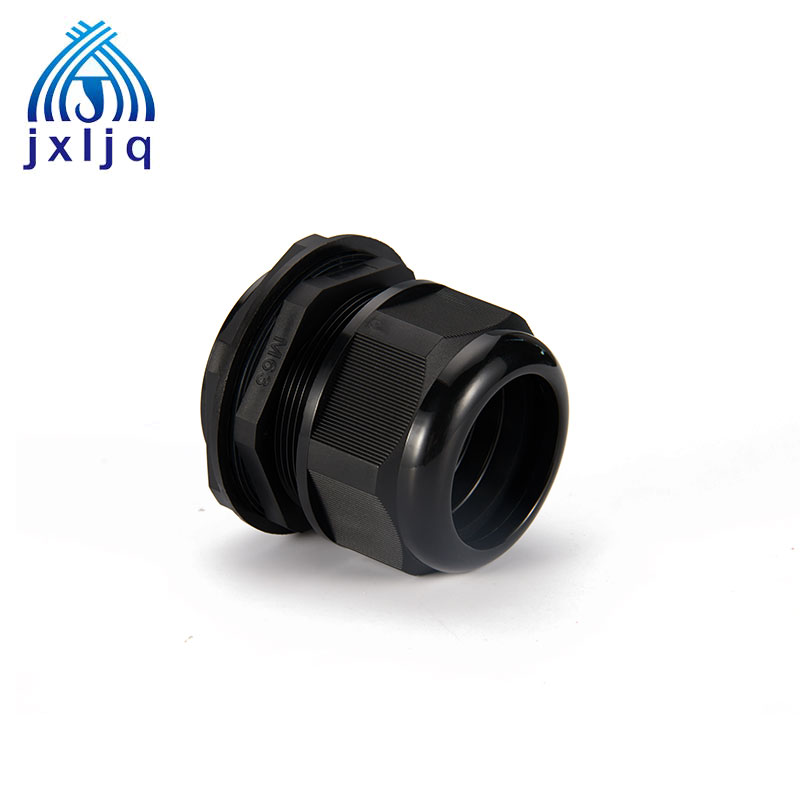

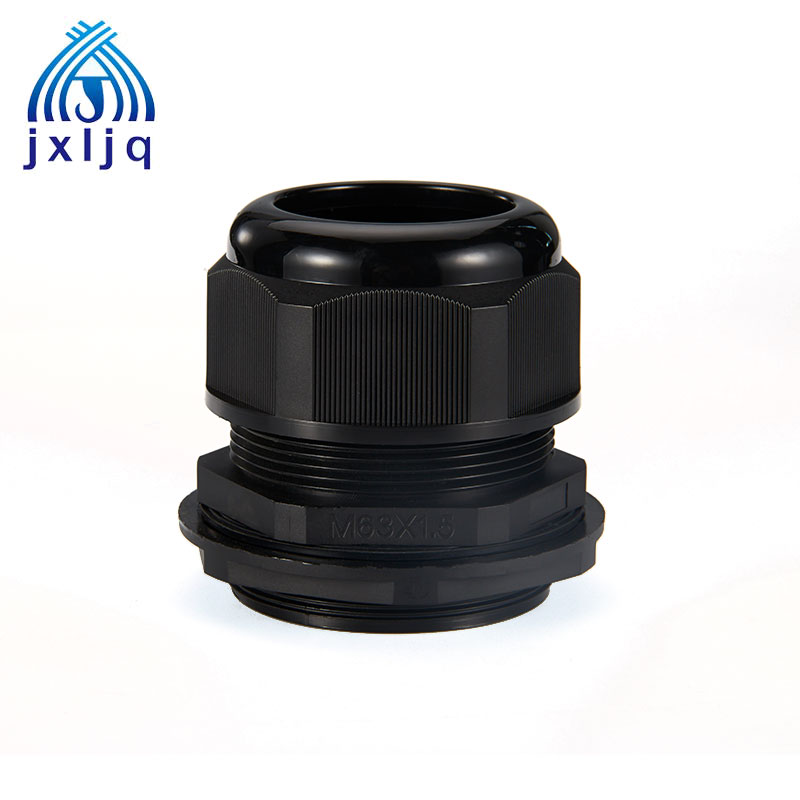

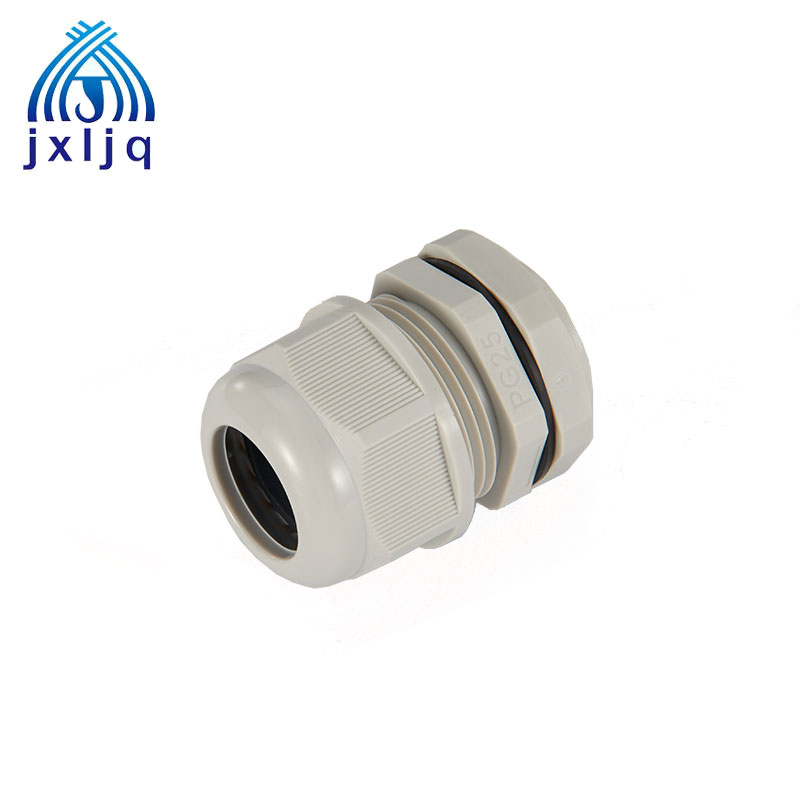

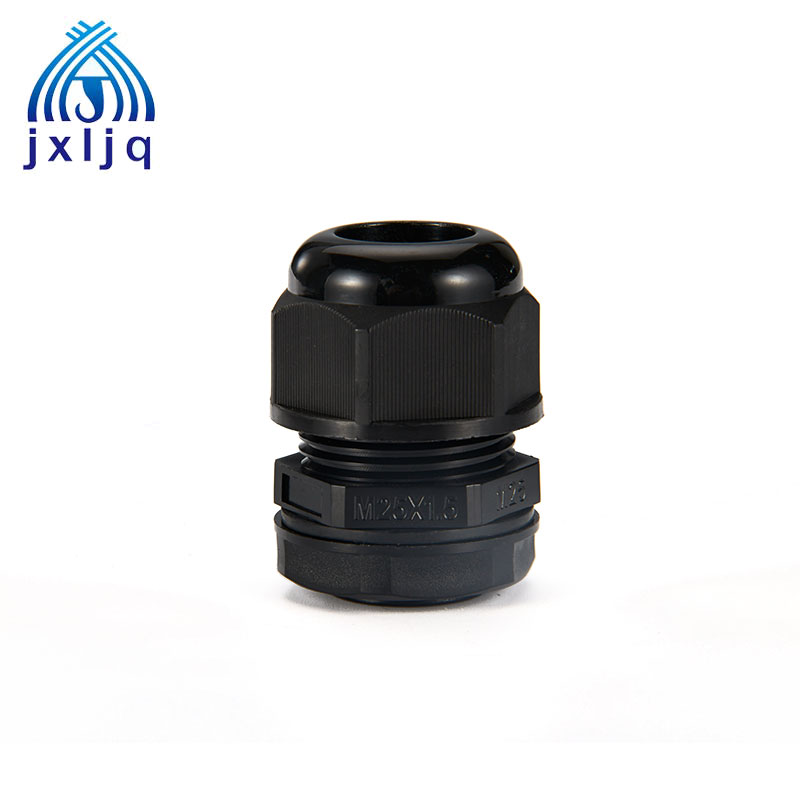

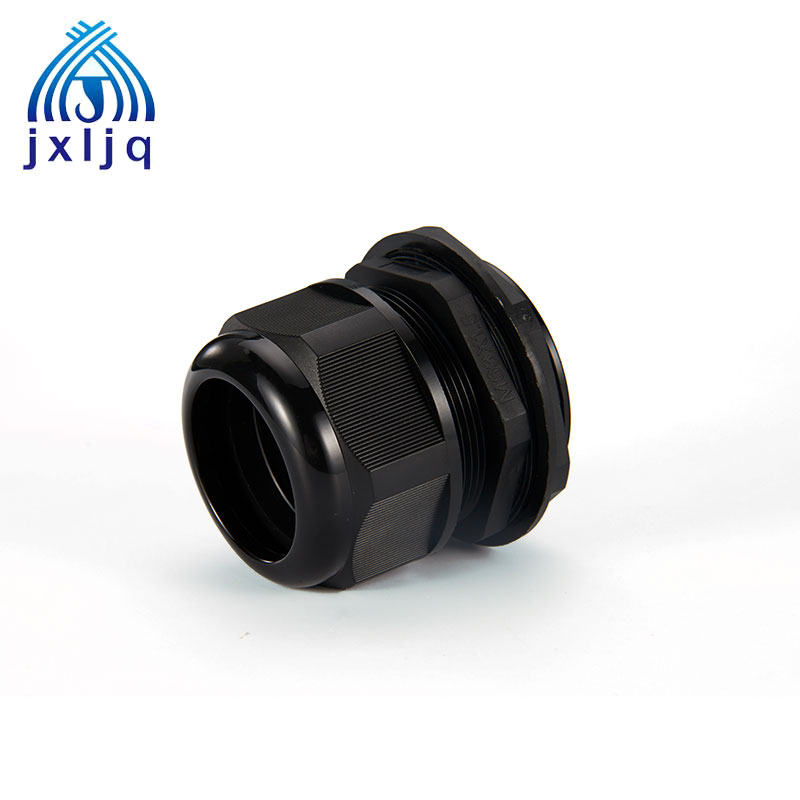

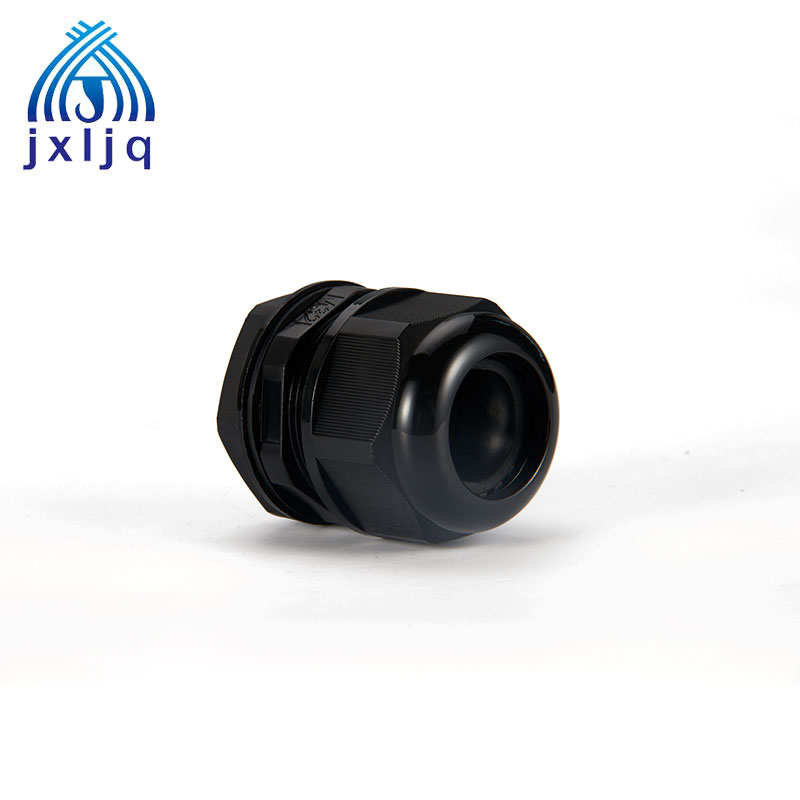

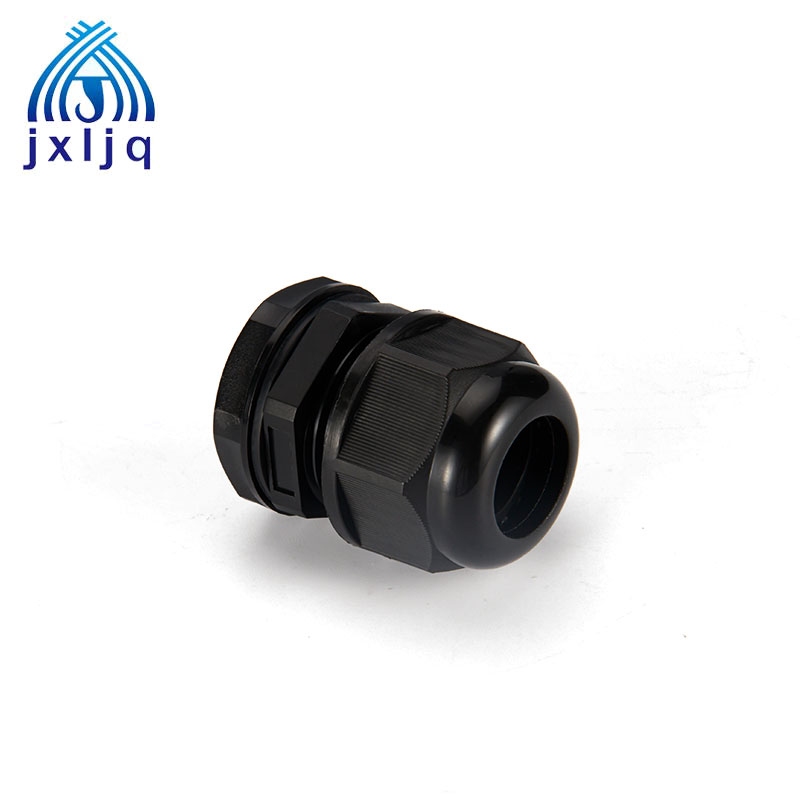

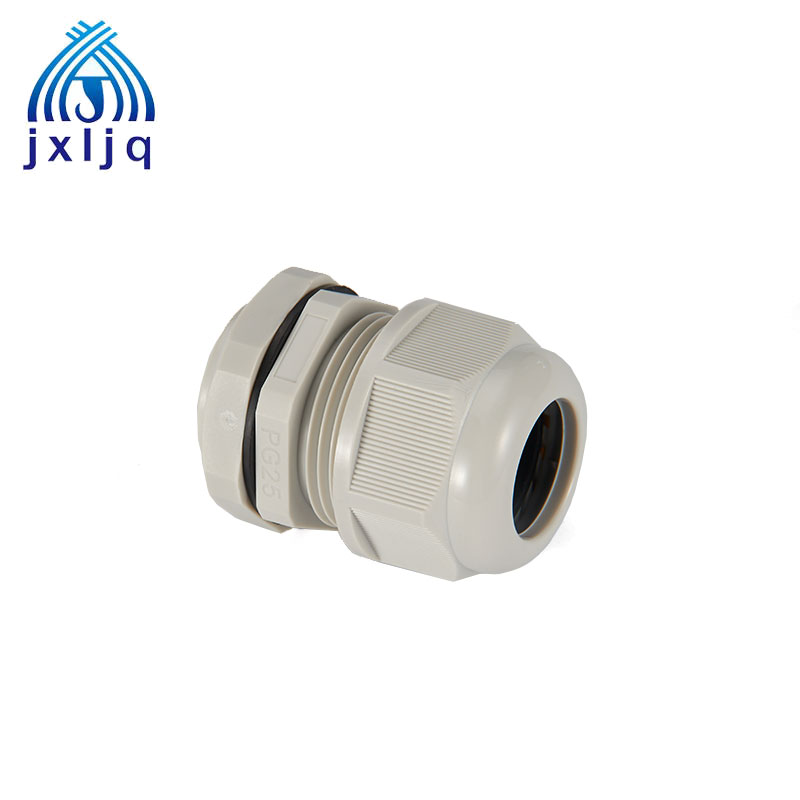

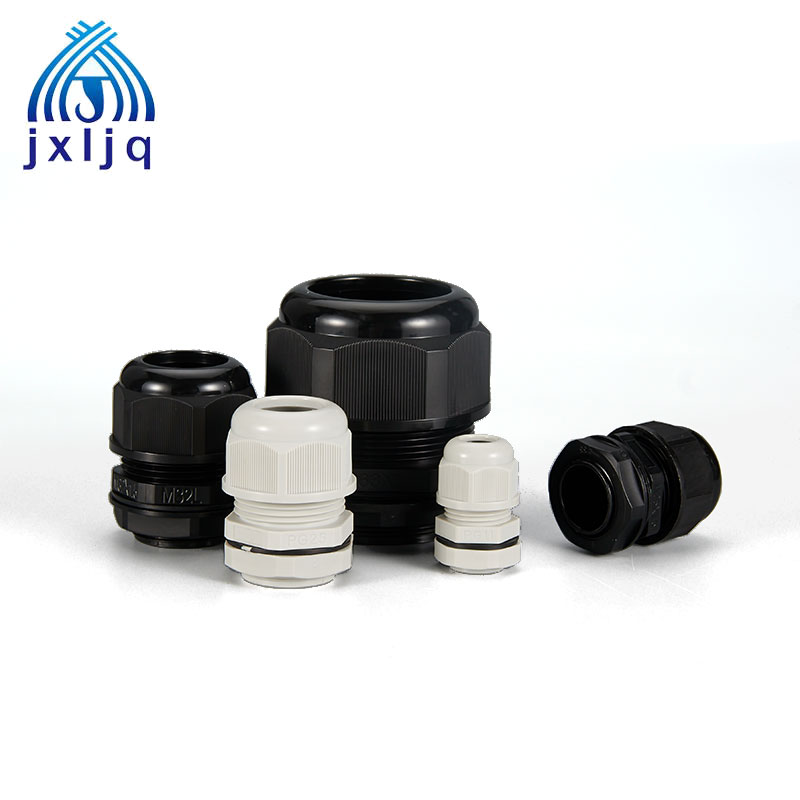

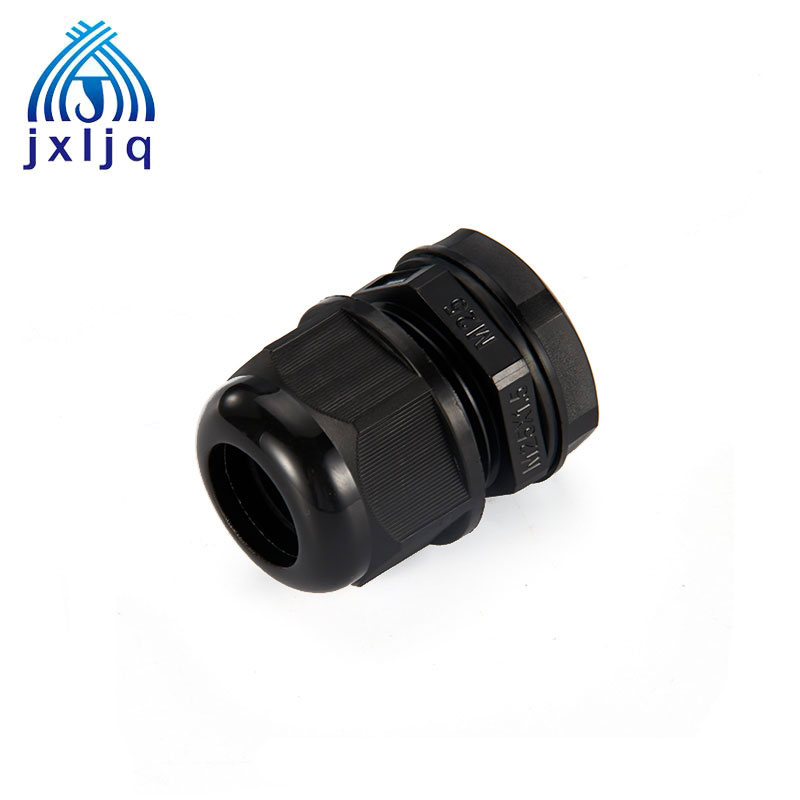

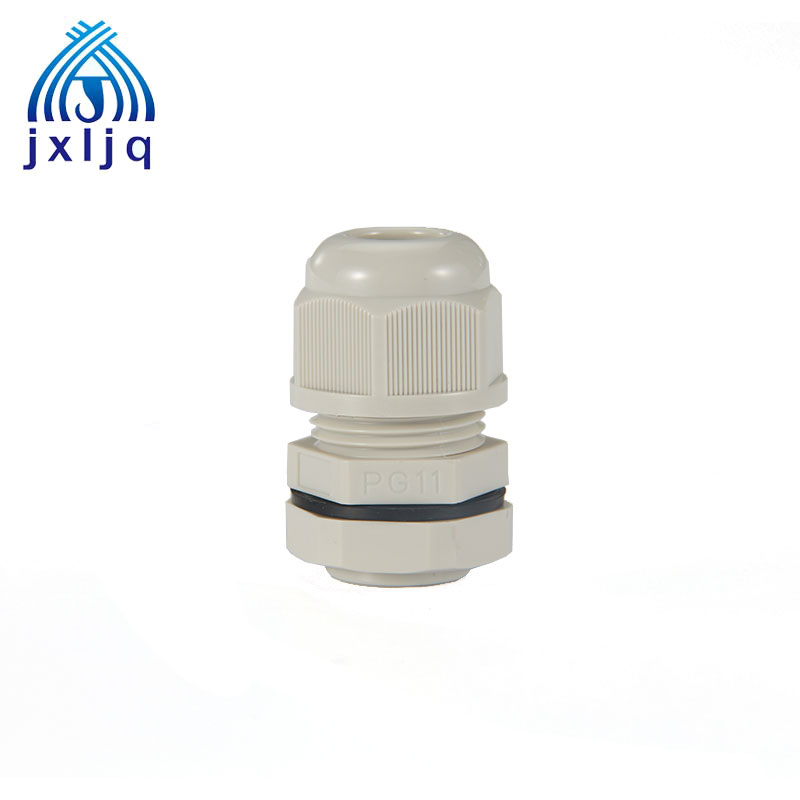

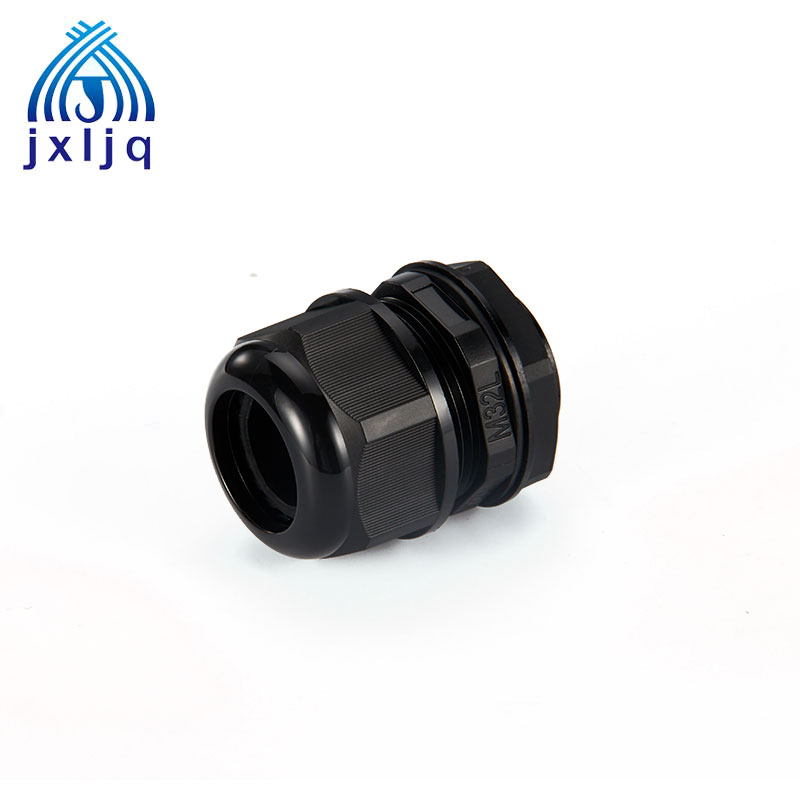

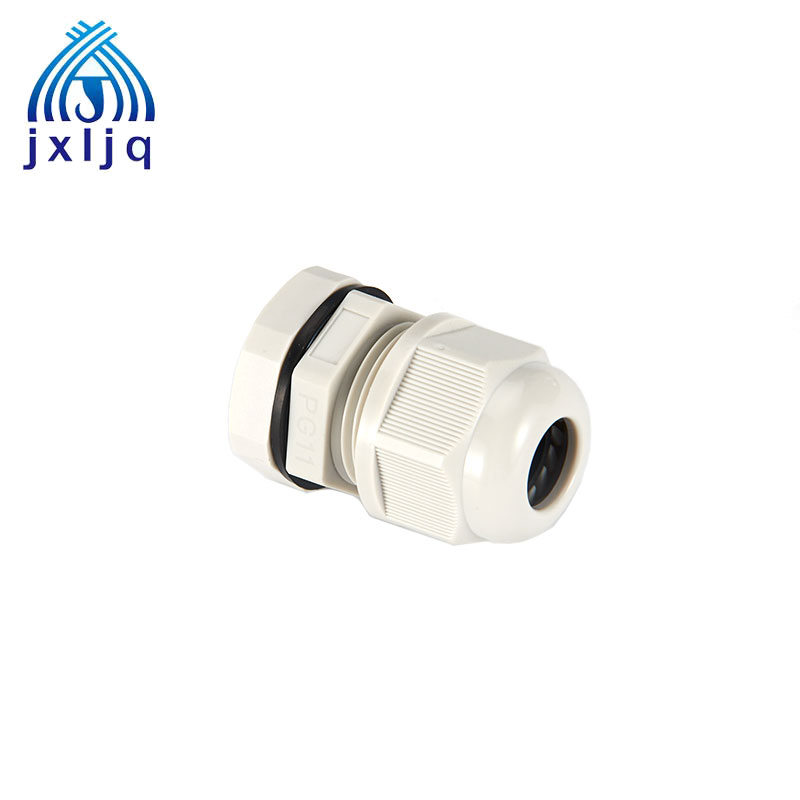

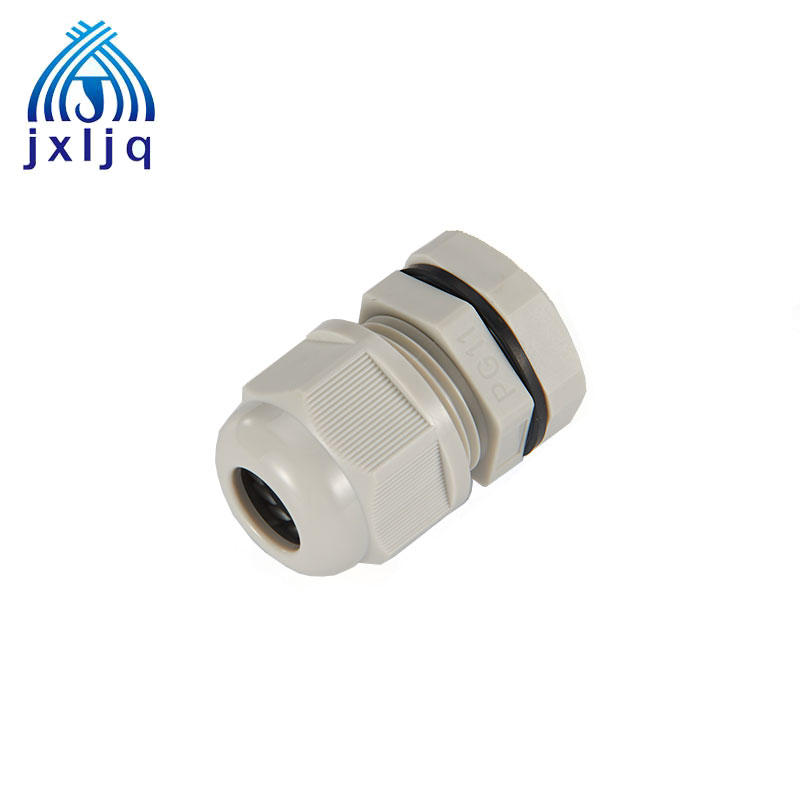

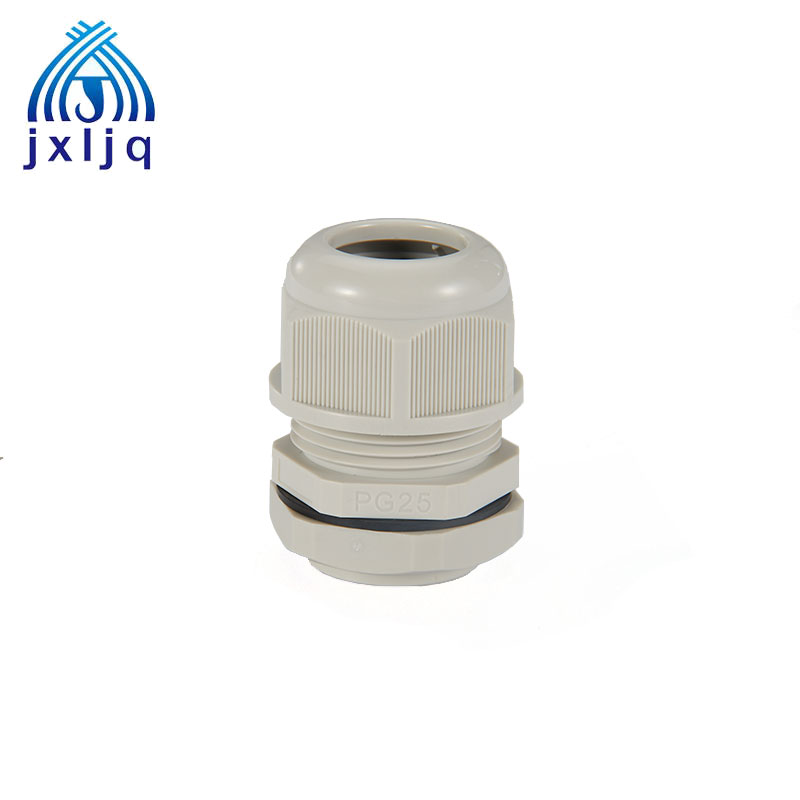

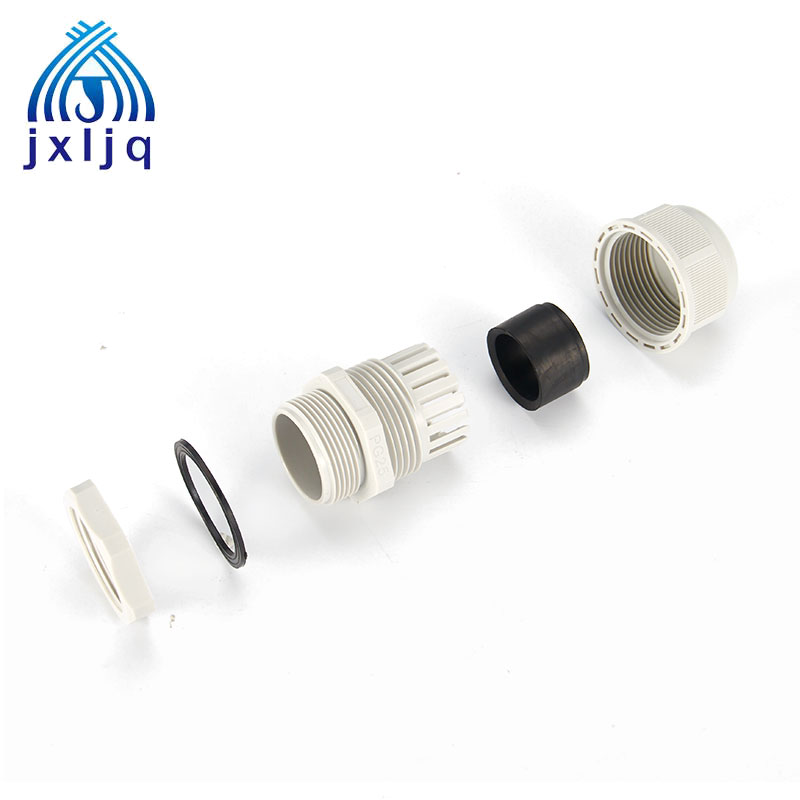

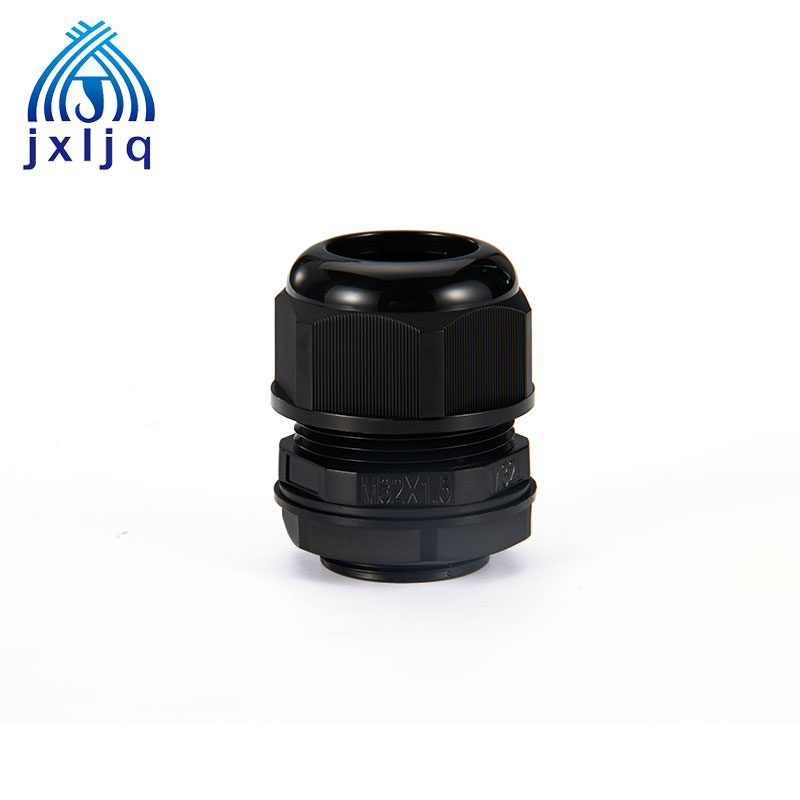

Jixiang United Structure Nylon Cable Gland has a body-clamping claw design for quick installation, made of PA6 with IP68 protection. It resists dust, moisture and vibration, and is ideal for secure sealed cable connections in industrial machinery, data centers and harsh environments.
| Thread: | Metric,PG,G(PF),and NPT thread. |
| Material: | PA6 |
| Protection degree | lP68-10 Bar |
Inquiry Now >>
Thread:Metric,PG,G(PF),and NPT thread.
Material:PA6
EPDMrubber for B.D parts; (Accept to make super rubber:resist high temperature rubber,resist strongacid/alkali,etc).
Protection degree:lP68-10 Bar
Working temperature:-40℃ to 100C in static state,or instaneous heat resistance up to 120℃;-20℃ to 80℃ in dynamic state,or instantaneous heat resistance up to 100°℃.

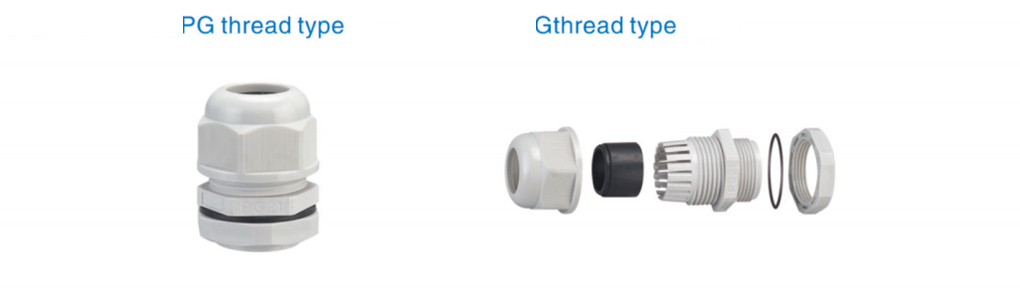

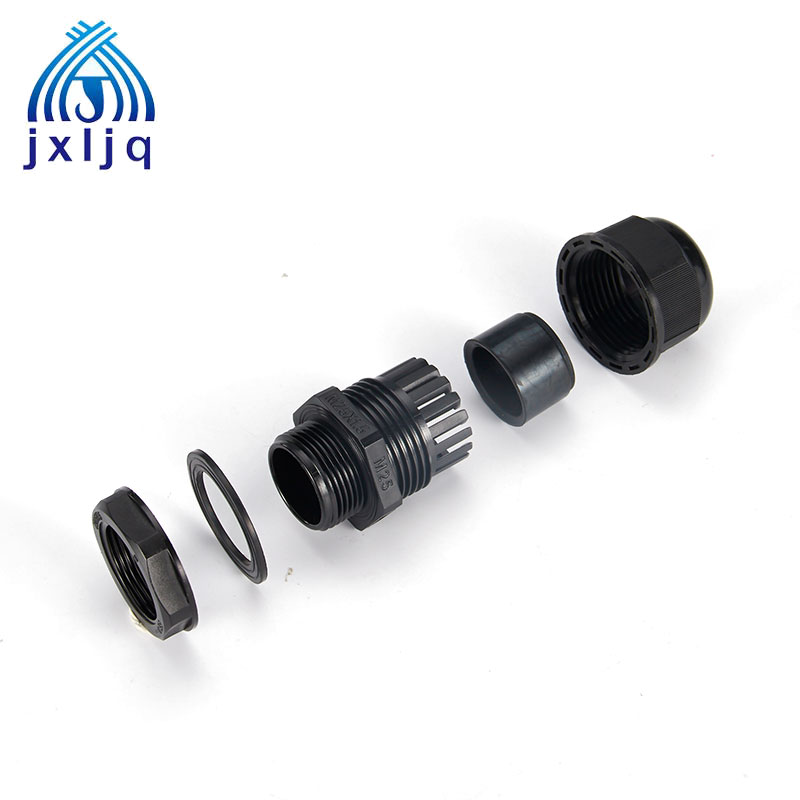

Features:The claws and seals of excellent design,sealing nut hace a 'click 'sound and re-open,can hold cable firmly and have a wider cable range.Resistant to salt water,weak acid,alcohol,oil.grease and common solvency.Colours:Black RAL(9005), Grey (RAL7035) other color available upon request.
Note:Special size and type,please contact us

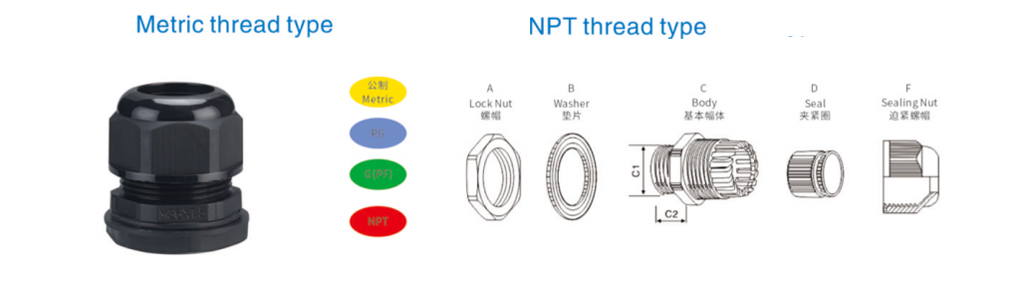

| Code |
Thread |
Cable Range Φ (mm) |
Thread O.D. C1(mm) |
Thread Length C2(mm) |
Spanner Size A&F(mm) |
|
JX-NLM8-UN |
M8X1.25 |
2-4.8 |
8 |
7.5 |
13/12 |
|
JX-NLM10-UN |
M10X1.5 |
3-6 |
10 |
8 |
15/13 |
|
JX-NLM12A-UN |
M12X1.5 |
3-6.5 |
12 |
8.5 |
18/15 |
|
JX-NLM12B-UN |
3-6.5 |
12 |
15 |
18/15 |
|
|
JX-NLM12C-UN |
3-5.5 |
12 |
8.5 |
18/19 |
|
|
JX-NLM12D-UN |
4-8 |
12 |
8.5 |
18/19 |
|
|
JX-NLM12E-UN |
3-5.5 |
12 |
15 |
18/19 |
|
|
JX-NLM12F-UN |
4-8 |
12 |
15 |
18/19 |
|
|
JX-NLM16A-UN |
M16X1.5 |
4-8 |
16 |
10 |
22/19 |
|
JX-NLM16B-UN |
4-8 |
16 |
15 |
22/19 |
|
|
JX-NLM16C-UN |
5-10 |
16 |
10 |
22/22 |
|
|
JX-NLM16D-UN |
5-10 |
16 |
15 |
22/22 |
|
|
JX-NLM18A-UN |
M18X1.5 |
5-10 |
18 |
10 |
24/22 |
|
JX-NLM18B-UN |
5-10 |
18 |
15 |
24/22 |
|
|
JX-NLM20A-UN |
M20X1.5 |
6-12.5 |
20 |
10 |
27/24 |
|
JX-NLM20B-UN |
8.5-14 |
20 |
11 |
27/27 |
|
|
JX-NLM20C-UN |
8.5-14 |
20 |
15 |
27/27 |
|
|
JX-NLM22-UN |
M22X1.5 |
8.5-14 |
22 |
11 |
27/27 |
|
JX-NLM24-UN |
M24X1.5 |
8.5-14 |
24 |
11 |
27/27 |
|
JX-NLM25A-UN |
M25X1.5 |
8.5-14 |
25 |
11.6 |
33/27 |
|
JX-NLM25B-UN |
12.5-18 |
25 |
11.6 |
33/33 |
|
|
JX-NLM25C-UN |
12.5-18 |
25 |
15 |
33/33 |
|
|
JX-NLM32A-UN |
M32X1.5 |
14-22 |
32 |
15 |
41/42 |
|
JX-NLM32B-UN |
17-25 |
32 |
15 |
41/42 |
|
|
JX-NLM36A-UN |
M36X1.5 |
14-22 |
36 |
12 |
45/42 |
|
JX-NLM36B-UN |
17-25 |
36 |
12 |
45/42 |
|
|
JX-NLM40-UN |
M40X1.5 |
23-32 |
40 |
15 |
50/52 |
|
JX-NLM50-UN |
M50X1.5 |
30-41 |
50 |
15 |
62/62 |
|
JX-NLM63-UN |
M63X1.5 |
35-46 |
63 |
18 |
75/65 |
|
Code |
Thread |
Cable Range Φ (mm) |
Thread O.D. Cl(mm) |
Thread Length C2(mm) |
Spanner Size A&F(mm) |
|
JX-NLNPT1/4-UN |
NPT1/4” |
4-8 |
13.157 |
8.5 |
19 |
|
JX-NLNPT3/8-UN |
NPT3/8" |
5-10 |
16.662 |
10 |
22 |
|
JX-NLNPT1/2-UN |
NPT1/2” |
6-12.5 |
20.955 |
10 |
24 |
|
JX-NLNPT3/4-UN |
NPT3/4" |
12.5-18 |
26.441 |
15 |
33 |
|
JX-NLNPT1-UN |
NPT1H |
17-25 |
33.249 |
15 |
41 |
|
JX-NLNPT11/4A-UN |
NPT 11/4” |
17-25.5 |
41.91 |
15 |
52 |
|
JX-NLNPT11/4B-UN |
24-32 |
41.91 |
15 |
52 |
|
Code |
Thread |
Cable Range Φ (mm) |
Thread O.D. Cl(mm) |
Thread Length C2(mm) |
SpannerSize A&F(mm) |
|
JX-NLPG7A-UN |
PG7 |
3-6.5 |
12.5 |
8 |
17/15 |
|
JX-NLPG7B-UN |
4-8 |
12.5 |
8 |
17/19 |
|
|
JX-NLPG7C-UN |
4-8 |
12.5 |
15 |
17/19 |
|
|
JX-NLPG9A-UN |
PG9 |
4-8 |
15.2 |
8.2 |
22/19 |
|
JX-NLPG9B-UN |
4-8 |
15.2 |
15 |
22/19 |
|
| JX-NLPG11A-UN |
PG11 |
5-10 | 18.6 | 10 | 24/22 |
|
JX-NLPG11B-UN |
5-10 |
18.6 |
15 |
24/22 |
|
|
JX-NLPG13.5A-UN |
PG13.5 |
6-12.5 |
20.4 |
10 |
27/24 |
|
JX-NLPG13.5B-UN |
6-12.5 |
20.4 |
15 |
27/24 |
|
|
JX-NLPG16A-UN |
PG16 |
8.5-14 |
22.5 |
10.8 |
30/27 |
|
JX-NLPG16B-UN |
8.5-14 |
22.5 |
15 |
30/27 |
|
|
JX-NLPG19A-UN JX-NLPG19B-UN |
PG19 |
8.5-14 8.5-14 |
24 24 |
11 15 |
30/27 30/27 |
|
JX-NLPG21A-UN |
PG21 |
12.5-18 |
28.3 |
12 |
36/33 |
|
JX-NLPG21B-UN |
12.5-18 |
28.3 |
15 |
36/33 |
|
|
JX-NLPG25A-UN |
PG25 |
14-20 |
30 |
13 |
36/37 |
|
JX-NLPG25B-UN |
14-20 |
30 |
15 |
36/37 |
|
|
JX-NLPG29A-UN |
PG29 |
17-25 |
37 |
12 |
46/41 |
|
JX-NLPG29B-UN |
17-25 |
37 |
15 |
46/41 |
|
|
JX-NLPG36-UN |
PG36 |
24-32 |
47 |
14 |
57/52 |
|
JX-NLPG42-UN |
PG42 |
30-41 |
54 |
15 |
64/62 |
|
JX-NLPG48-UN |
PG48 |
35-45.5 |
59.3 |
18 |
70/65 |
|
Code |
Thread |
Cable Range Φ(mm) |
Thread O.D. Cl(mm) |
Thread Length C2(mm) |
SpannerSize A&F(mm) |
|
JX-NLG1/4-UN |
G(PF)l/4" |
4-8 |
13.157 |
8.5 |
19/19 |
|
JX-NLG3/8-UN |
G(PF)3/8” |
5-10 |
16.662 |
10 |
22/22 |
|
JX-NLG1/2-UN |
G(PF)l/2,t |
6-12.5 |
20.955 |
10 |
27/24 |
|
JX-NLG3/4-UN |
G(PF)3/4” |
12.5-18 |
26.441 |
12 |
36/33 |
|
JX-NLG1-UN |
G(PF)1H |
17-25 |
33.249 |
15 |
46/41 |
|
JX-NLG11/4-UN |
G(PF)11/4H |
30-41 |
41.91 |
15 |
57/52 |
|
JX-NLG11/2-UN |
G(PF)ll/2” |
25-32 |
48 |
15 |
60/62 |
|
JX-NLG2-UN |
G(PF)2” |
29-38 |
60 |
18 |
60/62 |
