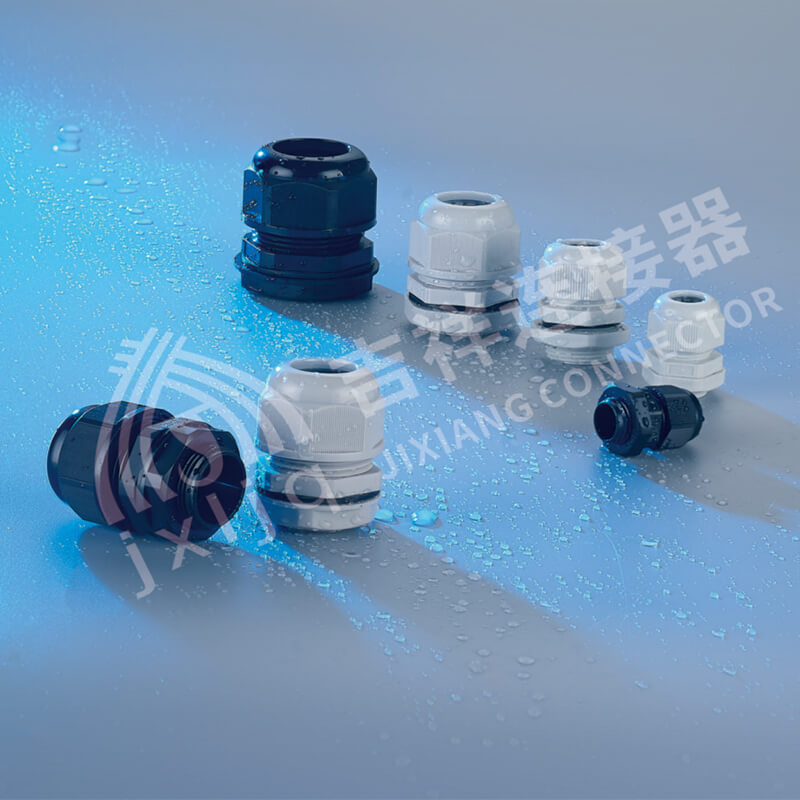

Nylon Watertight Fitting Gland
Nylon Watertight Fitting Gland

Nylon Watertight Fitting Gland

Description

Special design of clamping claws and clamping ring, wide range of clamping cable, strong tensile strength, waterproof, dustproof, salt-resistant, weak acid, alcohol, oil, grease and general solvents.

Inquiry Now >>

Product Description

Thread:Metric,PG,G(PF),

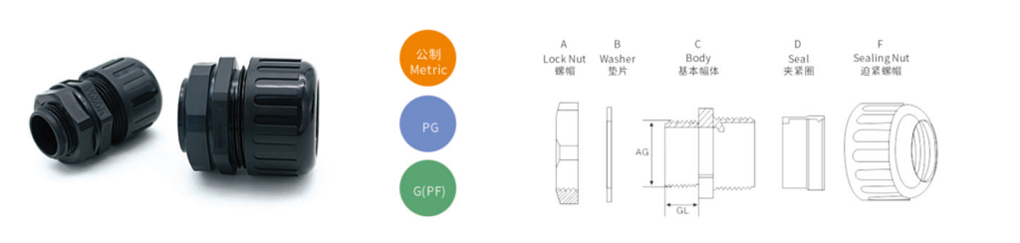

Materiais: Nylon PA66for A.C.F parts ;EPDM rubber for B.D parts; (Accept to make super rubber:resist high temperature rubber,resist strongacid/alkali,etc).

Protection degree:lP68-10 Bar

Working temperature:-40℃ to 100°C in static state,orinstaneous heat resistance up to120°C;-20°C to 80°C in dynamic state,orinstantaneous heat resistance up to 100°C.

Features:The Powerful Watertight Fitting build the best tightening power by a very high and active compression force to resit the ingress of high pressure water jet fon any angle which can provide 100% dynamic waterproof and airtight performance over the widest range ofcorrugated tubings.

Note:Special size and type,please contact us

Model

Accommodated Pipes

Thread

Thread O.D. Cl(mm)

Threadlength C2(mm)

JX-M12-10

AD 10

M12*1.5

12

9

JX-M16-NC13

AD 13

M16*1.5

16

10

JX-M16-NC13L

M16*1.5

16

15

JX-M16-NC15.8

AD 15.8

M16*1.5

16

15

JX-M20-NC15.8

M20*1.5

20

10

JX-M20-NC15.8L

M20*1.5

20

15

JX-M22-NC15.8

M22*1.5

22

15

JX-M25-NC15.8

M25*1.5

25

15

JX-M16-NC18.5



M16*1.5

16

15

JX-M20-NC18.5

AD 18.5

M20*1.5

20

10

JX-M20-NC18.5

M20*1.5

20

15

LJX-M22-NC18.5

M22*1.5

22

15

JX-M16-NC21.2

AD21.2

M16*1.5

16

15

JX-M20-NC21.2

M20*1.5

20

15

JX-M25-NC21.2

M25*1.5

25

10

JX-M25-NC21.2L

M25*1.5

25

15

JX-M25-NC25

AD25

M25*L5

25

15

JX-M25-NC28.5

AD 28.5

M25*1.5

25

15

JX-M32-NC34.5

AD 34.5

M32*1.5

32

15

JX-M40-NC42.5

AD 42.5

M40*L5

40

15

JX-M5O-NC42.5

M50*1.5

50

15

JX-M5O-NC48.5

AD48.5

M50*L5

50

15

JX-M5O-NC54.5

AD 54.5

M50*1.5

50

25

JX-M63-NC54.5

M63*1.5

63

25

JX-PG7-NC10

AD 10

PG7

12.5

9

JX-PG9-NC10

PG9

15.2

10

JX-PG9-NC13

AD 13

PG9

15.2

10

JX-PG11-NC13

PG11

18.6

10

JX-PG11-NC15.8

AD 15.8

PG11

18.6.

10

JX-PG13.5-NC15.8

PG13.5

20.4

10

JX-PG16-NC15.8

PG16

22.5

10.8

JX-PG13.5-NC18.5

AD 18.5

PG13.5

20.4

10

JX-PG16-NC18.5

PG16

22.5

10.8

JX-PG16-NC21.2

AD21.2

PG16

22.5

10.8

JX-PG21-NC21.2

PG21

28.3

13

JX-PG21-NC25

AD25.0

PG21

28.3

13

JX-PG21-NC28.5

AD28.5

PG21

28.3

13

JX-PG29-NC34.5

AD34.5

PG29

37

13

JX-PG36-NC42.5

AD42.5

PG36

47

15

JX-PG42-NC42.5

PG42

54

16

JX-PG42-NC48.0

AD48.0

PG42

54

16

JX-PG48-NC54.5

AD54.5

PG48

59.3

26

JX-PF1/4-NC10

AD 10

G(PF)1/4""

13.1

9

JX-PF3/8-NC13

AD 13

G(PF)3/8""

16.6

15

JX-PF1/2-NC15.8

AD15.8

G(PF)1/2"

20.9

15

JX-PF1/2-NC18.5

AD 18.5

G(PF)1/2"

20.9

15

JX-PF1/2-NC21.2

AD21.2

G(PF)1/2"

20.9

15

JX-PF3/4-NC21.2

G(PF)3/4""

26.4

15

JX-PF3/4-NC28.5

AD28.5

G(PF)3/4""

26.4

15

JX-PF1-NC34.5

G(PF)1""

33.2

15

JX-PF11/4-NC42.5

AD 34.5

G(PF)1 1/4""

41.9

15

JX-PF11/2-NC54.5

AD42.5

G(PF)11/2""

48

15

JX-PF2-NC54.5

AD54.5

G(PF)2”

60

26
