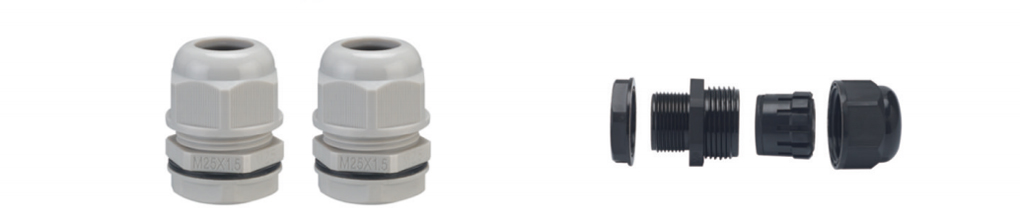

Jixiang Divided Structure Nylon Cable Gland features nylon PA66 + EPDM seals, with IP68-10 Bar protection and stable operation at -40°C to 100°C. It offers Metric, PG, G(PF) threads. Fit for industrial/ automation/ marine use, supports customization.
| Thread: | Metric,PG,G(PF),and NPT thread. |
| Material: | PA6；EPDMrubber for B.D parts |
| Protection degree: | lP68-10 Bar |
| Working temperature:- | 40℃ to 100C in static state,or instaneous heat resistance up to 120℃;-20℃ to 80℃ in dynamic state,or instantaneous heat resistance up to 100°℃ |
Inquiry Now >>
Thread:Metric,PG,G(PF),and NPT thread.
Material:PA6
EPDMrubber for B.D parts; (Accept to make super rubber:resist high temperature rubber,resist strongacid/alkali,etc).
Protection degree:lP68-10 Bar
Working temperature:-40℃ to 100C in static state,or instaneous heat resistance up to 120℃;-20℃ to 80℃ in dynamic state,or instantaneous heat resistance up to 100°℃.
Features:The claws and seals of excellent design,sealing nut hace a 'click 'sound and re-open,can hold cable firmly and have a wider cable range.Resistant to salt water,weak acid,alcohol,oil.grease and common solvency.Colours:Black RAL(9005), Grey (RAL7035) other color available upon request.
Note:Special size and type,please contact us
|

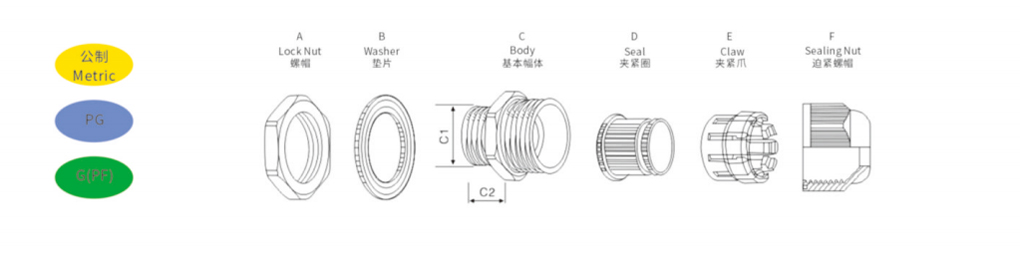

Code |
Thread |
Cable Range Φ (mm) |
Thread O.D. Cl(mm) |
Thread Length C2(mm) |
Spanner Size A&F(mm) |
|
JX-NLM12B-DS |
M12X1.5 |
4.5-7.8 |
12 |
8.5 |
17/19 |
|
JX-NLM16A-DS |
M16X1.5 |
4-8 |
16 |
10 |
22/19 |
|
JX-NLM16B-DS |
4-8 |
16 |
15 |
22/19 |
|
|
JX-NLM16C-DS |
6-10 |
16 |
10 |
24/22 |
|
|
JX-NLM16D-DS |
6-10 |
16 |
15 |
24/22 |
|
|
JX-NLM20A-DS |
M20X1.5 |
7-12 |
20 |
10 |
24/24 |
|
JX-NLM20B-DS |
9-14 |
20 |
10 |
27/27 |
|
|
JX-NLM20C-DS |
9-14 |
20 |
15 |
27/27 |
|
|
JX-NLM22-DS |
M22X1.5 |
9-14 |
20 |
10 |
27/27 |
|
JX-NLM25A-DS |
M25X1.5 |
13-18 |
25 |
12 |
33/33 |
|
JX-NLM25B-DS |
13-18 |
25 |
15 |
33/33 |
|
|
JX-NLM32-DS |
M32X1.5 |
18-25 |
32 |
12 |
41/41 |
|
JX-NLM40-DS |
M40X1.5 |
24-31 |
40 |
15 |
52/52 |
|
JX-NLM50-DS |
M50X1.5 |
31-41 |
50 |
20 |
60/62 |
|
Code |
Thread |
Cable Range Φ (mm) |
Thread O.D. Cl(mm) |
Thread Length C2(mm) |
SpannerSize A&F(mm) |
|
JX-NLPG7-DS |
PG7 |
4.5-7.8 |
12.5 |
9 |
17/19 |
|
JX-NLPG9-DS |
PG9 |
4.5-7.8 |
15.2 |
9 |
22/19 |
|
JX-NLPG11-DS |
PG11 |
6-10 |
18.6 |
9 |
24/22 |
|
JX-NLPG13.5-DS |
PG13.5 |
7-12.5 |
20.4 |
10 |
27/24 |
|
JX-NLPG16-DS |
PG16 |
9-14 |
22.5 |
10 |
30/27 |
|
JX-NLPG21-DS |
PG21 |
13-18 |
28.3 |
12 |
36/33 |
|
JX-NLPG29-DS |
PG29 |
18-25 |
37 |
12 |
46/42 |
|
JX-NLPG36-DS |
PG36 |
24-31 |
47 |
15 |
56/52 |
|
JX-NLPG42-DS |
PG42 |
31-41 |
54 |
20 |
65/62 |

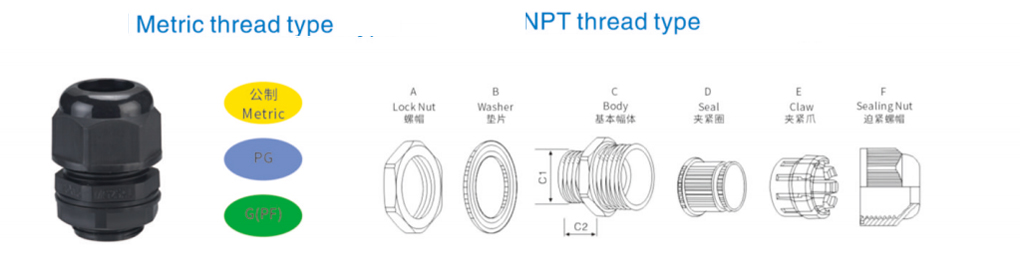

Thread: Metric,PG,G(PF), and NPT thread.
Materiais: Nylon PA66
EPDM rubber for B.D parts;
(Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali, etc).
Protection degree:lP68-10 Bar
Working temperature:-40°Cto 100°C in static state, or instaneous heat resistance up to120°C;-20℃ to 80°C in dynamic state, orinstantaneous heat resistance up to 10o°℃.
Features: The claws and seals of excellent design, sealing nut hace a “click" sound and re-open, can hold cable firmly and have a wider cable range.Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Colors:Black(RAL9005),Grey(RAL7035),othercoloravailable upon request.Note: Special size and type, please contant us
|
Code |
Thread |
Cable Range Φ (mm) |
Thread O.D. Cl(mm) |
Thread Length C2(mm) |
SpannerSize A&F(mm) |
|
JX-NLG1/4-DS |
G(PF)1/4H |
5-7.8 |
13.157 |
9 |
19/19 |
|
JX-NLG3/8-DS |
G(PF)3/8H |
6-10 |
16.662 |
10 |
22/22 |
|
JX-NLG1/2-DS |
G(PF)1/2M |
7-12.5 |
20.955 |
10 |
27/24 |
|
JX-NLG3/4-DS |
G(PF)3/4” |
12.5-18 |
26.441 |
12 |
33/33 |
|
JX-NLG1-DS |
G(PF)1" |
18-25 |
33.249 |
13.5 |
42/41 |
|
JX-NLG11/4-DS |
G(PF)ll/4" |
24-32 |
41.91 |
15 |
51/50 |
|
JX-NLG11/2-DS |
G(PF)11/2H |
31-39 |
48 |
16 |
60/62 |
