Single Compression Cable Gland Manufacturer

YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.

Tel: +86-577-61118056

Fax: +86-577-61118055

Mobile: +86-18958708338

Email: jx@jxljq.com

product description

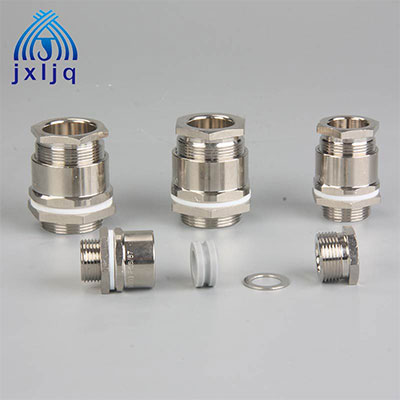

Single Compression Cable Gland (A2F E Type)

Material: SU304 for Body, brass with nickel plated

Protection Class: Within the clamping range, it can reach to IP66

Temperature Range: Min-30 °C，Max 100 °C, short time to 120°C

Features: High-end design, practical, increase flood control external meter seal.

Ex Degree: Exd

Thread Options: Metric, G, PG, NPT

Application:

For use of non-armored and braided cable in Zone 1 hazardous locations and IIA IIB IIC explosive gas atmospheres,

Can be used for explosion-proof electrical equipment connections, chemicals, petroleum, various sectors of electricity, light industry, machinery, etc, especially for automation engineering line installation.

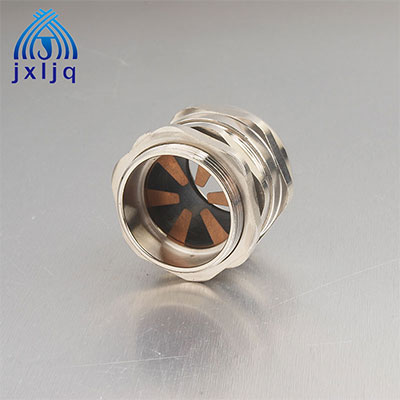

EMC Brass Cable Gland - D Series

Material: The joint body parts are made of nickel plated brass, the clamping parts are made of plastic (PA) , and the seals and  O-ring are made of nitrile rubber (NBR) .

Product Certification: CE, ROHS ,IP68 and ISO9001.

Protection Degree: in the specific cable range, the using of the O-ring helps tighten head, so that to reach IP68-10 bar pressure.

Working temperature:

Static: -40℃to 100℃, short time up to 120℃.

Dynamic: -20℃to 80℃, short time up to 100℃

Thread length:

The short thread is suitable for holes in the  board or equipment with inner thread, while the long thread ia available for thick planted. Threads extension can be customized.

Features:

This product is a kind of specially designed metal cable gland which is used as an end.When shielded cable entries through this cable gland, the brass material contact chips attached in the cable gland will contact with the metal isolated network in the cable, Then the interfering electromagnetic wave will be leaded to the grounding wire, thus the interference source of electromagnetic wave will be evacuated. The brass materials cable glands with different sizes are widely applicable for outlet areas when anti-electromagnetic is needed. It is also waterproof with IP68 protection degree.

Technical Parameters

Draft Drawing of Gland
