Nylon Gland Supplier Introduction

DateTime :    Vist : 12

Company Profile

YUEQING JIXIANG CONNECTOR CO.,LTD  is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

 Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.

Tel: +86-577-61118056

Fax: +86-577-61118055

Mobile: +86-18958708338

Email: jx@jxljq.com



product description

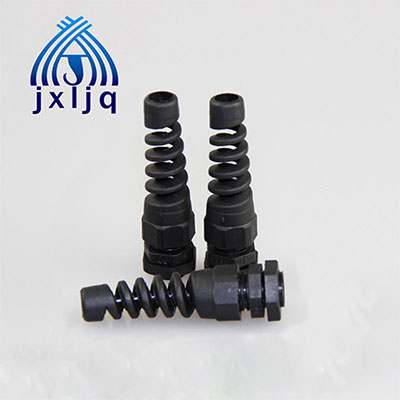

               Nylon Gland With Strain Relief Metric Thread

Nylon Gland Supplier Introduction_Nylon Gland

Material: Adopting Nylon PA66 certificated by UL

Product Certification: CE certification, ROHS certification and ISO9001.

Protection Degree: IP68- 10 BAR

Working temperature:

-40℃to 100℃ in static state, or instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state, or instantaneous heat resistance up to 100℃.

Characteristics: IP68 (Rptate the part and use O ring)

Colors: Black (RAL9005),Gray(RAL7035), other colors are available upon requests.

Function:

1. Can be used in liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.

2.Use to positively bond the conduit to a box or enclosure.

Technical Parameter:

Product Code Thread  AG Cable range (mm) Thread O.D. AG(mm) Thread length GL(mm) Spanner Size (mm)
JX-M12A-NFL M12*1.5 3-6.5 12 8 16
JX-M12B-NFL M12*1.5 2-5 12 8 16
JX-M16A-NFL M16*1.5 4-8 16 8 19
JX-M16B-NFL M16*1.5 2-6 16 8 19
JX-M18A-NFL M18*1.5 5-10 18 8 22
JX-M18B-NFL M18*1.5 3-7 18 8 22
JX-M20A-NFL M20*1.5 6-12 20 9 24
JX-M20B-NFL M20*1.5 5-9 20 9 24
JX-M22A-NFL M22*1.5 10-14 22 10 27
JX-M22B-NFL M22*1.5 7-12 22 10 27
JX-M25A-NFL M25*1.5 13-18 25 10 33
JX-M25B-NFL M25*1.5 9-16 25 10 33
JX-M27A-NFL M27*1.5 13-18 27 10 33
JX-M27B-NFL M27*1.5 9-16 27 10 33

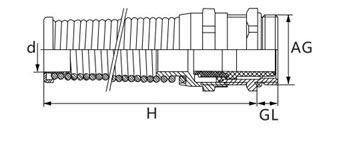

The Drawing of Flexible Cable Gland:

Nylon Gland Supplier Introduction_Nylon Gland Drawing

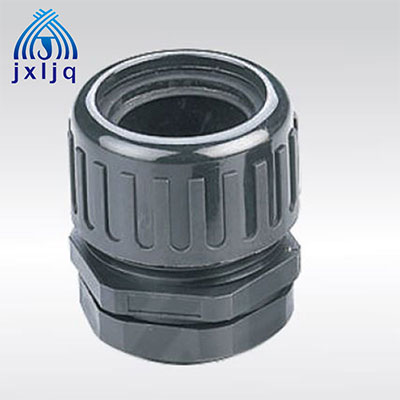

                             Nylon Conduit Fitting

Nylon Gland Supplier Introduction_Nylon Conduit Fitting

Material: UL approved Nylon PA66 ( Flammability UL 94V-2) for A.C.F parts; (accept to make flammability UL V-0).

EPDM Rubber for B.D parts; (Accept to make super rubber: resist high temperature rubber, resist strong acid/alkali, etc).

Protection Degree: IP68-10 BAR

Working temperature:

-40°C to 100°C in static state, or instantaneous heat resistance up to 120°C, -20°C to 80°C in dynamic state, or instantaneous heat resistance up to 100°C.

Thread: Metric, PG and G Thread

Features:

The Powerful Watertight Fitting build the best tightening power by a very high and active compression force to resist the ingress of high pressure water jet for any angle which can provide 100% dynamic waterproof and airtight performance over the widest range of corrugated tubing.

Note: Special size and type, please contact us without hesitation.

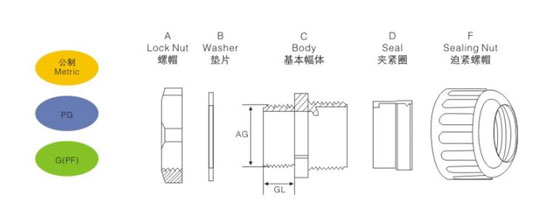

The drawing:

Nylon Gland Supplier Introduction_Nylon Conduit Fitting Drawing
