Nylon Cable Gland Vendor
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Tel: +86-577-61118056
Fax: +86-577-61118055
Mobile: +86-18958708338
Email: jx@jxljq.com
product description

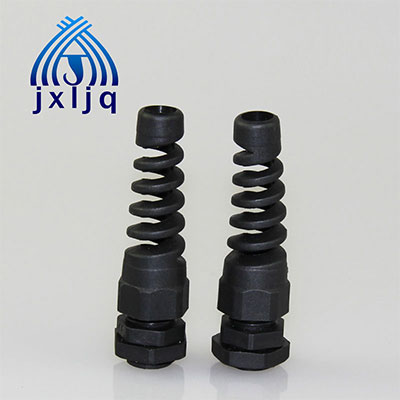

Nylon Cable Gland With Strain Relief PG Thread
Material: Adopting Nylon PA66 certificated by UL
Product Certification: CE certificationand ISO9001.
Protection Degree: IP68
Working temperature:
-40℃to 100℃, short time up to 120℃.
Colors: Black (RAL9005),Gray(RAL7035), other colors are available upon requests.
Function:
1. Can be used in flexible metallic conduit or liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.
2.Use to positively bond the conduit to a box or enclosure.
Technical Parameters:
| Product Code | Thread AG | Cable range(mm) | Thread O.D AG (mm) | Thread length GL(mm) | Spanner Size (mm) |
| JX-PG7A-NFL | PG7 | 3-6.5 | 12.5 | 8 | 16 |
| JX-PG7B-NFL | PG7 | 43501 | 12.5 | 8 | 16 |
| JX-PG9A-NFL | PG9 | 43563 | 15.2 | 8 | 19 |
| JX-PG9B-NFL | PG9 | 43502 | 15.2 | 8 | 19 |
| JX-PG11A-NFL | PG11 | 43595 | 18.6 | 8 | 22 |
| JX-PG11B-NFL | PG11 | 43531 | 18.6 | 8 | 22 |
| JX-PG13.5A-NFL | PG13.5 | 43628 | 20.4 | 9 | 24 |
| JX-PG13.5B-NFL | PG13.5 | 43594 | 20.4 | 9 | 24 |
| JX-PG16A-NFL | PG16 | 43752 | 22.5 | 10 | 27 |
| JX-PG16B-NFL | PG16 | 43658 | 22.5 | 10 | 27 |
| JX-PG21A-NFL | PG21 | 13-18 | 28.3 | 10 | 33 |
| JX-PG21B-NFL | PG21 | 43724 | 28.3 | 10 | 33 |

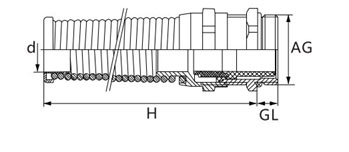

The Drawing of Flexible Cable Gland:

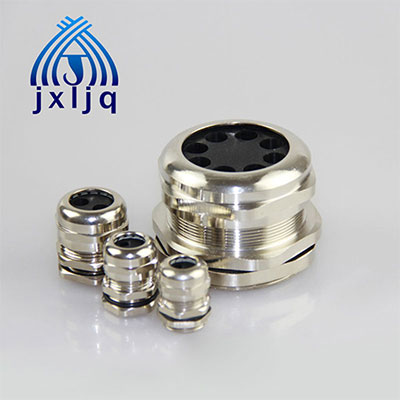

Multiple Cable Gland 2-8 Holes- Metric,PG,GThread
Thread Size: Metric Thread, PG, G thread
Material: The joint parts are made of nickel plated brass, the clamping parts are made of plastic (PA) , and the seals and O-ring are made of nitrile rubber (NBR) .
Product Certification: CE, ROHS, IP68 and ISO9001
Protection degree: in the specific cable range, the using of the O-ring helps tighten head, so that reach to IP68-10 bar pressure.
Colors: Metallic
Working temperature:
- Static: -40℃to 100℃, short time up to 120℃.
- Dynamic: -20℃to 80℃, short time up to 100℃
Characteristic: The cable gland is a product of large scope, high tensile strength, waterproof, dust-proof, salt, acid, alcohol, oil and solvent resistant.
Variety of outlet holes: There are 2-8 holes designed for outlet cable, so that each cable to get the best water-proof insulation, and not intertwined.
Note: For more holes, please specify the relevant parameters, such as: model specification, the cable diameter, number of holes and so on.
Technical Parameters:
| Product Code | Thread specification AG | Flat | M2 | M3 | M4 | M5 | M6 | M7 | M8 |
| JX-M12/* | M12*1.5 | / | 3-1.2 | 2.6-1.2 | 2.3-1 | / | / | / | / |
| JX-M16/* | M16*1.5 | / | 4-1.6 | 2.6-1.2 | 2.3-1 | 2.5-1.0 | 2.0-1.0 | / | / |
| JX-M18/* | M18*1.5 | 6X10 | 3.5-2 | 4-1.6 | 3-1.2 | 2.6-1.5 | 2.2-1 | / | / |
| JX-M20/* | M20*1.5 | 5X11.5 | 5.3-1.5 | 43587 | 4.2-1.7 | 3-1.2 | 3-1.2 | 3-1.2 | 3-1.2 |
| JX-M22/* | M22*1.5 | 6X14 | 6-2.5 | 3.5-1.5 | 4.5-2 | / | / | / | / |
| JX-M25/* | M25*1.5 | 6X14 | 8.7-4 | 43681 | 16469 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 |
| JX-M27/* | M27*1.5 | 7X18 | 8.7-4.5 | 43587 | 7-3.5 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 |
| JX-M32/* | M32*1.5 | 8X22 | 43743 | 43743 | 9-4.5 | 8.0-4.0 | 7-3.5 | 43619 | / |
| JX-PG7/* | PG7 | / | 3-1.2 | 2.6-1.2 | 2.3-1 | / | / | / | / |
| JX-PG9/* | PG9 | / | 4-1.6 | 2.6-1.2 | 2.3-1 | 2.5-1.0 | 43497 | / | / |
| JX-PG11/* | PG11 | 6X10 | 3.5-2 | 4-1.6 | 3-1.2 | 2.6-1.5 | 2.2-1 | / | / |
| JX-PG13.5/* | PG13.5 | 5X11.5 | 5.3-1.5 | 3.5-1.5 | 4.2-1.7 | 4.2-1.7 | / | / | / |
| JX-PG16/* | PG16 | 6X14 | 6-2.5 | 3.5-1.5 | 4.5-2 | / | / | / | / |
| JX-PG21/* | PG21 | 7X18 | 8.7-4.5 | 43587 | 7-3.5 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 | / |
| JX-PG29/* | PG29 | 8X22 | 43743 | 43743 | 9-4.5 | 8.0-4.0 | 7-3.5 | 43619 | / |
| JX-G1/2/* | G1/2 | 5X11.5 | 5.3-1.5 | 43587 | 4.2-1.7 | 3-1.2 | 3-1.2 | 3-1.2 | 3-1.2 |
| JX-G3/4/* | G3/4 | 7X18 | 8.7-4.5 | 43587 | 7-3.5 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 |
| JX-G1/* | G1 | 8X22 | 43743 | 43743 | 9-4.5 | 8.0-4.0 | 7-3.5 | 43619 | / |
