Marine Cable Gland Vendor Recommend

DateTime :    Vist : 38

Company Profile

YUEQING JIXIANG CONNECTOR CO.,LTD  is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.

To create a better brand image, JIXAING takes good faith for the business, keeps innovative through development and completely implements good service. Strongly believe that our company will be presented itself as a brand-mew image among the enterprises in our country or even in the world.

Tel: +86-577-61118056

Fax: +86-577-61118055

Mobile: +86-18958708338

Email: jx@jxljq.com



product description

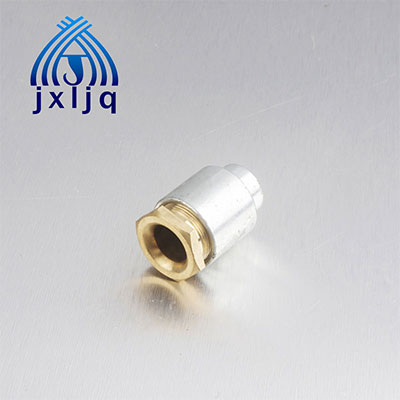

Marine Cable Gland TH Type

Marine Cable Gland Vendor Recommend_Marine Cable Gland

Thread Size: TH

Material: Brass, chromium plated

Product Certification: CE certificationand ISO9001.

Protection Degree: IP54

Working temperature:  -40℃to 110℃, short time up to 120℃.

Function: Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.

Technical Parameter:

Product Code Cable Range (mm) d (mm) D (mm) d1(mm) D1(mm) J(mm) J1(mm)
JX-TH8 5-7 8 M16*1 13 20 32 3
JX-TH13 6-12 13 M20*1 17 24 35 8
JX-TH16 11-15 16 M27*1.5 22 32 40 8
JX-TH19 14-18 19 M30*1.5 24 35 42 8
JX-TH24 17-23 24 M35*1.5 30 41 44 8
JX-TH28 22-27 28 M42*2 35 49 46 8
JX-TH34 26-33 34 M47*2 42 53 49 8
JX-TH42 32-41 42 M55*2 50 60 54 8
JX-TH50 40-49 50 M62*2 58 69 56 8
JX-TH58 48-57 58 M71*2 66 80 56 8

The Drawing of Marine Cable Gland:

Marine Cable Gland Vendor Recommend_Marine Cable Gland Drawing

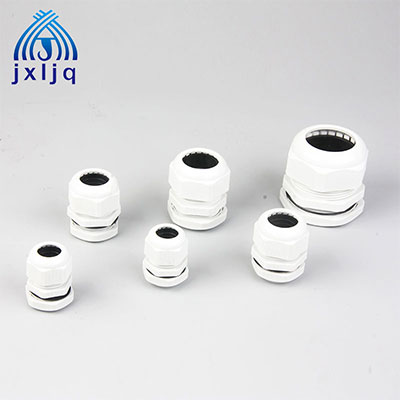

Nylon Cable Gland Divided Structure - PG Thread

Marine Cable Gland Vendor Recommend_Nylon Cable Gland

Thread Size: PG Thread

Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.E.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).

Product Certification: CE certification, ROHS certification and ISO9001.

Protection Degree: IP68- 10 BAR

Working temperature:  -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.

Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.

Colors: Black(RAL9005), Gray(RAL7035), other colors are available upon requests.

Technical Parameter:

Product Code Thread  AG Cable range(mm) Thread O.D. C1(mm) Thread length GL(mm) Spanner Size (mm)
JX-NLPG7A-DS PG7 3-5.5 12.5 8 17/19
JX-NLPG7B-DS   4.5-7.8 12.5 8 17/19
JX-NLPG9A-DS PG9 3-5.5 15.2 8.2 22/19
JX-NLPG9B-DS   4.5-7.8 15.2 8.2 22/19
JX-NLPG11A-DS PG11 4-7 18.6 10 24/22
JX-NLPG11B-DS   6-10 18.6 10 24/22
JX-NLPG13.5A-DS PG13.5 5-8.8 20.4 10 27/24
JX-NLPG13.5B-DS   7-12.5 20.4 10 27/24
JX-NLPG16A-DS PG16 6-11 22.5 10.8 30/27
JX-NLPG16B-DS   9-14 22.5 10.8 30/27
JX-NLPG21A-DS PG21 10-16 28.3 12 36/33
JX-NLPG21B-DS   13-18 28.3 12 36/33
JX-NLPG29A-DS PG29 15-22 37 12 46/41
JX-NLPG29B-DS   18-25 37 12 46/41
JX-NLPG36A-DS PG36 20-26 47 14 57/52
JX-NLPG36B-DS   24-31 47 14 57/52
JX-NLPG42A-DS PG42 25-33 54 15 64/62
JX-NLPG42B-DS   31-41 54 15 64/62

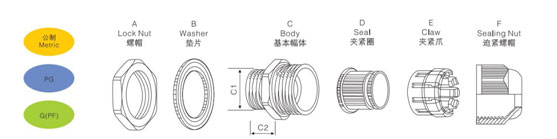

The Drawing of Marine Cable Gland:

Marine Cable Gland Vendor Recommend_Nylon Cable Gland Drawing
