Marine Cable Gland Vendor
product description
Thread Size: TJ
Material: Brass, chromium plated
Product Certification: CE certificationand ISO9001.
Protection Degree: IP54
Working temperature: -40℃to 110℃, short time up to 120℃.
Function: Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.
More options: Customization is accept.Welcome to inquire.
Technical Parameter:
| Product Code | Cable Range (mm) | d (mm) | D (mm) | d1(mm) | D1(mm) | H1(mm) | H(mm) |
| JX-TJ8 | 43592 | 8 | M16*1 | M14*1 | 20 | 9 | 32 |
| JX-TJ13 | 43628 | 13 | M20*1 | M18*1 | 24 | 10 | 35 |
| JX-TJ16 | 43784 | 16 | M27*1.5 | M22*1.5 | 31.5 | 12 | 40 |
| JX-TJ19 | 14-18 | 19 | M30*1.5 | M27*1.5 | 34.5 | 12 | 42 |
| JX-TJ24 | 17-23 | 24 | M35*1.5 | M30*1.5 | 39.6 | 12 | 44 |
| JX-TJ28 | 22-27 | 28 | M42*2 | M36*1.5 | 46.5 | 15 | 46 |
| JX-TJ34 | 26-33 | 34 | M47*2 | M42*2 | 54 | 15 | 49 |
| JX-TJ42 | 32-41 | 42 | M55*2 | M52*2 | 62 | 15 | 54 |
| JX-TJ50 | 40-49 | 50 | M62*2 | M58*27 | 68.5 | 15 | 56 |
| JX-TJ58 | 48-57 | 58 | M71*2 | M68*2 | 77.5 | 20 | 56 |

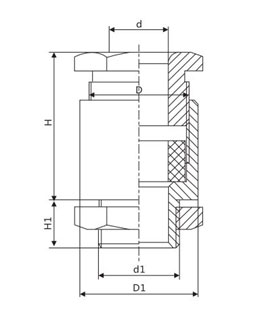

The Drawing of Single Compression Cable Gland:
Stainless Steel Cable Gland PG Thread
Thread Size: PG Thread
Material: stainless steel 304/316
Claw: PA
Sealing and sealing ring: NBR
Product Certification: CE certification and ISO9001.
Protection Degree: IP68
Working temperature: -40℃ to 100℃short time to 120℃
Function:
Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured. These cable glands are designed to withstand water,dust,salt,acid-based,alcohol, oil and common solvent.
Technical Parameter:
| Product Code | Thread AG | Cable range(mm) | Thread O.D. (mm) | Mounting Hole Dia (mm) | Thread length GL(mm) | Joint Length (mm) | Spanner Size (mm) |
| JX-PG7A-SS | PG7 | 3-6.5 | 12.5 | 12.5-12.7 | 7 | 19 | 14 |
| JX-PG7B-SS | 43501 | 12.5 | 12.5-12.7 | 7 | 19 | 14 | |
| JX-PG9A-SS | PG9 | 43563 | 15.2 | 15.2-15.4 | 8 | 20 | 17 |
| JX-PG9B-SS | 43502 | 15.2 | 15.2-15.4 | 8 | 20 | 17 | |
| JX-PG11A-SS | PG11 | 43595 | 18.6 | 18.6-18.8 | 8 | 21 | 20/21 |
| JX-PG11B-SS | 43531 | 18.6 | 18.6-18.8 | 8 | 21 | 20/21 | |
| JX-PG13.5A-SS | PG13.5 | 43628 | 20.4 | 20.4-20.6 | 8 | 22 | 22 |
| JX-PG13.5B-SS | 43594 | 20.4 | 20.4-20.6 | 8 | 22 | 22 | |
| JX-PG16A-SS | PG16 | 43752 | 22.5 | 22.5-22.7 | 9 | 23 | 24 |
| JX-PG16B-SS | 43628 | 22.5 | 22.5-22.7 | 9 | 23 | 24 | |
| JX-PG19A-SS | PG19 | 43752 | 25 | 25-25.2 | 9 | 25 | 24/27 |
| JX-PG19B-SS | 43693 | 25 | 25-25.2 | 9 | 25 | 27 | |
| JX-PG21A-SS | PG21 | 13-18 | 28.3 | 28.3-28.5 | 9 | 27 | 30 |
| JX-PG21B-SS | 43724 | 28.3 | 28.3-28.5 | 9 | 27 | 30 | |
| JX-PG25A-SS | PG25 | 15-22 | 32 | 32-32.2 | 10 | 29 | 35 |
| JX-PG25B-SS | 16-20 | 32 | 32-32.2 | 10 | 29 | 35 | |
| JX-PG29A-SS | PG29 | 18-25 | 37 | 37-37.2 | 11 | 31 | 40 |
| JX-PG29B-SS | 13-20 | 37 | 37-37.2 | 11 | 31 | 40 | |
| JX-PG36A-SS | PG36 | 25-33 | 47 | 47-47.2 | 12 | 37 | 50 |
| JX-PG36B-SS | 20-26 | 47 | 47-47.2 | 12 | 37 | 50 | |
| JX-PG42A-SS | PG42 | 32-38 | 54 | 54-54.2 | 13 | 38 | 57 |
| JX-PG42B-SS | 25-31 | 54 | 54-54.2 | 13 | 38 | 57 | |
| JX-PG48A-SS | PG48 | 37-44 | 59.3 | 59.3-59.5 | 14 | 38 | 64 |
| JX-PG48B-SS | 29-35 | 59.3 | 59.3-59.5 | 14 | 38 | 64 | |
| JX-PG63-SS | PG63 | 42-52 | 72 | 72-72.2 | 15 | 42 | 77 |

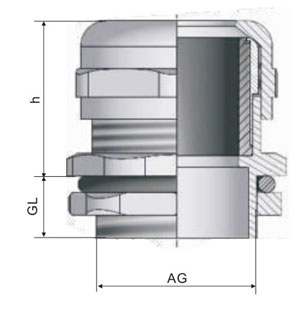

The Drawing of Single Compression Cable Gland:
Company Profile
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
