Marine Cable Gland Supplier Introduction

product description

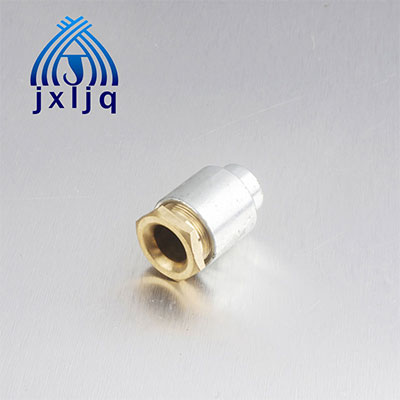

Marine Cable Gland TH Type

Marine Cable Gland Supplier Introduction_Marine Cable Gland

Thread Size: TH

Material: Brass, chromium plated

Product Certification: CE certificationand ISO9001.

Protection Degree: IP54

Working temperature:  -40℃to 110℃, short time up to 120℃.

Function: Can be used in meter,machines,transportation,medicine,and all types of unarmored marine electrical cable fittings.

Technical Parameter:

Product Code Cable Range (mm) d (mm) D (mm) d1(mm) D1(mm) J(mm) J1(mm)
JX-TH8 43592 8 M16*1 13 20 32 3
JX-TH13 43628 13 M20*1 17 24 35 8
JX-TH16 43784 16 M27*1.5 22 32 40 8
JX-TH19 14-18 19 M30*1.5 24 35 42 8
JX-TH24 17-23 24 M35*1.5 30 41 44 8
JX-TH28 22-27 28 M42*2 35 49 46 8
JX-TH34 26-33 34 M47*2 42 53 49 8
JX-TH42 32-41 42 M55*2 50 60 54 8
JX-TH50 40-49 50 M62*2 58 69 56 8
JX-TH58 48-57 58 M71*2 66 80 56 8

The Drawing of Marine Cable Gland:

Marine Cable Gland Supplier Introduction_Cable Gland drawing

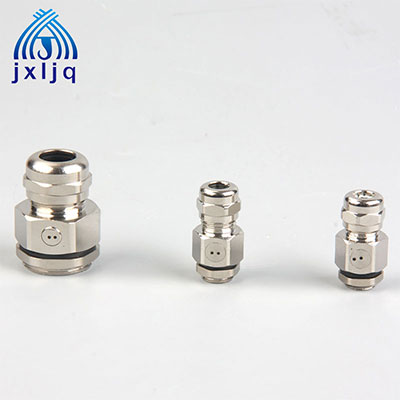

Breathable Cable Gland-Metric Thread

Marine Cable Gland Supplier Introduction_Breathable Cable Gland

Thread Size: Metric Thread

Material:

The joint body parts are made of nickel plated brass, the clamping insert is made of Nylon PA, and the seal is made up of nitrile rubber(NBR) ,using weathering rubber (EDPM) .

Product Certification: CE, ROHS, IP68 and ISO9001.

Protection Degree: in the specific cable range, the using of the O-ring helps tighten head, so that to reach IP68-10 bar pressure.

Working temperature: Static: -40℃to 100℃, Short time to 120℃.

Thread length:

The short thread is suitable for holes in the  board or equipment with inner thread, while the long thread is available for thick planted.

Usage: Fix the machine board with the body, and press the tight head tightly to fix the cable.

Technical Parameter:

Product Code Thread  AG Cable range(mm) Thread Length (mm) Thread O.D (mm) Spanner Size (mm)
JX-M12-BR M12 3-6.5 7 11.9 17
JX-M14-BR M14 43563 7 13.9 19
JX-M16-BR M16 43563 7 15.9 21
JX-M18-BR M18 43595 8 17.9 22
JX-M20-BR M20 43628 8 19.9 24
JX-M22-BR M22 43752 8 21.9 27
JX-M25-BR M25 43754 9 24.9 27
JX-M27-BR M27 13-18 9 26.9 30
JX-M28-BR M28 13-18 9 27.9 30
JX-M30-BR M30 13-18 10 29.9 36
JX-M32-BR M32 15-22 10 31.9 38
JX-M37-BR M36 18-25 12 36.9 42
JX-M40-BR M40 22-30 12 39.9 46

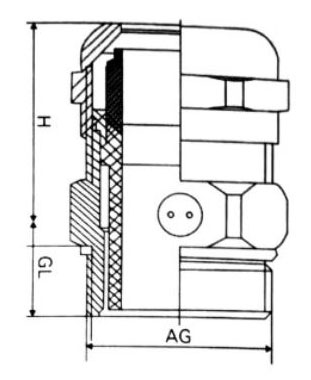

Draft of Drawing:

Marine Cable Gland Supplier Introduction_Breathable Cable Gland drawing
