Hose Connector Supplier introduction

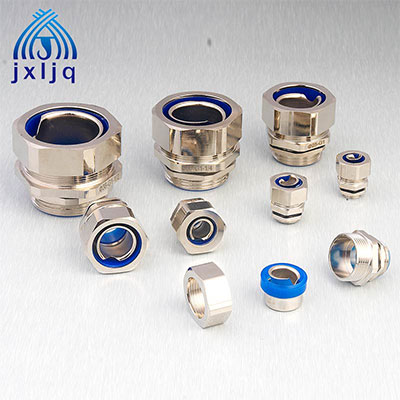

                            Brass Hose Connector

Brass Hose Connector is made of Brass and nickel plated.Brass is an alloy of copper and zinc. Brass has good mechanical properties and wear resistance, high strength, good plasticity, and can withstand cold and hot pressure processing.

Protection Degree: IP67

Thread Type: Metric,PG

Function: Connectors are mainly for SOR-PVC-AS, SPR-PUPAS, FLEXAgraff – PU-AS metal conduits. Can be used in flexible metallic conduit or liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And it protects the electrical wire or cable outside the construction and plant.

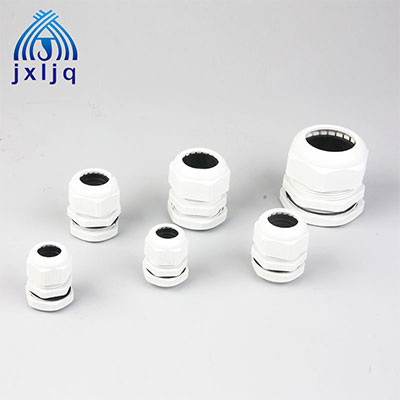

          Nylon Cable Gland Divided Structure - PG Thread

Nylon Cable Gland Divided Structure - PG Thread UL approved- Nylon PA66 for ACF parts, Flammability UL94V-2. Accept to make flammability UL V-0, EPDM rubber is for B.D parts. Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc.

Product Certification: CE certification, ROHS certification and ISO9001.

Protection Degree: IP68- 10 BAR

Working temperature:  -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.

Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.

Colors: Black(RAL9005), Gray(RAL7035), other colors are available upon requests.

More options: Customization is accept. Welcome to inquire.

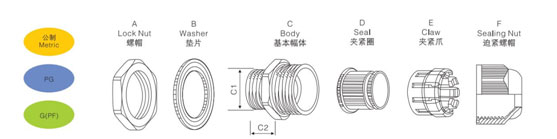

The Drawing of Divided Structure Nylon Cable Gland

Supplier information

YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

To create a better brand image, JIXAING takes good faith for the business, keeps innovative through development and completely implements good service. Strongly believe that our company will be presented itself as a brand-mew image among the enterprises in our country or even in the world.
