Hose connector manufacturer
product description

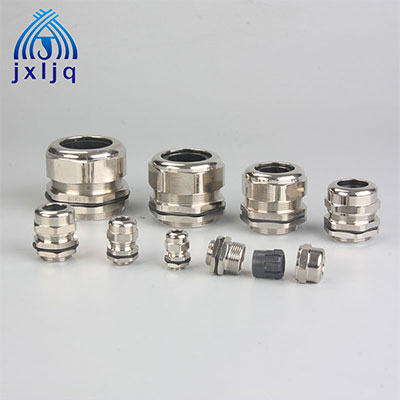

1. Brass Cable Gland MG Series PG Thread
Cap nut: Brass with nickel Plated
Clamping Insert: PA66 ( Flammability UL 94V-2)
Sealing Ring: EPDM
Gland Body: Brass with nickel plated
Certificate: CE, IP68, ISO9001, TUV
Protection Class : IP68-10 BAR
Operating Temperature: -40 DEG to +100 DEG, (short time to 120 DEG); -20 DEG to 80 DEG, (short time to 100 DEG)
Features: The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Function: Metal Cable Gland is cable supporting products, connector cable can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.
Material: Brass with nickel-plated
Working Temperature: -40 deg to 100 deg, short time to 120 deg
Shape: hexagonal or round
Certificate: CE,IP68

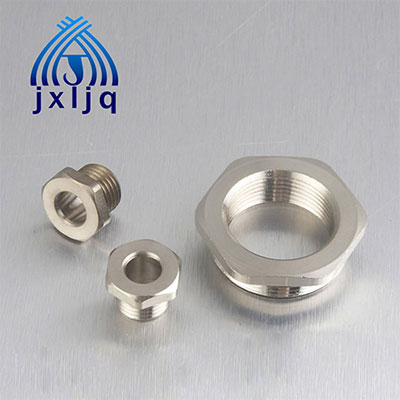

Features: This product can transform different threads OD freely; Change larger Thread to smaller Thread.
Function: A reducer is used if the dimensions of existing tapped Holes are too large for a given gland. It provides a means of connection between cable entry devices and equipment having dissimilar Threads.
Accessories: Locknut, Sealing Washer
Note: We can produce different thread lengths and the other sides of threads (not standard) as the requirement of customer.

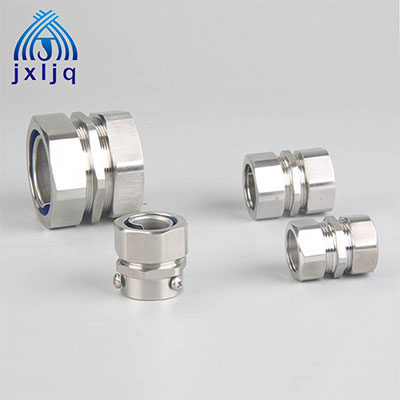

Material: SUS 304
Cover Lock nut: SUS 304 Zinc alloy;
Guarding: TPE;
Seal: Modified rubber
Ferrule : SUS304
Working Temperature: Min -40 Deg to Max +105 Deg
Protection Degree: IP66
Thread Type: Metric,PG ,G
Feature: Waterproof, dust-proof , anti salt,acid and alkali, alcohol, oil, grease and general solvent.
The design of hose sheath and the hose fastening assembly phase, time saving, convenience, strong tensile.
Note: When place the order, pls inform the dimension of the conduit and thread such as JX-15-G1/2’’, one end 15 conduit and the other end G1/2”outer thread.
Manufacturer introduction
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle.
Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.
To create a better brand image, JIXAING takes good faith for the business, keeps innovative through development and completely implements good service. Strongly believe that our company will be presented itself as a brand-mew image among the enterprises in our country or even in the world.
