Explosion-Proof Cable Gland Manufacturer
Explosion-Proof Cable Gland Manufacturer
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Tel: +86-577-61118056
Fax: +86-577-61118055
Mobile: +86-18958708338
Email: jx@jxljq.com
product description

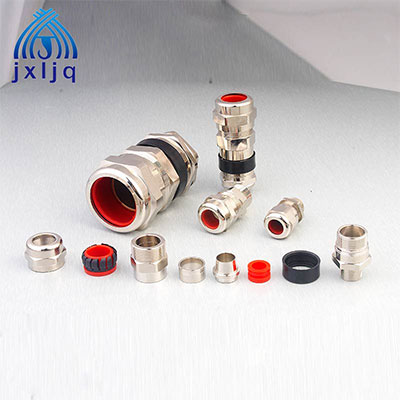

Explosion-Proof Brass Double Sealed Cable Gland JX2 Series
Material: H62,SS304,316
Surface Treatment: Nickel plating, passivation
Sealing material: plastic, Neoprene
Explosion-proof Mark: Exd IIC GB
Fireproof classification: V0(UL94)
Protection Class: Within the clamping range, it can reach to IP66
Temperature Range: Min-60℃，Max 100℃, short time to 120℃
Environmental Conditions: High-temperatire and atrocious
Thread Options: Metric, NPT, G Thread
Note: According the customer’s requirements, the extended GL screws are available.

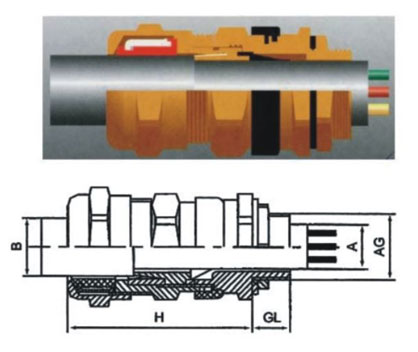

The Drawing:

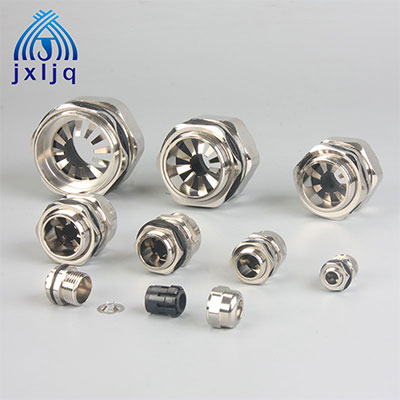

EMC Cable Gland - E Series -G,NPT Thread
Material:
- Cap nut: Brass with nickel Plated
- Clamping Insert: PA66 ( Flammability UL 94V-2)
- Gland Body: Brass with nickel plated
- Certificate: CE, IP68, ISO9001, TUV
- Protection Class : IP68-10 BAR
- Operating Temperature: -40 DEG to +100 DEG, (short time to 120 DEG); -20 DEG to 80 DEG, (short time to 100 DEG)
Features:
The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.When shielded cable entries through this cable gland, the brass material contact chips attached in the cable gland will contact with the metal isolated network in the cable, Then the interfering electromagnetic wave will be leaded to the grounding wire, thus the interference source of electromagnetic wave will be evacuated.
Function:
Metal Cable Gland is cable supporting products, connector cable can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.
EMC Cable Gland – G,NPT thread
| Product Code | Thread AG | Cable range(mm) | Thread O.D.(mm) | Mounting Hole Diameter (mm) | Thread length GL(mm) | Spanner Size (mm) | Std, Pkg (pcs) |
| JX-E.G1/4A-EMC | G1/4’’ | 3-5.3 | 13.157 | 13.2-13.4 | 8 | 17/17 | 10 |
| JX-E.G1/4B-EMC | 4.5-7.8 | 13.157 | 13.2-13.4 | 8 | 17/17 | 10 | |
| JX-E.G3/8A-EMC | G3/8’’ | 4-7 | 16.662 | 16.7-16.9 | 9 | 22/22 | 10 |
| JX-E.G3/8B-EMC | 6-10 | 16.662 | 16.7-16.9 | 9 | 22/22 | 10 | |
| JX-E.G1/2A-EMC | G1/2’’ | 7-11 | 20.955 | 21-21.2 | 9.5 | 26/26 | 10 |
| JX-E.G1/2B-EMC | 9-14 | 20.955 | 21-21.2 | 9.5 | 26/26 |
