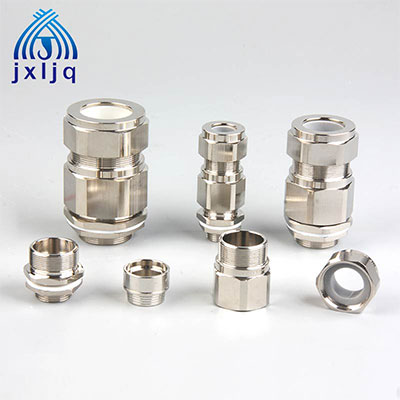

                                  CW Cable Gland

CW Cable Gland Manufacturer_CW Cable Gland

Type: CW (Single Compression Gland)

Material: Brass with or without nickel plated

Standard: BS6121

Protection Rate: IP66 & IP67

Temperature: -20°C- +80°C

Thread Options: Metric, NPT, BSP & PG

Application: For indoor or outdoor use with all types of SWA Cables.

Accessories: Matching accessories available like PVC Shrouds, locknuts and earth tag

Function: CW Type glands provide a seal on the outer sheath and a specific armour clamp for armored cable. The armor clam provides an electrical bond for armor cable and the gland.

Code Entry Thread   Cable Dia Thread length L(mm)   Entry Hole Size (mm)   Armor Braid Hexagon Dimensions “H” Length “ L” (mm)
  Metric NPT   Metric NPT Metric NPT
      Outer A         Size Size
JX-CW-16A M16/M20 1/2’’ 43325 15 15 17/21 22 0.9/1.25 0.05/0.8 H25*27 59
JX-CW-16B M16/M20 1/2’’ 12-15.1 15 15 17/21 22 0.9/1.25 0.05/0.8 H25*27 59
JX-CW-20A M20 1/2’’/ 3/4’’ 13-17.5 15 15/16 21 22/27 0.9/1.25 0.05/0.8 H31*34 65
JX-CW-20B M20 1/2’’/ 3/4’’ 16-19.5 15 15/16 21 22/27 0.9/1.25 0.05/0.8 H31*34 65
JX-CW-25A M25 3/4’’ / 1’’ 17.5-22 15 16/18 26 27/34 1.25/1.6 0.05/0.8 H36*39 70
JX-CW-25B M25 3/4’’ / 1’’ 21-26 15 16/18 26 27/34 1.25/1.6 0.05/0.8 H36*39 70
JX-CW-32A M32 1’’ / 1.1/4’’ 22-28 15 18/19 33 34/43 1.6/2.0 0.05/1.2 H45*49 74
JX-CW-32B M32 1’’ / 1.1/4’’ 27-32 15 18/19 33 34/43 1.6/2.0 0.05/1.2 H55*59 74
JX-CW-40A M40 1.1/4’’ / 1.1/2’’ 30-35 15 19/21 41 43/50 1.6/2.0 0.05/1.2 H55*59 82
JX-CW-40B M40 1.1/4’’ / 1.1/2’’ 35.1-40 15 19/21 41 43/50 1.6/2.0 0.05/1.2 H68*73 82
JX-CW-50A M50 1.1/2’’ / 2’’ 38-45 15 21/24 51 50/62 1.8/2.5 0.05/1.2 H68*73 88
JX-CW-50B M50 1.1/2’’ / 2’’ 43-50 15 21/24 51 50/62 1.8/2.5 0.05/1.2 H82*88 88
JX-CW63A M63 2’’ / 2’’ 48-53 15 24/24 64 62/74 1.8/2.5 0.05/1.2 H82*88 100
JX-CW63B M63 2’’ / 2.1/2’’ 51-56 15 24/27 64 62/74 1.8/2.5 0.05/1.2 H82*88 100
JX-CW63C M63 2’’ / 2.1/2’’ 55-60 15 24/27 64 62/74 1.8/2.5 0.05/1.2 H98*106 100
JX-CW75A M75 2.1/2’’ / 2.1/2’’ 56-62 20 27/27 76 74/90 1.8/2.5 0.05/1.2 H98*106 121
JX-CW75B M75 2.1/2’’ / 2.1/2’’ 62.1-66 20 27/27 76 74/90 1.8/2.5 0.05/1.2 H98*106 121
JX-CW75C M75 2.1/2’’ / 3’’ 66.1-70 20 27/30 76 74/90 1.8/2.5 0.05/1.2 H98*106 121
JX-CW75D M75 2.1/2’’ / 3’’ 68-75 20 27/30 76 74/90 1.8/2.5 0.05/1.2 H98*106 121
JX-CW90A M90 3’’ / 3.1/2’’ 74-83 25 30/32 91 90/102 1.8/3.0 0.05/1.6 H110*120 133
JX-CW90B M90 3’’ / 3.1/2’’ 82-90 25 30/32 91 90/102 1.8/3.0 0.05/1.6 H110*120 133
JX-CW100A M100 3.1/2’’ / 4’’ 89-94 25 30 101 102/116 1.8/3.0 0.05/1.6 H120*130 145

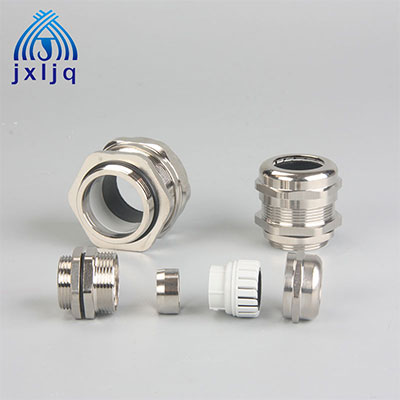

                          EMC Cable Gland - F Series

CW Cable Gland Manufacturer_EMC Cable Gland

Material:

  • Cap nut: Brass with nickel Plated
  • Gland Body: Brass with nickel plated
  • Fastener: Nylon/ Plastic
  • O-ring & Clamping part: NBR

(Free of halogen, phosphor and cadmium.)

Certificate: CE, IP68, ISO9001, Rohs

Protection Class : IP68-10 BAR

Operating Temperature: -40 DEG to +100 DEG, (short time to 120 DEG)

Features:

The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.When shielded cable entries through this cable gland, the brass material contact chips attached in the cable gland will contact with the metal isolated network in the cable, Then the interfering electromagnetic wave will be leaded to the grounding wire, thus the interference source of electromagnetic wave will be evacuated.

Function:

Metal Cable Gland is cable supporting products, connector cable  can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.

Product Code Thread AG Cable range(mm) Height (mm) Thread length GL(mm) Spanner Size (mm) Diagonal Size (mm)
JX-F.M20A-EMC M20*1.5 6-12 6 23.5 22 24.5
JX-F.M20B-EMC   5-9 6 23.5 22 24.6
JX-F.M20C-EMC   10-14 6.5 24 24 26.6
JX-F.M20D-EMC   7-12 6.5 24 24 26.6
JX-F.M25A-EMC M25*1.5 13-18 7 25.5 30 34
JX-F.M25B-EMC   9-16 7 25.5 30 34
JX-F.M32A-EMC M32*1.5 18-25 8 32 40 44.5
JX-F.M32B-EMC   13-20 8 32 40 44.5
JX-F.M40A-EMC M40*1.5 22-32 8 37 50 55
JX-F.M40B-EMC   20-26 8 37 50 55
JX-F.M50A-EMC M50*1.5 32-38 9 28 57 62
JX-F.M50B-EMC   25-31 9 28 57 62
JX-F.M63A-EMC M63*1.5 37-44 10 23 65 72
JX-F.M63B-EMC   29-35 10 38 65 72
