Curved Connector supplier

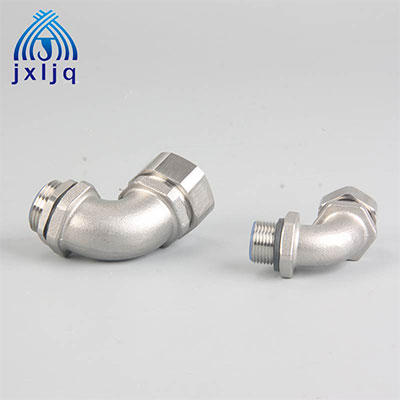

                    90,45 Degree Curved Connector

90,45 Degree Curved Connector is made of Brass and nickel plated. Brass is an alloy of copper and zinc. Brass has good mechanical properties and wear resistance, high strength, good plasticity, and can withstand cold and hot pressure processing.

Protection Degree: IP67

Note: One end is connected to the conduit and the other end is connected to the chest, Electricity machine and other equipment in 90 degree or in 45 degree.

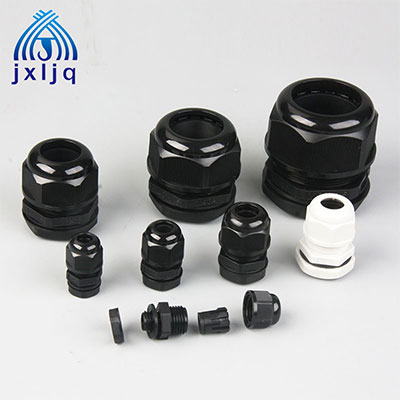

                 Nylon Cable Gland - Metric Thread

Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.E.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).

Product Certification: CE certification, ROHS certification and ISO9001.

Protection Degree: IP68- 10 BAR

Working temperature:  -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.

Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.

Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.

More options: Customization is accept.Welcome to inquire.

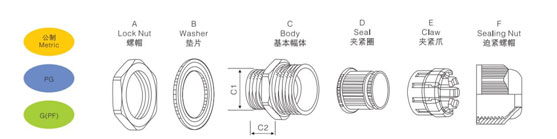

The Drawing of Divided Structure Nylon Cable Gland

Supplier information

YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.

To create a better brand image, JIXAING takes good faith for the business, keeps innovative through development and completely implements good service. Strongly believe that our company will be presented itself as a brand-mew image among the enterprises in our country or even in the world.
