Cable connector manufacturer recommended

Yueqing Jixiang Connector Co., Ltd. is a professional manufacturer of various card cover gland and cable connectors. The main products are metal cable connectors and nylon cable connectors. Next, introduce two of the products.

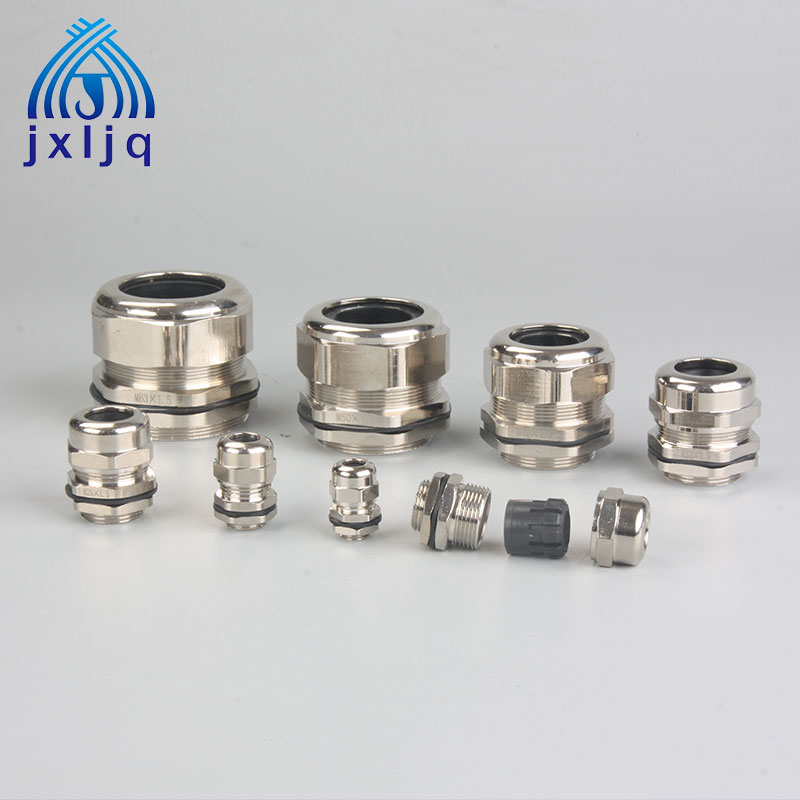

1. Brass cable connector MG series PG thread

Brass cable gland MG series PG thread nut cap is made of nickel-plated brass. The clamping insert is made of PA66 (flammability UL 94V-2), the sealing ring is EPDM, and the gland is brass-plated.

Certificate: CE, IP68, ISO9001, TUV

Protection level: IP68-10 BAR

Operating temperature: -40° to + 100°, (short time to 120°); -20° to 80°, (short time to 100°)

Features: Excellent design of the jaws and seals, the sealing nut has a "click" sound and reopens to securely secure the cable and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.

Function: The metal cable connector is a cable support product that can lock the connector cable. The other end of the device can be connected to the device through the box, or it can be selected according to the inlet and outlet of the internally threaded electrical device.

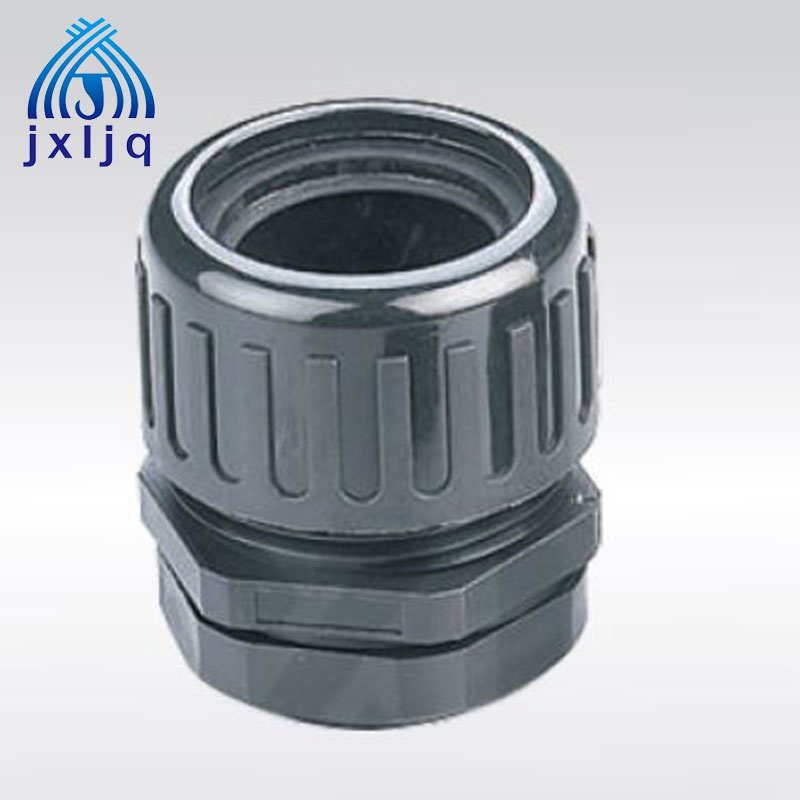

2. Nylon executive accessories

Materials: UL approved nylon PA66 (flammable UL 94V-2) for ACF parts; (accepted to make UL V-0 flammable).

EPDM rubber for BD parts; (received to make super rubber: high temperature resistant rubber, strong acid/strong alkali, etc.).

Protection level: IP68-10 BAR

Operating temperature: -40 ° C to 100 ° C in static, transient heat resistance up to 120 ° C, dynamic -20 ° C to 80 ° C, instantaneous heat resistance up to 100 ° C.

Thread: metric, PG and G threads

Features: Powerful waterproof fittings create the best tightening force with very high active compression to resist the entry of high pressure water jets at any angle, which provides 100% dynamic waterproof and airtight performance over the widest range of bellows .

Manufacturer information introduction

Yueqing Jixiang Connector Co., Ltd. integrates R&D, production and sales in Hong Kong. Firmly believe that the market is the key to business development. Therefore, always regard high quality as the basic principle of the company. The company's products are widely used in electronics, machinery, instruments, electrical and other industrial fields. They are also certified to CE, IP68, ROHS, EX, ATEX, TUV and ISO9001. Auspicious cable glands are exported to Southeast Asia and other developed countries and regions with their superb technology and excellent quality. At the same time, our products have been recognized and praised by domestic and foreign customers.

In order to create a better brand image, JIXAING is based on honesty, innovation through development, and comprehensive implementation of quality services. I am very confident that our company will become the brand image of our country and even the world.
