Brass Screw Cap supplier

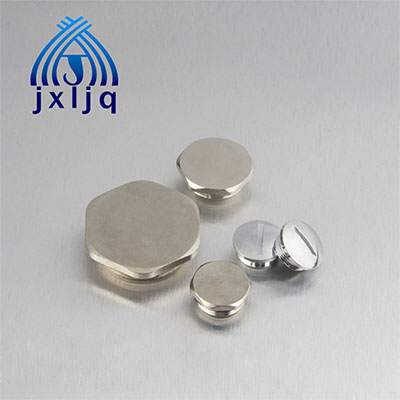

1. Round Brass Screw Cap

Brass Screw Cap supplier_Round Brass Screw Cap

Round Brass Screw Cap are made of nickel-plated brass. Brass has good thermal conductivity. If it is embedded with a heated copper nut, on the one hand, the copper nut can heat up quickly to speed up the work efficiency. On the other hand, the heated copper nut can quickly transfer heat to the plastic part. The periphery of the plastic hole is softened, which facilitates pressing into the hole.

Shape: Round

Features: In order to close the reserved holes or extra holes, make the product beautiful,it can keep waterproof, dust-proof, salt, acid, alcohol, oil and solvent resistant

Protection: IP65

Certificate: CE

Note: Customization is available. Welcome to inquire.

The Drawing of Screw Cap ( round)

Brass Screw Cap supplier_Round Brass Screw Cap drawing




2. Nylon Cable Gland United Structure -PG Thread

Brass Screw Cap supplier_Nylon Cable Gland United Structure

SThread Size: PG Thread

Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).

Product Certification: CE certification, ROHS certification and ISO9001.

Protection Degree: IP68- 10 BAR

Working temperature:  -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.

Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.

Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.

More options: Customization is accept.Welcome to inquire.

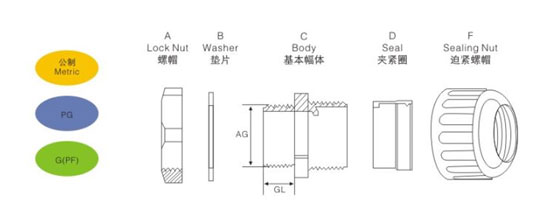

The Drawing of United Structure Nylon Cable Gland

Brass Screw Cap supplier_Nylon Cable Gland United Structure drawing




supplier introduction

YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.

Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.

Tel: +86-577-61118056

Fax: +86-577-61118055

Mobile: +86-18958708338

Email: jx@jxljq.com
