Thread Size: PG Thread
Material: UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc).
Product Certification: CE certification, ROHS certification and ISO9001.
Protection Degree: IP68- 10 BAR
Working temperature: -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃to 80℃in dynamic state, or instantaneous heat resistance up to 100℃.
Characteristics: The claws and seals of excellent design,sealing nut hace a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.
Colors: Black(RAL9005),Gray(RAL7035),other colors are available upon requests.
More options: Customization is accept.Welcome to inquire.
| United Structure Nylon Cable Gland-- PGthread | |||||
| Product Code | Thread AG | Cable range(mm) | Thread O.D. C1(mm) | Thread length GL(mm) | Spanner Size (mm) |
| JX-NLPG7A-UN | PG7 | 3-6.5 | 12.5 | 8 | 17/15 |
| JX-NLPG7B-UN | 3-5.5 | 12.5 | 8 | 17/19 | |
| JX-NLPG7C-UN | 3-5.5 | 12.5 | 15 | 17/19 | |
| JX-NLPG7D-UN | 4-8 | 12.5 | 8 | 17/19 | |
| JX-NLPG7E-UN | 4-8 | 12.5 | 15 | 17/19 | |
| JX-NLPG9A-UN | PG9 | 3-5.5 | 15.2 | 8.2 | 22/19 |
| JX-NLPG9B-UN | 3-5.5 | 15.2 | 15 | 22/19 | |
| JX-NLPG9C-UN | 4-8 | 15.2 | 8.2 | 22/19 | |
| JX-NLPG9D-UN | 4-8 | 15.2 | 15 | 22/19 | |
| JX-NLPG11A-UN | PG11 | 3-7 | 18.6 | 10 | 24/22 |
| JX-NLPG11B-UN | 3-7 | 18.6 | 15 | 24/22 | |
| JX-NLPG11C-UN | 5-10 | 18.6 | 10 | 24/22 | |
| JX-NLPG11D-UN | 5-10 | 18.6 | 15 | 24/22 | |
| JX-NLPG13.5A-UN | PG13.5 | 5-9 | 20.4 | 10 | 27/24 |
| JX-NLPG13.5B-UN | 5-9 | 20.4 | 15 | 27/24 | |
| JX-NLPG13.5C-UN | 6-12.5 | 20.4 | 10 | 27/24 | |
| JX-NLPG13.5D-UN | 6-12.5 | 20.4 | 15 | 27/24 | |
| JX-NLPG16A-UN | PG16 | 5-11 | 22.5 | 10.8 | 30/27 |
| JX-NLPG16B-UN | 5-11 | 22.5 | 15 | 30/27 | |
| JX-NLPG16C-UN | 8.5-14 | 22.5 | 10.8 | 30/27 | |
| JX-NLPG16D-UN | 8.5-14 | 22.5 | 15 | 30/27 | |
| JX-NLPG19A-UN | PG19 | 5-11 | 24 | 11 | 30/27 |
| JX-NLPG19B-UN | 5-11 | 24 | 15 | 30/27 | |
| JX-NLPG19C-UN | 8.5-14 | 24 | 11 | 30/27 | |
| JX-NLPG19D-UN | 8.5-14 | 24 | 15 | 30/27 | |
| JX-NLPG21A-UN | PG21 | 5-11 | 28.3 | 12 | 36/33 |
| JX-NLPG21B-UN | 5-11 | 28.3 | 15 | 36/33 | |
| JX-NLPG21C-UN | 12.5-18 | 28.3 | 12 | 36/33 | |
| JX-NLPG21D-UN | 12.5-18 | 28.3 | 15 | 36/33 | |
| JX-NLPG25A-UN | PG25 | 14-20 | 30 | 13 | 36/37 |
| JX-NLPG25B-UN | 14-20 | 30 | 15 | 36/37 | |
| JX-NLPG29A-UN | PG29 | 14-22 | 37 | 12 | 46/41 |
| JX-NLPG29B-UN | 14-22 | 37 | 15 | 46/41 | |
| JX-NLPG29C-UN | 17-25 | 37 | 12 | 46/41 | |
| JX-NLPG29D-UN | 17-25 | 37 | 15 | 46/41 | |
| JX-NLPG36A-UN | PG36 | 17-25.5 | 47 | 14 | 57/52 |
| JX-NLPG36B-UN | 24-32 | 47 | 14 | 57/52 | |
| JX-NLPG42A-UN | PG42 | 25-32 | 54 | 15 | 64/62 |
| JX-NLPG42B-UN | 30-41 | 54 | 15 | 64/62 | |
| JX-NLPG48A-UN | PG48 | 29-38 | 59.3 | 18 | 70/65 |
| JX-NLPG48B-UN | 35-45.5 | 59.3 | 18 | 70/65 | |

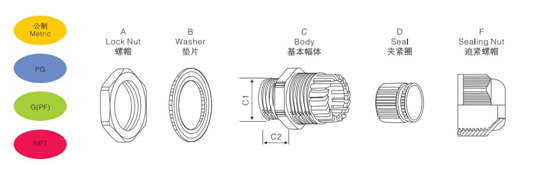

The Drawing of United Structure Nylon Cable Gland
