Brass Cable Gland Supplier
Company Profile
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Tel: +86-577-61118056
Fax: +86-577-61118055
Mobile: +86-18958708338
Email: jx@jxljq.com
product description

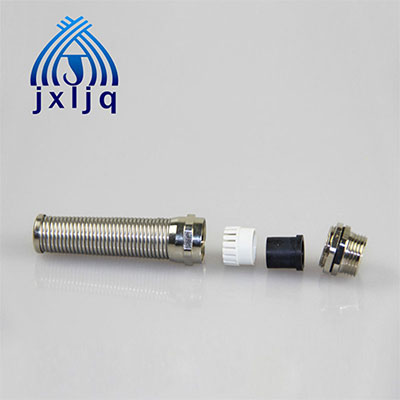

Brass Cable Gland With Strain Relief
Material:
- Body: brass nickel-plated
- Cap nut: brass nickel-plated
- Clamping Insert: polyamide,Pa6 V2
- Sealing ring: NBR
- O-ring: NBR
Product Certification: CE certificationand ISO9001.
Protection Degree: IP67
Working temperature: -40℃to 100℃, short time up to 120℃.
Function:
1. Can be used in flexible metallic conduit or liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.
2.Use to positively bond the conduit to a box or enclosure.
Technical Parameter:
| Product Code | Thread AG | Cable range(mm) | Body Height (mm) | Thread length GL(mm) | Spanner Size (mm) |
| JX-M12A-FL | M12*1.5 | 3-6.5 | 53 | 8 | 14 |
| JX-M12B-FL | M12*1.5 | 2-5 | 53 | 8 | 14 |
| JX-M16A-FL | M16*1.5 | 4-8 | 66 | 8.2 | 17 |
| JX-M16B-FL | M16*1.5 | 2-6 | 66 | 8.2 | 17 |
| JX-M20A-FL | M20*1.5 | 6.7-12 | 88 | 9 | 22 |
| JX-M20B-FL | M20*1.5 | 5-9 | 88 | 9 | 22 |
| JX-M25A-FL | M25*1.5 | 13-18 | 111 | 10 | 30 |
| JX-M25B-FL | M25*1.5 | 9-16 | 111 | 10 | 30 |

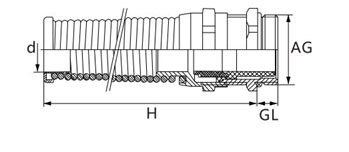

The Drawing of Flexible Cable Gland:

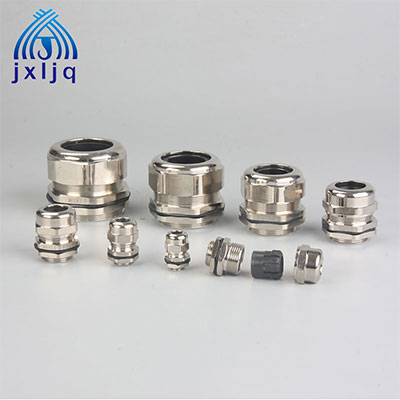

Brass Cable Gland MG Series G,NPT Thread
Cap nut: Brass with nickel Plated
Clamping Insert: PA66 ( Flammability UL 94V-2)
Sealing Ring: EPDM
Gland Body: Brass with nickel plated
Certificate: CE, IP68, ISO9001, TUV
Protection Class: IP68-10 BAR
Operating Temperature: -40 DEG to +100 DEG, (short time to 120 DEG); -20 DEG to 80 DEG, (short time to 100 DEG)
Features:
The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Function:
Metal Cable Gland is cable supporting products, connector cable can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.
Technical Parameter:
| Product Code | Thread AG | Cable range(mm) | Thread O.D.(mm) | Mounting Hole Diameter (mm) | Thread length GL(mm) | Spanner Size (mm) | Std, Pkg (pcs) |
| JX-G1/4A-MG | G1/4’’ | 3-5.3 | 13.157 | 13.2-13.4 | 8 | 17/17 | 10 |
| JX-G1/4B-MG | 4.5-7.8 | 13.157 | 13.2-13.4 | 8 | 17/17 | 10 | |
| JX-G3/8A-MG | G3/8’’ | 4-7 | 16.662 | 16.7-16.9 | 9 | 22/22 | 10 |
| JX-G3/8B-MG | 6-10 | 16.662 | 16.7-16.9 | 9 | 22/22 | 10 | |
| JX-G1/2A-MG | G1/2’’ | 7-11 | 20.955 | 21-21.2 | 9.5 | 26/26 | 10 |
| JX-G1/2B-MG | 9-14 | 20.955 | 21-21.2 | 9.5 | 26/26 | 10 | |
| JX-G3/4A-MG | G3/4’’ | 12-16 | 26.411 | 26.5-26.8 | 12 | 32/32 | 10 |
| JX-G3/4B-MG | 14-18 | 26.411 | 26.5-26.8 | 12 | 32/32 | 10 | |
| JX-G1A-MG | G1’’ | 16-22 | 33.249 | 33.3-33.6 | 12.5 | 41/41 | 10 |
| JX-G1B-MG | 18-25 | 33.249 | 33.3-33.6 | 12.5 | 41/41 | 10 | |
| JX-G1 1/4A-MG | G1 1/4’’ | 21-25 | 41.91 | 42-42.3 | 15 | 50/50 | 5 |
| JX-G1 1/4B-MG | 24-30 | 41.91 | 42-42.3 | 15 | 50/50 | 5 | |
| JX-G1 1/2A-MG | G1 1/2’’ | 26-32 | 47.803 | 48-48.4 | 15 | 60/60 | 2 |
| JX-G1 1/2B-MG | 31-41 | 47.803 | 48-48.4 | 15 | 60/60 | 2 | |
| JX-G2A-MG | G2’’ | 40-46 | 59.614 | 60-60.4 | 15 | 73/73 | 2 |
| JX-G2B-MG | 44-51 | 59.614 | 60-60.4 | 15 | 73/73 | 2 | |
| JX-G2 1/2A-MG | G2 1/2’’ | 50-56 | 75.184 | 75.2-75.6 | 18 | 85/88 | 1 |
| JX-G2 1/2B-MG | 56-66 | 75.184 | 75.2-75.6 | 18 | 85/88 | 1 | |
| JX-NPT3/8A-NA | NPT3/8’’ | 4-7 | 17.055 | 17.1-17.3 | 13 | 22/22 | 10 |
| JX-NPT3/8B-MG | 6-10 | 17.055 | 17.1-17.3 | 13 | 22/22 | 10 | |
| JX-NPT1/2A-MG | NPT1/2’’ | 7-11 | 21.223 | 21-21.2 | 13 | 26/26 | 10 |
| JX-NPT1/2B-MG | 9-14 | 21.223 | 21-21.2 | 13 | 26/26 | 10 | |
| JX-NPT3/4A-MG | NPT3/4’’ | 12-16 | 26.568 | 26.5-26.8 | 14 | 32/32 | 10 |
| JX-NPT3/4B-MG | 14-18 | 26.568 | 26.5-26.8 | 14 | 32/32 | 10 | |
| JX-NPT1A-MG | NPT1’’ | 16-22 | 33.227 | 33.3-33.6 | 15 | 41/41 | 10 |
| JX-NPT1B-MG | 18-25 | 33.227 | 33.3-33.6 | 15 | 41/41 | 10 | |
| JX-NPT1 1/4A-MG | NPT1 1/4’’ | 21-25 | 41.984 | 42-42.3 | 15 | 50/50 | 5 |
| JX-NPT1 1/4B-MG | 24-30 | 41.984 | 42-42.3 | 15 | 50/50 | 5 |
