Outdoor Electric Cable Connector

Made from Nylon PA66 can resistant to Salt water, gasoline, alcohol, oil, grease, easter keyton ether, benzine, common solvent, weak acids & weak alkalies.

ltem Name Outdoor Electric Cable Connector
Material Nylon PA66 + Silicon Rubber
Approvals IP68, ISO9000, CE, UL-94VO
Working Temperature -40°C~+105°C
Inquiry Now >>

Excellent Materials

Simple installation

Tension locking

Waterproof,Dustproof

Efficient work

Precision design

Product Description

Product Details

Protection grade: IP68

Temperature resistance: -40°C to 105℃

Storage temperature: room temper ature

Material: Nylon PA66 (flame retardant)

O-ring material: silicone(environmental protection material)

Applicable cable scope: Φ3-6.5 Φ4-8 Φ7-10

Wiring method: screw crimping spring thpe

Conductor material: 59-1 brass nickel plating

Applicable line square number: 0.5~2.5mm

Test voltage: 2500V

Rated voltage/current: 400V/25A

Flame retardant grade:UL-94V0

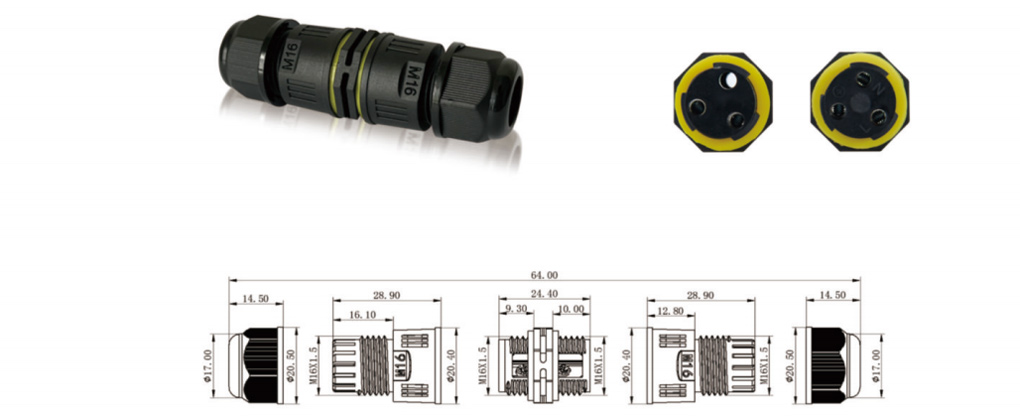

JX-KCM16

Model

M16-01

M16-02

M16-03

N16-05

M16-06

M16-07

Quantity/bag

20

20

20

20

20

20

core

2芯 Core

2芯 Core

2芯 Core

3芯 Core

3芯 Core

3芯 Core

Cable range(mm)

3-6.5

4-8

7-10

3-6.5

4-8

7-10

Per Pcs weight(g)

17.2

17

16.2

19.4

18.8

18.2

One carton weight(kg)

17.6

17.2

16.6

19.6

19

18.5

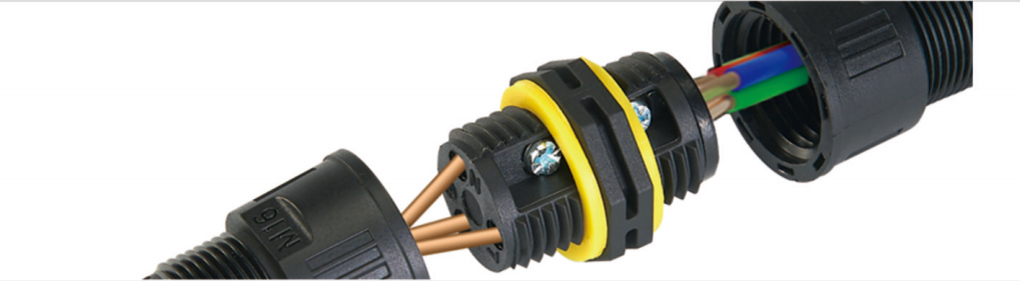

1.Insert the wire into the hole of the copper piece, then fasten thehandle (as shown)

2.Install thelocking torque of 0.6-0.8 N.M, not too large torque, affect product performance

3,Assem bly gap should beless than 0.2 mm, assembly should be tight, not loose

4, Optional wire clip plug specifications (as shown in Figure 2)

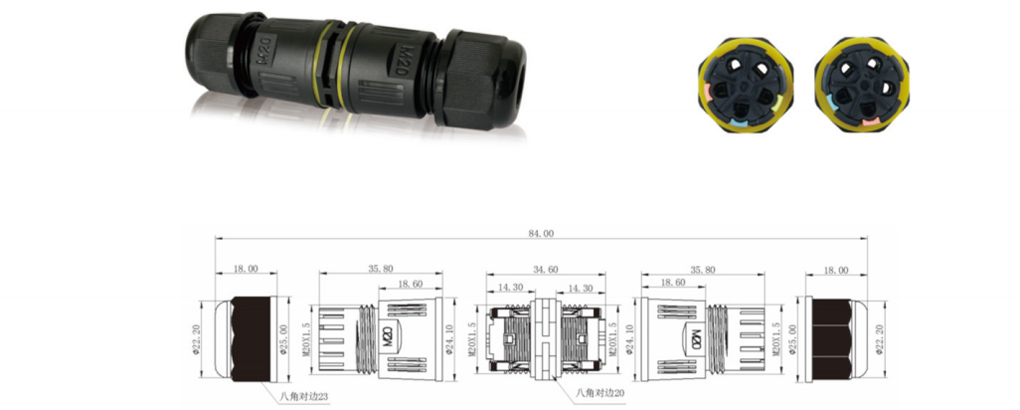

JX-KCM20

Model

M20-02

M20-02

M20-03

M20-03

Quantity/bag

20

20

20

20

core

2芯 Core

2芯 Core

3芯 Core

3芯 Core

Cable range(mm)

5-8

9-12

5-8

9-12

Per Pcs weight(g)

22.7

22.7

22.7

22.7

One carton weight(kg)

555

555

555

555

1.Insert the wire into the hole of the copper piece, then fasten the handle(as shown)

2.Install the locking torque of 0.6-0.8 N.M, not too large torque, affect product performance

3,Assembly gap should be less than 0.2 mm, assembly should be tight, not loose

4, Optional wire clip plug specifications(as shown in Figure )

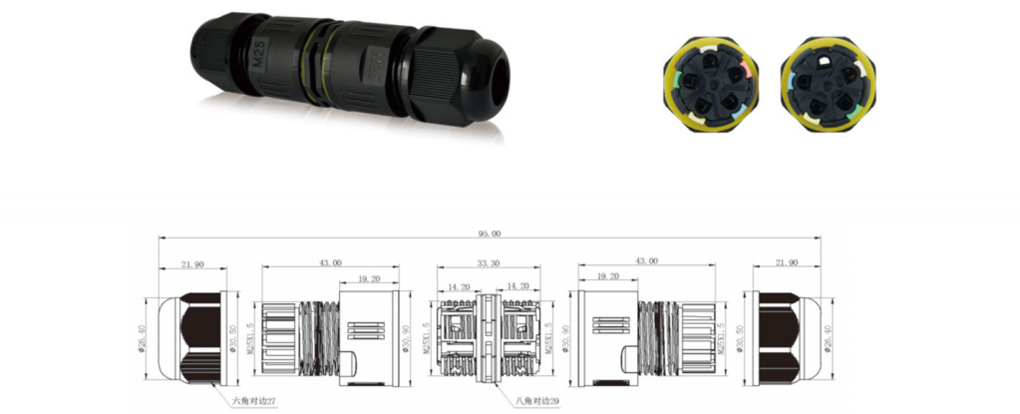

JX-KCM25

Model

M25-02

5-8

M25-02

9-12

M25-02

10-14

M25-03

5-8

M25-03

9-12

M25-03

10-14

M25-04

5-8

M25-04

9-12

M25-04

10-14

M25-05

5-8

M25-05

9-12

M25-05

10-14

Quantity/bag

10

10

10

10

10

10

10

10

10

10

10

10

core

2芯 core

2芯 core

3芯 core

3芯 core

3芯 core

4芯 core

4芯 core

4芯 core

5芯 core

5芯 core

5芯 Core

5芯 Core

Cable range(mm)

5-8

9-12

10-14

5-8

9-12

10-14

5-8

9-12

10-14

5-8

9-12

10-14

Per Pcs weight (g)

44.5

44.5

44.5

44.5

44.5

44.5

44.5

44.5

44.5

44.5

44.5

44.5

one carton weight (kg)

449

449

449

449

449

449

449

449

449

449

449

449

1.Insert the wire into the hole of the copper piece, then fasten the handle (as shown)

2.Install the locking torque of 0.6-0.8 n.M, not too large torque, affect product performance

3,Assembly gap should be less than 0.2 mm, assembly should be tight, not loose

4, Optional wire clip plug specifications (as shown in Figure 2)

Product Image

Non-deformable Waterproof

PA66 Materialflame Retardant

Sealing Nut

To reach the high quality production standard, we make each step of production strictly. The inner thread is smooth without burr.

Seal

Smooth surface without burr Can work underwater for a long time Protect from being corrupted.

Threaded gland body

Guarantee the safety of connection simple to tight the screw.

Retaining ring

Easy to assemble seal and clamp

Housing

Can clamp the wires tightly Have a strong tensile resistance Bigger cable range

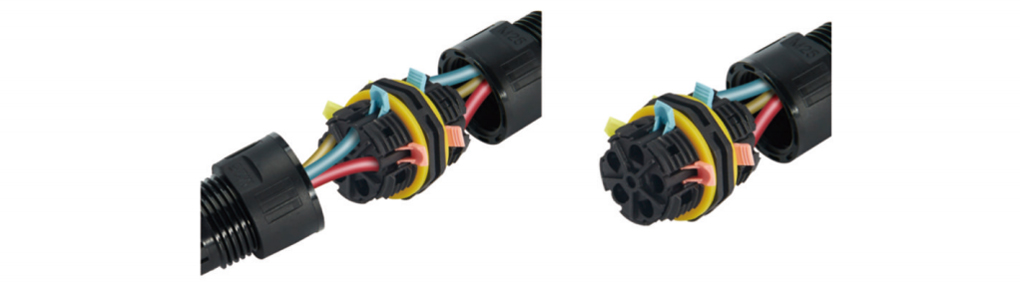

Product Connection

01
Insert one end of the cable
02
Connect the terminals at both ends
03
Press the retaining ring
04
Tighten both ends
