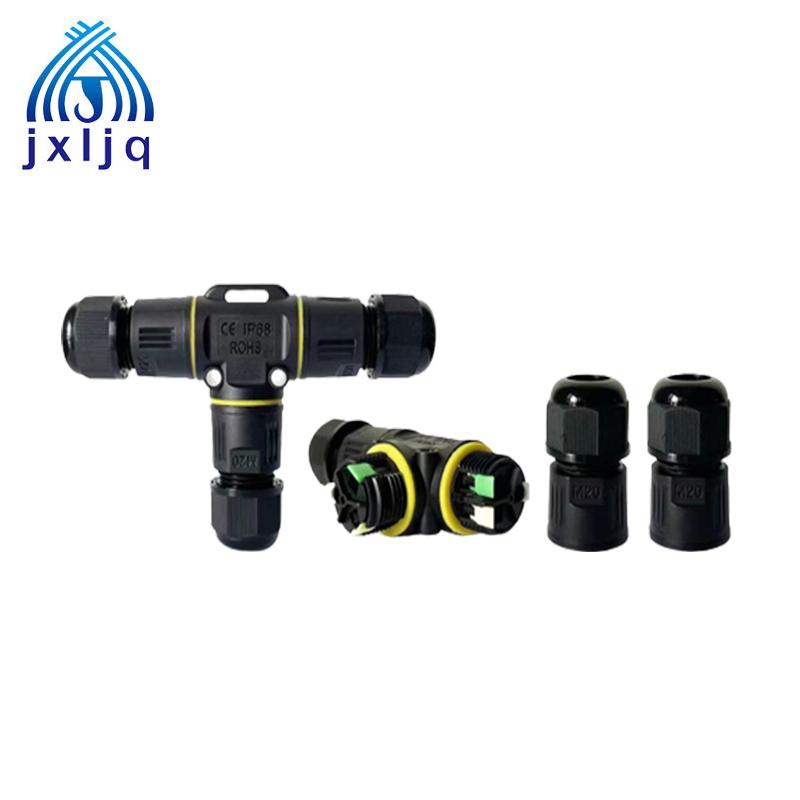

Split Waterproof Connector
Split Waterproof Connector

Split Waterproof Connector

Description

Made from Nylon PA66 can resistant to Salt water, gasoline, alcohol, oil, grease, easter keyton ether, benzine, common solvent, weak acids & weak alkalies.

Inquiry Now >>

Product Description

JX-ZXFTM25

Model

FTM25-2

5-8

FTM25-22

9-12

FTM25-23

10-14

FTM25-24

5-8

FTM25-25

9-12

FTM25-26

10-14

Quantity/bag

10

10

10

10

10

10

core

2芯

2芯

2芯

3芯

3芯

3芯

Cable range(mm)

5-8

9-12

10-14

5-8

9-12

10-14

Per Pcs weight(g)

44.8

43.2

42.2

46.8

45.4

44.2

One carton weight(kg)

17.2

16.7

16.3

17.9

17.5

17

1.Insert the wire into the hole of the copper piece, then fasten the handle (as shown)

2.Install the locking torque of 0.6-0.8 N.M, not too large torque, affect product performance

3,Assembly gap should be less than 0.2 mm, assembly should be tight, not loose

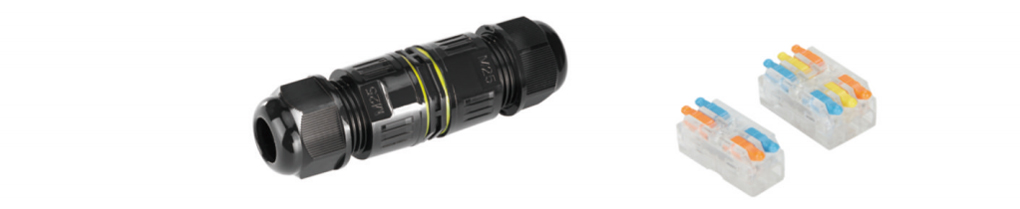

4,Optional wire clip plug specifications (as shown in Figure)

Protection Grade: lP68

temperature resistance: -40°℃ to 105°℃

storagetemperature: room temper

main material: nylon PA66 (flame retardant)

o-ring material: silicone (environmental protection material)

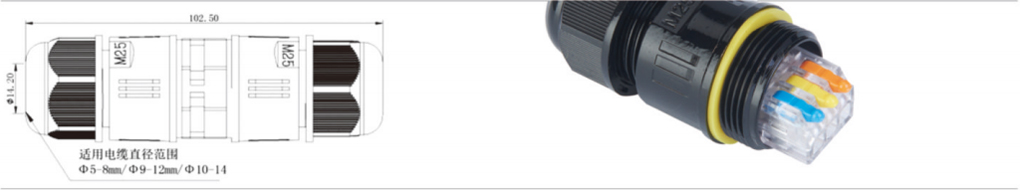

applicable cable scope: Φ3-6.5 Φ9-12 Φ10-14

wiring method: screw crimping

conductor material: Y2 brass nickel plated high quality stainless steel

Applicable Line Square number: 0.5~2.5mm

test voltage: 2500V

rated voltage/current: 400V/25A

flame retardant grade: V0

package quantity: 10pcs per bag,24 bags per carton,

                              carton size: 49cm*35cm*23cm
