Jixiang Connector is a manufacturer of brass cable glands and nylon cable glands,which are used in new energy power, transportation, shipping, petroleum, lighting, mechanical automation and other fields.
Double Sealed EX Stainless Steel Cable Gland
Material: SU304 for Body
Seal: High Temperature silicone
Protection Class: Within the clamping range, it can reach to IP66
Temperature Range: Min-40 °C，Max 100 °C, short time to 120°C
EX Clamp Sealing Joint JX3
Material: Brass or stainless steel, brass with nickel plated
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II is equal to II 2G EXE II (European standard) Exd II equal to II 2G Exd II (European standard).
EX Clamp Sealing Joint JX5
Material: Brass or stainless steel, brass with nickel plated
Cable: With packing seal
Protection Class: IP66
Explosion Mark: Exd II
Ex Clamp Sealing Joint JX4 Series
Material: H62, SS304, 316
Surface Treatment: Nickel Plating
Sealing Material: silastic, Neoprene
Explosion-proof Mark: Exd II
Protection Grade: IP66-10 Bars, (screwed – on part)
Explosion-Proof Cable Gland JX1 Series
Material: H62, SS304,316
Surface Treatment: Nickel Plating, passivation
Sealing Material: silastic, Neoprene
Explosion-proof Mark: Exd II
CW Cable Gland
Type: CW (Single Compression Gland)
Material: Brass with or without nickel plated
Standard: BS6121
Protection Rate: IP66 & IP67
Temperature: -20°C- +80°C

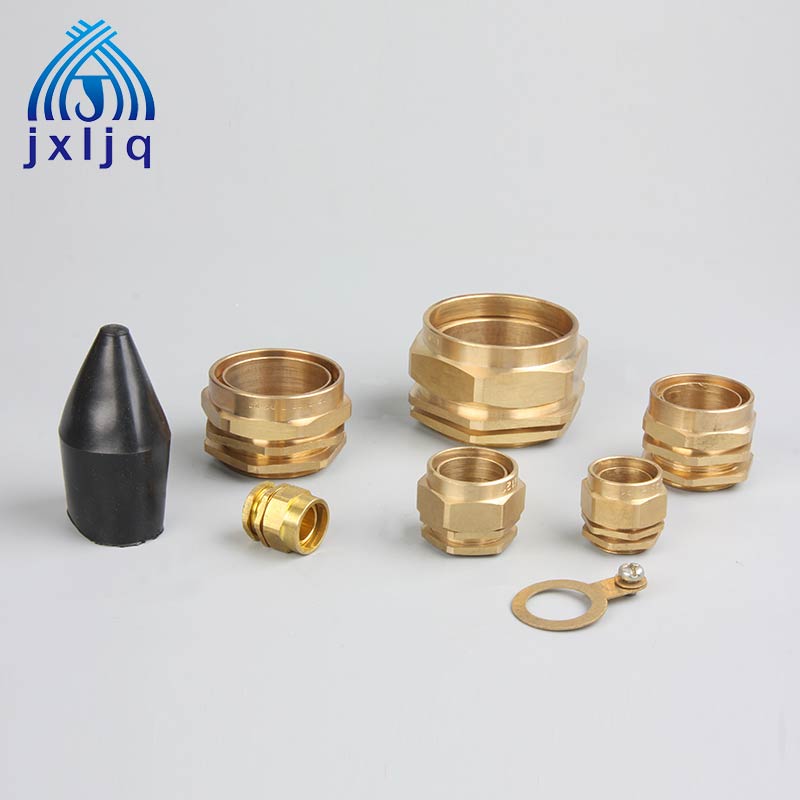

BW Cable Gland
Material: Brass or Brass, nickel plated
Standard: BS 6121-1-2005
Protection Rate: IP30
Temperature: -80°C - +600°C
Single Compression Cable Gland Connector(A2F E Type)
Used for explosion-proof electrical equipment connection,chemical,petroleum, electric power,light industry,machinery,etc.,suitable for automation engineering line installation.
