What a Waterproof Connector Does for Your Electrical System

You’ve seen what happens when moisture finds its way into a junction box. Corrosion creeps along the conductors. A short takes out a lighting circuit, a control panel, or worse—critical equipment. The component that failed cost a few dollars. The downtime cost thousands.

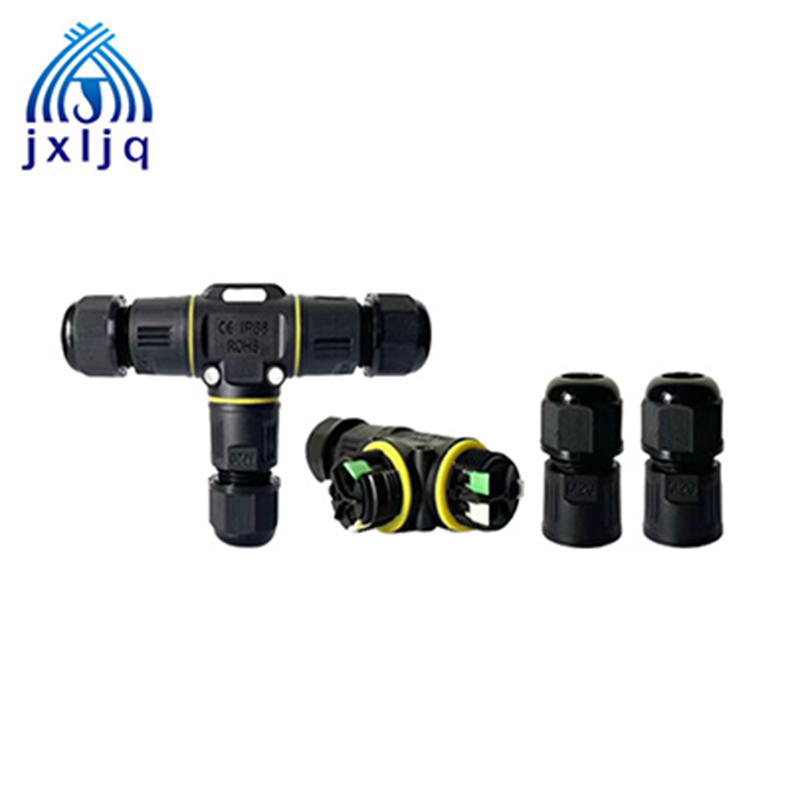

A Waterproof Connector is the barrier between your electrical system and the elements. It seals the cable entry point, keeping moisture, dust, and contaminants out of enclosures. JIXIANG CONNECTOR‘s T-type Outdoor Waterproof Cable Connector IP68 is made from durable plastic and copper alloy and will withstand all outdoor elements.

This guide covers what makes a waterproof connector essential, how the T-type design works, and what to look for in a reliable product. For electrical engineers, procurement managers, and system integrators, this is a practical overview of a component that protects your equipment and your bottom line.

How Waterproof Connectors Keep Moisture Out

A waterproof connector isn’t just a plug with a rubber boot. It’s a carefully engineered assembly designed to block multiple paths of water ingress.

Seals and Gaskets

Elastomeric seals—typically made from silicone, rubber, or thermoplastic elastomers—are placed at every potential entry point: between the plug and socket housing when mated, where the cable enters the connector body, and around individual pins within the connector.

Sealed Housings and Potting

The connector body itself is designed with tight tolerances and robust materials like rugged plastics or metals to resist water penetration. Some high-performance connectors are filled internally with waterproof epoxy resin or silicone gel, completely surrounding the internal connections.

Locking Mechanisms

Secure mating mechanisms—screw threads, bayonet locks, or latches—ensure the connector halves are tightly joined, compressing the interface seals effectively and preventing accidental disconnection.

The T-Type Design – What Makes It Different

The T-type connector offers a specific advantage over straight connectors: it provides a branch point in a cable run.

T-Shaped Branching

A T-type connector creates a three-way connection point, allowing you to tap into an existing cable run without cutting and splicing the main line. This is particularly useful in solar panel arrays, outdoor lighting networks, and other distributed systems where you need to branch power or signals to multiple devices.

Easy Extension of Wires

The T-type connector allows for easy extension of wires while adhering to building codes. Instead of splicing wires in the field—which creates potential failure points—you use a pre-engineered connector that maintains the integrity of the connection.

Available Pin Configurations

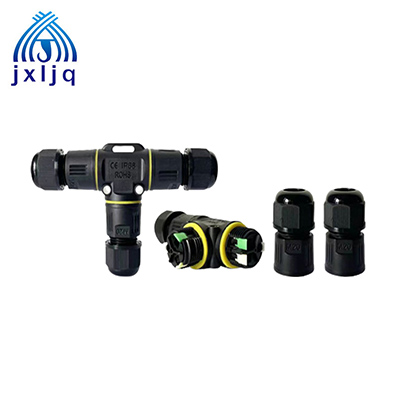

JIXIANG’s T-type connectors are available in 2-pin, 3-pin, 4-pin, and 5-pin configurations, with thread sizes M20 and M25. This flexibility allows you to match the connector to the specific requirements of your application.

The IP68 Rating – What It Means for Your Installation

IP (Ingress Protection) ratings tell you how well a connector keeps out solids and liquids. Understanding them is the first step to selecting the right product.

IP68 – Dust-Tight and Continuous Immersion

The “6” means dust-tight—complete protection against dust ingress. The “8” means protection against continuous immersion in water beyond 1 meter, with conditions specified by the manufacturer. For outdoor lighting, solar installations, and marine applications, IP68 is the right choice.

Temperature Range

JIXIANG‘s T-type waterproof connectors operate in temperatures from -40°C to +105°C. This wide range covers everything from freezing outdoor installations to hot industrial environments.

Material Construction

The connector body is made from Nylon PA66, a flame-retardant material. The O-ring is made from silicone, an environmental protection material. The conductor material is 59-1 brass with nickel plating, providing corrosion resistance and reliable electrical contact.

Where T-Type Waterproof Connectors Are Used

Waterproof connectors are not optional in certain environments. They‘re the difference between a system that runs reliably and one that fails prematurely.

Solar Power Systems

Solar panel arrays are exposed to the elements around the clock. T-type connectors are used to branch connections between panels, creating parallel wiring configurations. The connectors must withstand rain, UV exposure, and temperature extremes.

Outdoor Lighting

Street lights, landscape lighting, and architectural lighting rely on secure interconnections. A single point of water ingress can take down an entire lighting circuit. Waterproof connectors protect these connections from rain, snow, and condensation.

Marine and Offshore

Boats, yachts, shipboard systems, and offshore platforms all require connectors that can withstand saltwater and constant humidity. Saltwater is corrosive. Humidity is constant. Vibration is everywhere. Waterproof connectors with high IP ratings are non-negotiable.

Industrial and Automation

Industrial environments expose connectors to dust, coolant, and washdowns. JIXIANG connectors are widely applicable to electromechanical equipment, industrial PC, and automation machinery.

Questions Procurement and Engineering Teams Ask

What is the difference between IP68 and IP67 for cable connectors?

Both are dust-tight. The difference is water protection. IP67 protects against temporary immersion in water up to 1 meter for 30 minutes. IP68 protects against continuous immersion beyond 1 meter, with conditions specified by the manufacturer. For outdoor lighting and most industrial applications, IP67 is often sufficient. For marine environments, submerged applications, or areas with frequent flooding, IP68 is the right choice.

Can T-type connectors be used with all cable types?

T-type connectors are designed for unarmoured cables within specific diameter ranges. The JX-M20 series accepts cable ODs of 5-8mm and 9-12mm. The JX-M25 series accepts 5-8mm, 9-12mm, and 10-14mm. When specifying, match the connector to the cable diameter—the gland must accommodate the outer diameter of the cable you‘re using.

What is the operating temperature range for these connectors?

The working temperature range is -40°C to +105°C. This covers most industrial and outdoor environments. The connector body is made from Nylon PA66, which is flame-retardant and provides excellent thermal stability.

What to Look for When Sourcing Waterproof Connectors

For procurement managers and engineers, the decision isn’t just about price. It‘s about performance, reliability, and supply chain consistency.

Material Quality

JIXIANG’s T-type waterproof connectors use Nylon PA66 for the housing and 59-1 brass with nickel plating for the conductor. The nickel plating provides an additional corrosion barrier that protects the brass from oxidation and chemical attack.

Certifications and Compliance

JIXIANG‘s connectors carry IP68, CE, and ROHS certifications. This matters because your installation needs to meet local electrical codes. A connector that isn’t certified to the relevant standard creates liability. Ask for certification documentation before you commit to a supplier.

Quality Assurance

A reliable supplier invests in quality testing. JIXIANG has invested heavily in quality testing facilities to ensure that every product that leaves the factory meets high standards. Ask about testing procedures and whether the supplier can provide test reports for specific production batches.

Installation Ease

The T-type connector features simple installation: unscrew all parts, insert wires from both sides, insert the wire-cored terminal into the hollow tube, and tighten the nut until the waterproof rubber core tightens the rubber wire. For procurement teams, ease of installation means less labor cost and fewer installation errors.

JIXIANG CONNECTOR has over 12 years of experience in waterproof cable connector manufacturing. The company designs and manufactures cable glands and fittings for a variety of environments, covering a wide range of international installation codes from IEC to NEC. Their T-type Outdoor Waterproof Cable Connector IP68 is made from durable plastic and copper alloy and will withstand all outdoor elements. Technical resources including data sheets, installation guides, and FAQs are available to help customers understand the technical aspects of the products.

For procurement managers, the combination of material quality (Nylon PA66 with brass conductors), certification coverage (IP68, CE, ROHS), and testing infrastructure makes JIXIANG a supplier worth evaluating. Before you commit to a large order, request samples and test them in your actual installation conditions. A connector that seals in the lab but fails in the field isn‘t worth the savings.

Ready to specify waterproof connectors for your project? Reach out to JIXIANG CONNECTOR’s team—they can provide product samples, technical data, and configuration recommendations based on your specific application requirements.
