product description

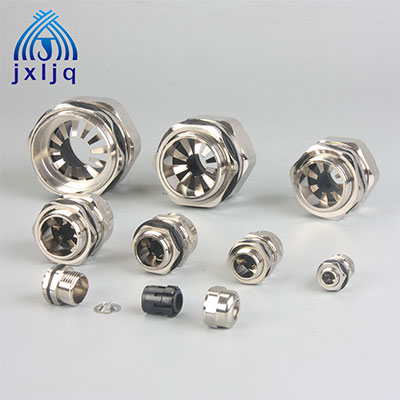

Single Compression Cable Gland (A2F E Type)

Material: SU304 for Body, brass with nickel plated

Protection Class: Within the clamping range, it can reach to IP66

Temperature Range: Min-30 °C，Max 100 °C, short time to 120°C

Features: High-end design, practical, increase flood control external meter seal.

Ex Degree: Exd

Thread Options: Metric, G, PG, NPT

Application:

• For use of non-armored and braided cable in Zone 1 hazardous locations and IIA IIB IIC explosive gas atmospheres,
• Can be used for explosion-proof electrical equipment connections, chemicals, petroleum, various sectors of electricity, light industry, machinery, etc, especially for automation engineering line installation.

EMC Cable Gland - E Series -PG Thread

Material:

• Cap nut: Brass with nickel Plated
• Gland Body: Brass with nickel plated
• Certificate: CE, IP68, ISO9001, TUV
• Protection Class : IP68-10 BAR
• Operating Temperature: -40 DEG to +100 DEG, (short time to 120 DEG); -20 DEG to 80 DEG, (short time to 100 DEG)

Features:

 The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.When shielded cable entries through this cable gland, the brass material contact chips attached in the cable gland will contact with the metal isolated network in the cable, Then the interfering electromagnetic wave will be leaded to the grounding wire, thus the interference source of electromagnetic wave will be evacuated.

Function: Metal Cable Gland is cable supporting products, connector cable  can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.

EMC Cable Gland E Series– PG thread
