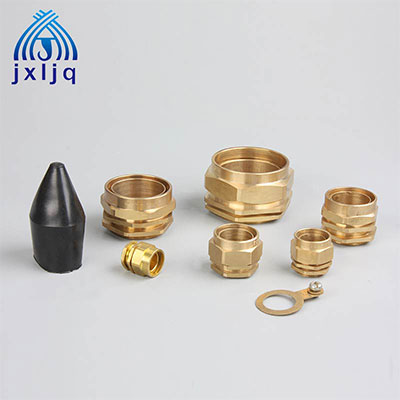

BW Cable Gland Supplier
YUEQING JIXIANG CONNECTOR CO.,LTD is a professional manufacturer of various kinds of cablbe glands and cable connectors. JIXIANG combines research,production and sales. The main products are metal cable glands and nylon cable glands. We firmly believe that market is the key to the development of enterprises. Thus, we always take the high quality as our essential principle. Now we developed as an enterprise which has a production workshop of 4000 square meters.
Our products are widely used in electronic, machinery, instrument, electrical appliances and other industrial fields. They are also approved by CE,IP68,ROHS,EX, ATEX,TUV and ISO9001. JIXIANG cable glands are exported to Southeast Asia and other developed countries and regions because of its superb technology and superior quality. Meanwhile our products obtained approval and high praises from the domestic and foreign customers.
Phone: +86-577-62658186
Fax: +86-577-62658185
Email: sales@qiligang.com
product description
Material: Brass or Brass, nickel plated
Standard: BS 6121-1-2005
Protection Rate: IP30
Temperature: -80°C - +600°C
Thread options: Metric, NPT, BSP& PG
Application: Dry Indoor for use with all types of SWA extruded Bending Cable.
Function: BW type glands provide mechanical cable retention & electrical continuity via armoured wire termination.
Cable Type: SWA Extruded Bending Cable.
Accessories: Matching accessories available like PVC Shrouds, Locknuts and earth tag.
Outline
Technical Parameters
| Code | Thread size | Min Thread length L(mm) | Cable diameter(mm) | ||
| Metric | NPT | Max “A” (mm) | Max “B” (mm) | ||
| JX-BW20S | M20 | 1/2’’ | 10 | 11.5 | 15.5 |
| JX-BW20L | M20 | 1/2’’ | 10 | 14 | 20.5 |
| JX-BW25S | M25 | 3/4’’ | 10 | 18 | 24 |
| JX-BW25L | M25 | 3/4’’ | 10 | 20 | 27 |
| JX-BW32S | M32 | 1’’ | 10 | 26.3 | 33.5 |
| JX-BW32L | M32 | 1’’ | 10 | 26.3 | 33.5 |
| JX-BW40S | M40 | 1.1/4’’ | 13 | 31.5 | 39.5 |
| JX-BW40L | M40 | 1.1/4’’ | 13 | 32 | 40 |
| JX-BW50S | M50 | 1.1/2’’ | 13 | 38.2 | 46.3 |
| JX-BW50L | M50 | 2’’ | 13 | 44 | 52.6 |
| JX-BW63S | M63 | 2’’ | 14 | 50.1 | 59 |
| JX-BW63L | M63 | 2.1/2’’ | 14 | 56 | 65.3 |
| JX-BW75S | M75 | 2.1/2’’ | 15 | 62 | 71.6 |
| JX-BW75L | M75 | 3’’ | 15 | 68 | 78 |
| JX-BW90 | M90 | 3’’ | 20 | 80.5 | 91 |

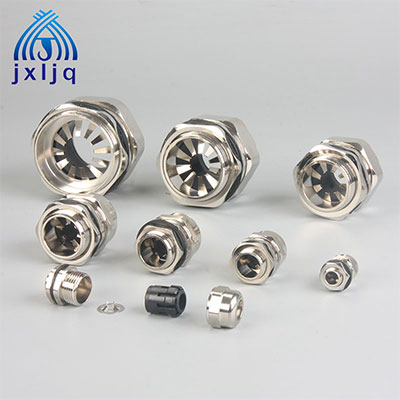

EMC Cable Gland - E Series -G,NPT Thread
Material:
- Cap nut: Brass with nickel Plated
- Clamping Insert: PA66 ( Flammability UL 94V-2)
- Gland Body: Brass with nickel plated
- Certificate: CE, IP68, ISO9001, TUV
- Protection Class : IP68-10 BAR
- Operating Temperature: -40 DEG to +100 DEG, (short time to 120 DEG); -20 DEG to 80 DEG, (short time to 100 DEG)
Features:
The claws and seals of excellent design, sealing nut have a “click” sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.When shielded cable entries through this cable gland, the brass material contact chips attached in the cable gland will contact with the metal isolated network in the cable, Then the interfering electromagnetic wave will be leaded to the grounding wire, thus the interference source of electromagnetic wave will be evacuated.
Function:
Metal Cable Gland is cable supporting products, connector cable can be locked, the other end of the device can access the device through the box body, also can choose thread access according to the entry and outlet of the internal thread electrical equipment.
More options: Customization is acceptable. Welcome to inquire when ordering.
