Description

Special clamping claws and clamping ring design, wide range of clamping cables, strong tensile strength, waterproof, dustproof, salt-resistant, weak acid, alcohol, oil, grease and general solvents.

Inquiry Now >>

Product Description

Thread: Metric, PG,G(PF),NPT thread;

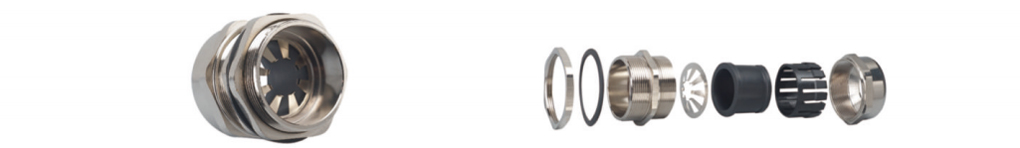

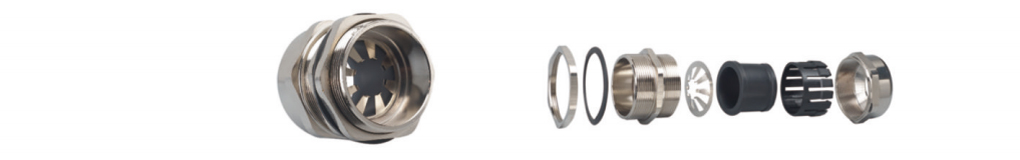

Materials: Brass with nickel plated/SS304/SS316L for A, C, C1,F parts,Nylon PA66 for E part;EPDMrubber for B.Dparts,(Also accept to make : resist high temperature rubber, resist
strong acid/alkali, etc);

Protection degree: IP68-10 Bar;

Working temperature:-40C to100C in static state, or instantaneous heat resistanceupto 120℃;

Features: The claws and seals of excellent design, sealing nut has a "Mclick" sound and re-open, can hold cable firmly and havea wider cable range.Resistant to salt water, weak acid,alcohol, oil, grease and common solvency.



E series

Code

Thread MG

(mm) Cable range

(mm) Thread O.D

(mm) Mounting hole diameter

GL(mm) Thread length GL

(mm) Spanner size

JX-E.M12A-EMC

M 12X1.5

3-5.3

12

12-12.3

8

17/17

JX-E.M12B-EMC

4.5-7.8

12

12-12.3

8

17/17

JX-E.M16A-EMC

M16X1.5

4-7

16

16-16.3

9

22/22

JX-E.M16B-EMC

6-10

16

16-16.3

9

22/22

JX-E.M20A-EMC

M20X1.5

5-8.8

20

20-20.3

9.5

24/24

JX-E.M20B-EMC

7-12

20

20-20.3

9.5

24/24

JX-E.M20C-EMC

9-14

20

20-20.3

9.5

26/26

JX-E.M25A-EMC

M25X1.5

12-16

25

25-25.4

12

32/32

JX-E.M25B-EMC

14-18

25

25-25.4

12

32/32

JX-E.M32A-EMC

M32X1.5

16-22

32

32-32.4

12.5

41/41

JX-E.M32B-EMC

18-25

32

32-32.4

12.5

41/41

JX-E.M40A-EMC

M40X1.5

21-25

40

40-40.4

15

50/50

JX-E.M40B-EMC

24-30

40

40-40.4

15

50/50

JX-E.M50A-EMC

M50X1.5

26-32

50

50-50.4

15

60/60

JX-E.M50B-EMC

31-41

50

50-50.4

15

60/60

JX-E.M63A-EMC

M63X1.5

40-46

63

63-63.4

15

73/73

JX-E.M63B-EMC

44-51

63

63-63.4

15

73/73

JX-E.M75A-EMC

M75X1.5

50-56

75

75-75.6

15

85/85

JX-E.M75B-EMC

56-66

75

75-75.6

15

85/85

JX-E.M90A-EMC

M90X1.5

58-68

90

90-91

20

102/102

JX-E.M90B-EMC

66-77

90

90-91

20

102/102

JX-E.M100A-EMC

M100X1.5

58-68

100

100-101

25

116/116

JX-E.M100B-EMC

66-77

100

100-101

25

116/116



E series

Code

Thread MG

(mm) Cable range

(mm) Thread O.D

(mm) Mounting hole diameter

GL(mm) Thread length GL

(mm) Spanner size

JX-E.PG7A-EMC

PG7-EMC

3-5.3

12.5

12.5-12.8

8

17/17

JX-E.PG7B-EMC

4.5-7.8

12.5

12.5-12.5

8

17/17

JX-E.PG9A-EMC

PG9-EMC

3-5.8

15.2

15.2-15.5

8

18/18

JX-E.PG9B-EMC

4.5-7.8

15.2

15.2-15.5

8

18/18

JX-E.PG11A-EMC

PG11-EMC

4-7

18.6

18.6-18.9

9

22/22

JX-E.PG11B-EMC

6-10

18.6

18.6-18.9

9

22/22

JX-E.PG13.5A-EMC

PG13.5-EMC

5-8.8

20.4

20.4-20.7

9.5

24/24

JX-E.PG13.5B-EMC

7-12

20.4

20.4-20.7

9.5

24/24

JX-E.PG16A-EMC

PG16-EMC

7-11

22.5

22.5-22.8

9.5

26/26

JX-E.PG16B-EMC

9-14

22.5

22.5-22.8

9.5

26/26

JX-E.PG21A-EMC

PG21-EMC

12-16

28.3

28.3-28.7

12

32/32

JX-E.PG21B-EMC

14-18

28.3

28.3-28.7

12

32/32

JX-E.PG29A-EMC

PG29-EMC

16-22

37

37-37.4

12.5

41/41

JX-E.PG29B-EMC

18-25

37

37-37.4

12.5

41/41

JX-E.PG36A-EMC

PG36-EMC

21-25

47

47-47.4

15

50/50

JX-E.PG36B-EMC

24-30

47

47-47.4

15

50/50



G Thread type、NPT thread type

E series

Code

Thread MG

(mm) Cable range

(mm) Thread O.D

(mm) Mounting hole diameter

GL(mm) Thread length GL

(mm) Spannersize

JX-E.G1/4A-EMC

G(PF)l/4"

3-5.3

13.157

13.2-13.4

8

17/17

JX-E.G1/4B-EMC

4.5-7.8

13.157

13.2-13.4

8

17/17

JX-E.G3/8A-EMC

G(PF)3/8 "

4-7

16.662

16.7-16.9

9

22/22

JX-E.G3/8B-EMC

6-10

16.662

16.7-16.9

9

22/22

JX-E.G1/2A-EMC

G(PF)l/2 "

7-11

20.955

21-21.2

9.5

26/26

JX-E.G1/2B-EMC

9-14

20.955

21-21.2

9.5

26/26

JX-E.G3/4A-EMC

G(PF)3/4 "

12-16

26.441

26.5-26.8

12

32/32

JX-E.G3/4B-EMC

14-18

26.441

26.5-26.8

12

32/32

JX-E.G1A-EMC

G(PF)1"

16-22

33.249

33.3-33.6

12.5

41/41

JX-E.G1B-EMC

18-25

33.249

33.3-33.6

12.5

41/41

JX-E.G11/4A-EMC

G(PF)11/4"

21-25

41.91

42-42.3

15

50/50

JX-E.G11/4B-EMC

24-30

41.91

42-42.3

15

50/50

JX-E.G11/2A-EMC

G(PF)11/2 "

26-32

47.803

48-48.4

15

60/60

JX-E.G11/2B-EMC

31-41

47.803

48-48.4

15

60/60

JX-E.G2A-EMC

G(PF)2 "

40-46

59.614

60-60.4

15

73/73

JX-E.G2B-EMC

44-51

59.614

60-60.4

15

73/73

JX-E.G21/2-EMC

G(PF)21/2 "

50-56

75.184

75.2-75.6

18

85/88

JX-E.G21/2-EMC

66-56

75.184

75.2-75.6

18

85/88

JX-E.NPT3/8A-EMC

NPT3/8 "

4-7

17.055



13

22

JX-E.NPT3/8B-EMC

6-10

17.055



13

22

JX-E.NPT1/2A-EMC

NPT1/2 "

7-11

21.223



13

26

JX-E.NPT1/2B-EMC

9-14

21.223



13

26

JX-E.NPT3/4A-EMC

NPT3/4 "

12-16

26.568



14

32

JX-E.NPT3/4B-EMC

14-18

26.568



14

32

JX-E.NPT1A-EMC

NPT1 "

16-22

33.227



15

41

JX-E.NPT1B-EMC

18-25

33.227



15

41

JX-E.NPT11/4A-EMC

NPTl 1/4 "

21-25

41.984



15

50

JX-E.NPT11/4B-EMC

240-30

41.984



15

50
