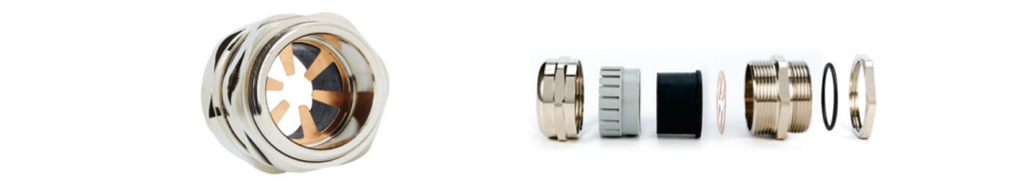

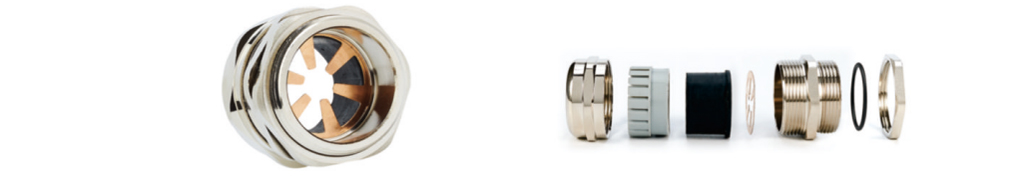

EMC Brass Cable Gland
EMC Brass Cable Gland

EMC Brass Cable Gland

Description

Special clamping claws and clamping ring design, wide range of clamping cables, strong tensile strength, waterproof, dustproof, salt-resistant, weak acid, alcohol, oil, grease and general solvents.

Inquiry Now >>

Product Description

Material: Brass, nickel plated/SS304/SS316L

Claw: PA

Sealing and sealing ring: NBR

Approvals: IP68、ISO9001、TUV.

Protection degree: IP68

Temperature Resistance:-40°C to 10o-c, short time to 120°℃.

Function: Easy installation, simply insert cable through the assembled gland and tighten gland locknut until cable is secured.These cable glands are designed to withstand water, dust, salt, acid- base, alcohol, oil and common solvent.

Notes: Customization is available.



PG Thread type

D series

Code

Thread AG

Cable range (mm)

Thread O.D.(mm)

Mounting hole diameter(mm)

Thread length GL(mm)

Joint length H(mm)

Spanner size (mm)

JX-D.PG7-EMC

PG7

6.5-3

12.5

12.5-12.7

7

19

14

JX-D.PG9-EMC

PG9

8-4

15.2

15.2-15.4

8

20

17

JX-D.PG11-EMC

PG11

10-5

18.6

18.6-18.8

8

21

20/21

JX-D.PG13.5-EMC

PG13.5

12-6

20.4

20.4-20.6

8

22

22

JX-D.PG16-EMC

PG16

14-10

22.5

22.5-22.7

9

23

24

JX-D.PG19-EMC

PG 19

14-10

25

25-25.2

9

25

24/27

JX-D.PG21-EMC

PG21

18-13

28.3

28.3-28.5

9

27

30

JX-D.PG25-EMC

PG25

22-15

32

32-32.2

10

29

35

JX-D.PG29-EMC

PG29

25-18

37

37-37.2

10

31

40

JX-D.PG36-EMC

PG36

33-25

47

47-47.2

11

37

50

JX-D.PG42-EMC

PG42

38-32

54

54-54.2

13

38

57

JX-D.PG48-EMC

PG48

44-37

59.3

59.3-59.5

14

38

64

JX-D.PG63-EMC

PG63

52-42

72

72-72.2

15

42

78



Metric thread type

Code

Thread AG

Cable range (mm)

Thread O.D.(mm)

Mounting hole diameter(mm)

Thread length GL(mm)

Joint length H(mm)

Spannersize (mm)

JX-D.M12-EMC

M12*1.5

6.5-3

12

12-12.2

7

19

14

JX-D.M14-EMC

M14* 1.5

8-4

14

14-14.2

7

19

17

JX-D.M16-EMC

M16*1.5

8-4

16

16-16.2

8

20

18

JX-D.M18-EMC

M18* 1.5

10-5

18

18-18.2

8

21

20

JX-D.M20-EMC

M20*1.5

12-6

20

20-20.2

8

22

22

JX-D.M22-EMC

M22*1.5

14-10

22

22-22.2

8

23

24

JX-D.M24-EMC

M24*1.5

14-10

24

24-24.2

9

25

24/27

JX-D.M25A-EMC

M25*1.5

14-10

25

25-25.2

9

25

24/27

JX-D.M25B-EMC

M25*1.5

18-13

25

25-25.2

9

27

30/27

JX-D.M27A-EMC

M27*1.5

18-13

27

27-27.2

9

27

30

JX-D.M27B-EMC

M27*2

18-13

27

27-27.2

9

27

30

JX-D.M28A-EMC

M28*1.5

18-13

28

28-28.2

9

27

30

JX-D.M28B-EMC

M28*2

18-13

28

28-28.2

9

27

30

JX-D.M30A-EMC

M30*1.5

18-13

30

30-30.2

9

29

30/32

JX-D.M30B-EMC

M30*2

18-13

30

30-30.2

9

29

30/32

JX-D.M32A-EMC

M32*1.5

22-15

32

32-32.2

10

29

35

JX-D.M32B-EMC

M32*2

22-15

32

32-32.2

10

29

35

JX-D.M33A-EMC

M33*1.5

22-15

33

33-33.2

10

29

35



Metric thread type

Code

Thread AG

Cable range (mm)

Thread O.D.(mm)

Mounting hole diameter(mm)

Thread length GL(mm)

Joint length H(mm)

Spanner size (mm)

JX-D.M33B-EMC

M33*2

22-15

33

33-33.2

10

29

35

JX-D.M36A-EMC

M36*1.5

25-18

36

36-36.2

10

31

40

JX-D.M36B-EMC

M36*2

25-18

36

36-36.2

10

31

40

JX-D.M37A-EMC

M37*1.5

25-18

37

37-37.2

10

31

40

JX-D.M37B-EMC

M37*2

25-18

37

37-37.2

10

31

40

JX-D.M40A-EMC

M40*1.5

25-18

40

40-40.2

11

31

40/45

JX-D.M40B-EMC

M40*2

25-18

40

40-40.2

11

31

40/45

JX-D.M40C-EMC

M40*1.5

30-22

40

40-40.2

11

35

45

JX-D.M40D-EMC

M40*2

30-22

40

40-40.2

11

35

45

JX-D.M42A-EMC

M42*1.5

30-22

42

42-42.2

11

35

45

JX-D.M42B-EMC

M42,2

30-22

42

42-42.2

11

35

45

JX-D.M47A-EMC

M47*1.5

33-25

47

47-47.2

11

37

50

JX-D.M47B-EMC

M47*2

33-25

47

47-47.2

11

37

50

JX-D.M48A-EMC

M48*1.5

33-25

48

48-48.2

11

37

50/52

JX-D.M48B-EMC

M48*2

33-25

48

48-48.2

11

37

50/52

JX-D.M50A-EMC

M50*1.5

38-32

50

50-50.2

12

37

50/55

JX-D.M50B-EMC

M50*2

38-32

50

50-50.2

12

37

50/55

JX-D.M54A-EMC

M54*1.5

38-32

54

54-54.2

12

38

57

JX-D.M54B-EMC

M54*2

38-32

54

54-54.2

12

38

57

JX-D.M56A-EMC

M56*1.5

38-32

56

56-56.2

12

38

57/59

JX-D.M56B-EMC

M56*2

38-32

56

56-56.2

12

38

57/59

JX-D.M60A-EMC

M60*1.5

44-37

60

60-60.2

13

38

64

JX-D.M60B-EMC

M60*2

44-37

60

60-60.2

13

38

64

JX-D.M63A-EMC

M63*1.5

44-37

63

63-63.2

13

38

64/68

JX-D.M63B-EMC

M63*2

44-37

63

63-63.2

13

38

64/68

JX-D.M64A-EMC

M64*1.5

44-37

64

64-64.2

13

38

64/68

JX-D.M64B-EMC

M64*2

44-37

64

64-64.2

13

38

64/68

JX-D.M72-EMC

M72*2

52-42

72

72-72.2

15

42

65/68

JX-D.M75-EMC

M75*2

52-42

75

75-75.2

15

42

78

JX-D.M80-EMC

M80,2

62-50

80

80-80.2

15

45

86/88

JX-D.M88-EMC

M88*2

70-60

88

88-88.2

15

45

98

JX-D.M100-EMC

M100*2

80-70

100

100-100.2

15

45

110



G Thread type、NPT thread type

D series

Code

Thread AG

Cable range (mm)

Thread O.D.(mm)

Mounting hole diameter (mm)

Thread length GL (mm)

Joint length H(mm)

Spanner size (mm)

JX-D.G1/4-EMC

Gl/4

6.5-3

13.1

19

7

19

14

JX-D.G3/8-EMC

G3/8

8-4

16.6

19

8

19

18

JX-D.G1/2-EMC

Gl/2

12-6

20.9

14

8

22

22

JX-D.G3/4-EMC

G3/4

18-13

26.4

14

9

25

30

JX-D.G1-EMC

G1

25-18

33.2

11

11

29

40

JX-D.G 1-1/4-EMC

G1-1/4

33-25

41.9

11

13

35

50

JX-D.G 1-1/2-EMC

G1-1/2

38-32

47.8

11

14

37

57

JX-D.G2-EMC

G2

44-37

59.6

11

14

38

64

JX-D.G2-1/2-EMC

G2-1/2

52-42

75.1

11

15

38

77

JX-D.G3-EMC

G3

70-65

87.8

11

15

48

94

JX-D.NPT1/4-EMC

NPTl/4

6.5-3

13.6

18

7

19

14

JX-D.NPT3/8-EMC

NPT3/8

8-4

17

18

8

19

18

JX-D.NPT1/2-EMC

NPT1/2

12-6

21.2

14

8

22

22

JX-D.NPT3/4-EMC

NPT3/4

18-13

26.5

14

9

25

30

JX-D.NPT1-EMC

NPT1

25-18

33.2

11.5

11

29

40

JX-D.NPT1-1/4-EMC

NPTl-l/4

33-25

41.9

11.5

13

35

50

JX-D.NPT1-1/2-EMC

NPT1-1/2

38-32

48

11.5

14

37

57

JX-D.NPT2-EMC

NPT2

44-37

60

11.5

14

38

64

JX-D.NPT2-1/2-EMC

NPT2-1/2

52-42

72.6

8

15

38

78

JX-D.NPT3-EMC

NPT3

70-65

88.6

8

15

45

98
