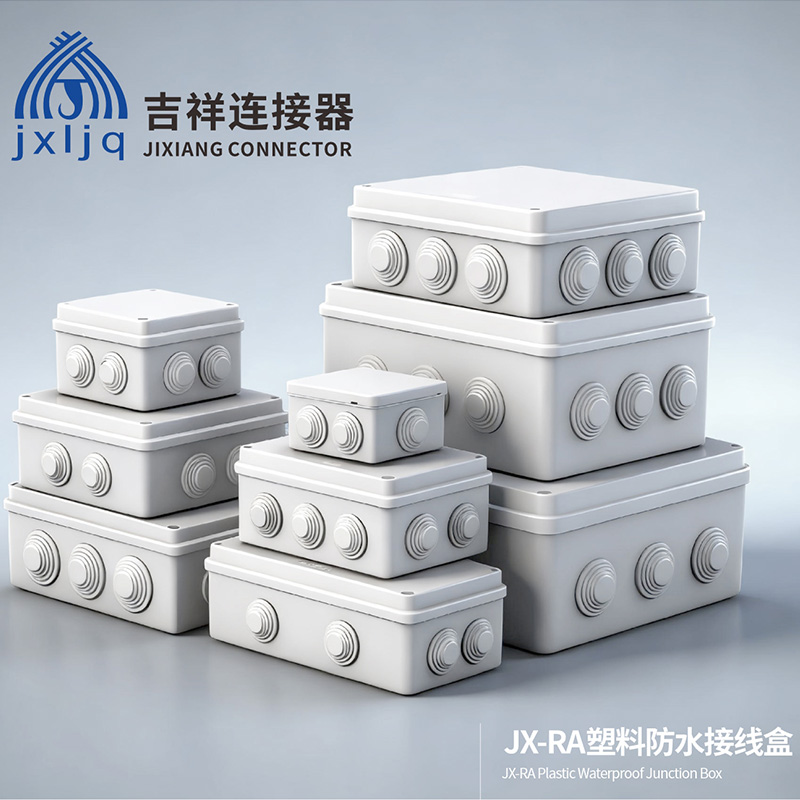

Body material: ABS
Stopper material: PVC
Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Certificates: CE, ROHS
Inquiry Now >>
Body material: ABS
Stopper material: PVC
Material characteristics: Impact, heat, low temperature and chemical resistance, excellent electrical performance and surface gloss, etc.
Certificates: CE, ROHS
Application: Suitable for indoor and outdoor electric, communication, fire fightingapparatus, iron and steel smelting, petrochemical industry, electron, power system,railway, building, mine, air and sea port, hotel, ship, works, waste water treatmentequipment, environmental equipment and so on.
Installation: 1,Inside: There are the installation holes in the base for circuit boardor din rail.
2, Outside: The products can be directly fixed on the wall or other flatboards with screws or nails via the screw holes in the base.
Outlet hole: Cutting a hole in the PVC stopper as related cable size or installingcable gland to get better waterproof performance.

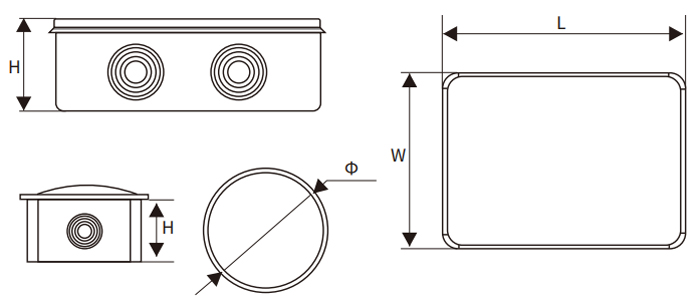

| Code | Outside Dimenstion (mm) | Hole Qty | Hole Size(mm) | G. Weight(KG) | N. Weight(KG) | Qty/Carton | Carton Dimenstion (cm) |
IP | ||
| L | W | H | ||||||||
| JX-RA50×50 | 50 | 50 | 4 | 25 | 14 | 12.9 | 12.9 | 45.5X 38 X51 | 55 | |
| JX-RA80×50 | 80 | 50 | 4 | 25 | 14.7 | 13.4 | 13.4 | 53 X 35 X 65 | 55 | |
| JX-RA85×85×50 | 85 | 85 | 50 | 7 | 25 | 18 | 16.6 | 16.6 | 52X41X52.5 | 55 |
| JX-RA100×100×70 | 100 | 100 | 70 | 7 | 25 | 16.3 | 14.7 | 14.7 | 61 X49X34.5 | 65 |
| JX-RA150×110×70 | 150 | 110 | 70 | 10 | 25 | 15.7 | 14.2 | 14.2 | 66.5X34.5X46 | 65 |
| JX-RA150×150×70 | 150 | 150 | 70 | 8 | 25 | 16.1 | 14.3 | 14.3 | 84.5 X 34X45 | 65 |
| JX-RA200×100×70 | 200 | 100 | 70 | 8 | 25 | 16.6 | 15.3 | 15.3 | 61 X46 X42 | 65 |
| JX-RA200×155×80 | 200 | 155 | 80 | 10 | 36 | 15.5 | 13.9 | 13.9 | 69.5 X43.5X41 | 65 |
| JX-RA200×200×80 | 200 | 200 | 80 | 12 | 36 | 19.9 | 17.9 | 17.9 | 45.5X45.5X79 | 65 |
| JX-RA255×200×80 | 255 | 200 | 80 | 12 | 36 | 22.8 | 21 | 21 | 55X44 X 79.2 | 65 |
| JX-RA255×200×120 | 255 | 200 | 120 | 12 | 36 | 21.9 | 20.1 | 20.1 | 64 X 55 X 62 | 65 |
| JX-RA300×250×120 | 300 | 250 | 120 | 12 | 36 | 22.4 | 19.9 | 19.9 | 64X55 X 61.5 | 65 |
| JX-RA400×350×120 | 400 | 250 | 120 | 16 | 36 | 14.8 | 13.3 | 13.3 | 74.5X42.5X61.5 | 65 |
