Extremely easy installation, simply insert cable through the assembled gland and tighten gland locknut until cable is secured.
These cable glands are designed to withstand water,dust,salt,acid-base,alcohol,oil and common solvent.
|

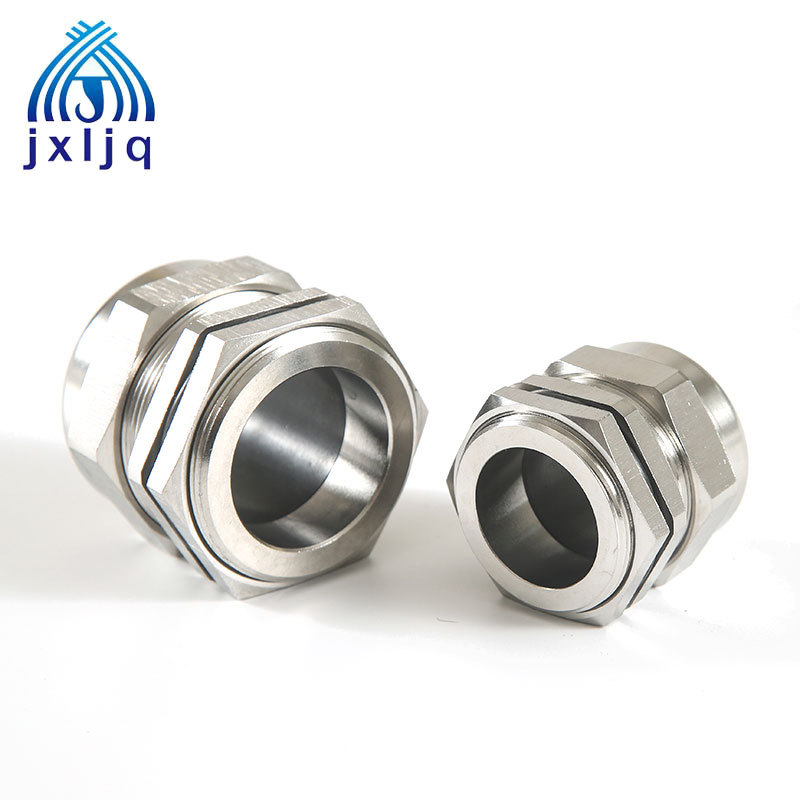

Product Name: |
Stainless Steel Cable Gland |
|
Main material: |
Stainless steel (Inox) |
|
Standard size: |
M8-M100; PG7-PG63; NPT1/4-NPT3; G1/4 -G3 |
|
Certification: |
RoHS, CE, TUV, IP68, ISO9001 |
|
Protection degree: |
IP68 (with sealing) |
|
Working temperature: |
-40℃ to 100℃, short time to 120℃ |
Inquiry Now >>

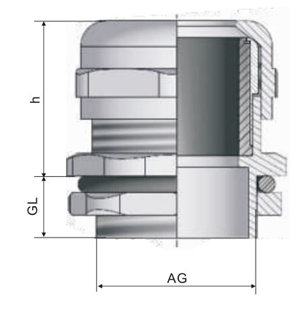

The Drawing of Stainless Steel Gland
| Stainless Steel Cable Gland - G,NPT Thread | |||||||
| Product Code | Thread AG |
Cable range (mm) |
Thread O.D. (mm) |
Thread No. Per Inch |
Thread length GL (mm) |
Joint Length (mm) |
Spanner Size (mm) |
| JX-G1/4-SS | G1/4 | 3-6.5 | 13.1 | 19 | 7 | 19 | 14 |
| JX-G3/8-SS | G3/8 | 4-8 | 16.6 | 19 | 8 | 19 | 18 |
| JX-G1/2-SS | G1/2 | 6-12 | 20.9 | 14 | 8 | 22 | 22 |
| JX-G3/4-SS | G3/4 | 13-18 | 26.4 | 14 | 9 | 25 | 30 |
| JX-G1-SS | G1 | 18-25 | 33.2 | 11 | 11 | 29 | 40 |
| JX-G11/4-SS | G1-1/4 | 25-33 | 41.9 | 11 | 13 | 35 | 50 |
| JX-G11/2-SS | G1-1/2 | 32-38 | 47.8 | 11 | 14 | 37 | 57 |
| JX-G2-SS | G2 | 37-44 | 59.6 | 11 | 14 | 38 | 64 |
| JX-G21/2-SS | G2-1/2 | 42-52 | 75.1 | 11 | 15 | 38 | 77 |
| JX-G3-SS | G3 | 65-70 | 87.8 | 11 | 15 | 48 | 94 |
| JX-NPT1/4-SS | NPT1/4 | 3-6.5 | 13.6 | 18 | 7 | 19 | 14 |
| JX-NPT3/8-SS | NPT3/8 | 4-8 | 17 | 18 | 8 | 19 | 18 |
| JX-NPT1/2-SS | NPT1/2 | 6-12 | 21.2 | 14 | 8 | 22 | 22 |
| JX-NPT3/4-SS | NPT3/4 | 13-18 | 26.5 | 14 | 9 | 25 | 30 |
| JX-NPT1-SS | NPT1 | 18-25 | 33.2 | 11.5 | 11 | 29 | 40 |
| JX-NPT11/4-SS | NPT1-1/4 | 25-33 | 41.9 | 11.5 | 13 | 35 | 50 |
| JX-NPT11/2-SS | NPT1-1/2 | 32-38 | 48 | 11.5 | 14 | 37 | 57 |
| JX-NPT2-SS | NPT2 | 37-44 | 60 | 11.5 | 14 | 38 | 64 |
| JX-NPT21/2-SS | NPT2-1/2 | 42-52 | 72.6 | 8 | 15 | 38 | 77 |
| JX-NPT3-SS | NPT3 | 65-70 | 88.6 | 8 | 15 | 48 | 94 |
