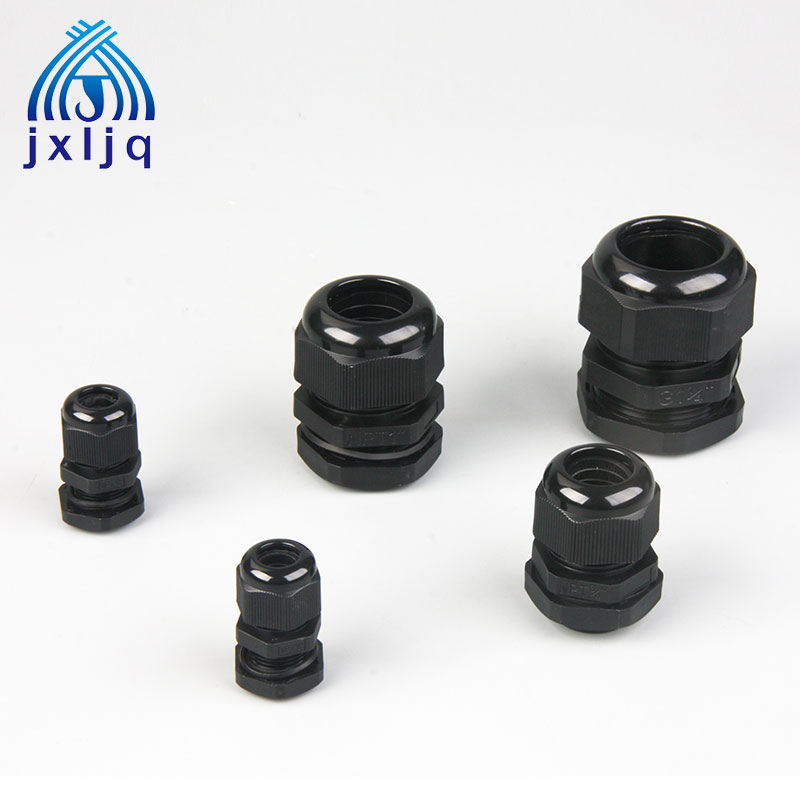

Nylon Cable Gland Standard PG Thread

Description
Inquiry Now >>

Product Description

Material: Adopting Nylon PA66 certificated by UL

Product Certification: CE certification, ROHS certification and ISO9001.

Protection Degree: IP68- 10 BAR

Working temperature:  -40℃to 100℃in static state, or instantaneous heat resistance up to 120℃; -20℃ to 80℃ in dynamic state, or instantaneous heat resistance up to 100℃.

Characteristics: IP68 (Rotate the part and use O ring)

Colors: Black (RAL9005),Gray(RAL7035), other colors are available upon requests.

Function: 1. Can be used in liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.

                2.Use to positively bond the conduit to a box or enclosure.

More options: Customization is acceptable.Welcome to inquire.

Nylon Cable Gland--PG thread
Product Code Thread  AG Cable range(mm) Thread O.D AG (mm) Thread length GL(mm) Spanner Size (mm)
JX-NLPG7A PG7 3-6.5 12.5 9 18/16
JX-NLPG7B PG7 2-5 12.5 9 18/16
JX-NLPG9A PG9 4-8 15.2 9 22/19
JX-NLPG9B PG9 2-6 15.2 9 22/19
JX-NLPG11A PG11 5-10 18.6 9 24/22
JX-NLPG11B PG11 3-7 18.6 9 24/22
JX-NLPG13.5A PG13.5 6-12 20.4 9 27/24
JX-NLPG13.5B PG13.5 5-9 20.4 9 27/24
JX-NLPG16A PG16 10-14 22.5 10 30/27
JX-NLPG16B PG16 7-12 22.5 10 30/27
JX-NLPG19A PG19 12-16 24 10 30/28
JX-NLPG19B PG19 10-13 24 10 30/28
JX-NLPG21A PG21 13-18 28.3 12 36/33
JX-NLPG21B PG21 9-16 28.3 12 36/33
JX-NLPG25A PG25 16-21 30 12 37/35
JX-NLPG25B PG25 13-18 30 12 37/35
JX-NLPG29A PG29 18-25 37 12 45/42
JX-NLPG29B PG29 13-20 37 12 45/42
JX-NLPG36A PG36 22-32 47 17 58/52
JX-NLPG36B PG36 20-26 47 17 58/52
JX-NLPG42A PG42 32-38 54 19 65/60
JX-NLPG42B PG42 25-31 54 19 65/60
JX-NLPG48A PG48 37-44 59.3 19 70/69
JX-NLPG48B PG48 25-36 59.3 19 70/69
JX-NLPG63A PG63 42-50 71 27 83/75
JX-NLPG63B PG63 32-40 71 27 83/75

The Drawing of Nylon Cable Gland:

Nylon Cable Gland
