90 Degree Elbow Conduit Fittings

90 Degree Elbow Conduit Fittings

Product
Material: Brass / Brass with nickel Plated ( Furnished with insulating Liner)
Protection Degree: IP67
Thread Type: Metric, but PG
  • 90 Degree Elbow Conduit Fittings
Inquiry
Product Description

Product

Material: Brass / Brass with nickel Plated ( Furnished with insulating Liner)

Protection Degree: IP67

Thread Type: Metric, but PG & G Thread can also be produced

Function:

1. Can be used in flexible metallic conduit or liquid tight conduit in Power Plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And it protects the electrical wire or cable outside the construction and plant.

 2. Use to positively bond the conduit to a box or enclosure.

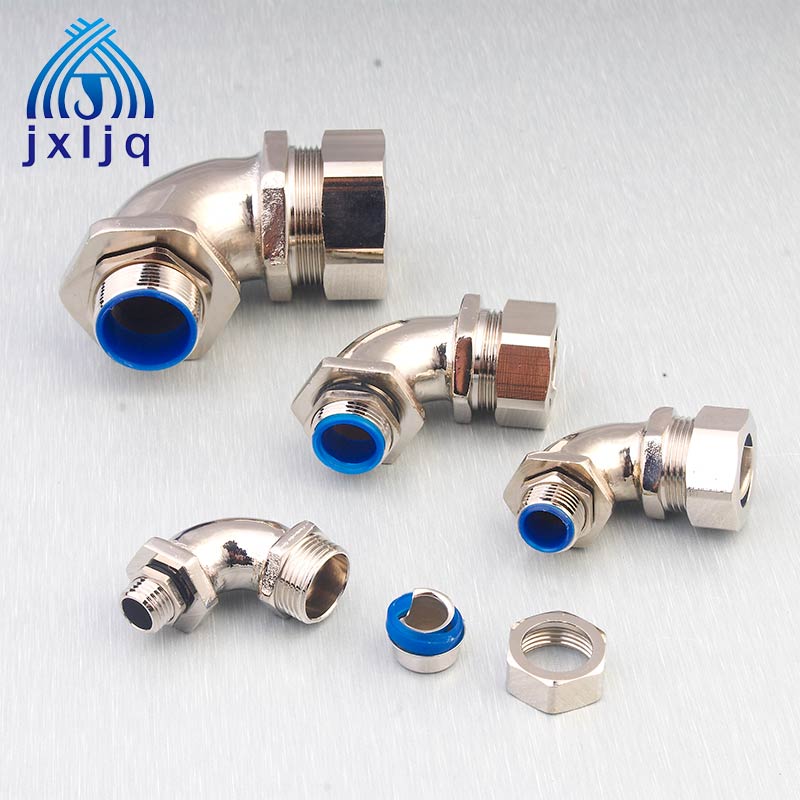

90 Degree Elbow Metal Conduit Fittings – Metric Thread
Product Code Thread  O.D Cable range (mm) Length (mm) Thread length GL(mm) Spanner Size (mm)
JX-M12-9D 12 3-6.5 45 9 20/21
JX-M16-6.5-9D 16 3-6.5 45 9 20/21
JX-M16-8-9D 16 4-8 45 9 20/21
JX-M16-10-9D 16 5-10 57 10 20/25
JX-M18-9D 18 5-10 57 10 20/25
JX-M20-10-9D 20 5-10 57 10 24/25
JX-M20-12-9D 20 6-12 57 10 24/30
JX-M20-14-9D 20 8-14 58 15 24/30
JX-M22-9D 22 8-14 58 15 24/30
JX-M24-12-9D 24 6-12 58 15 24/30
JX-M24-14-9D 24 8-14 58 15 24/30
JX-M25-14-9D 25 8-14 58 15 28/34
JX-M25-16-9D 25 10-16 75 15 30/34
JX-M25-18-9D 25 13-18 75 15 28/34
JX-M27-16-9D 27 10-16 75 15 30/34
JX-M27-18-9D 27 13-18 75 15 28/34
JX-M30-16-9D 30 10-16 75 15 30/34
JX-M30-18-9D 30 13-18 75 15 30/34
JX-M32-18-9D 32 13-18 75 15 30/34
JX-M32-22-9D 32 15-22 75 15 30/43
JX-M32-25-9D 32 18-25 90 15 40/43
JX-M33-9D 33 18-25 90 15 40/43
JX-M36-22-9D 36 15-22 90 15 36/43
JX-M36-25-9D 36 18-25 90 15 40/43
JX-M40-25-9D 40 18-25 90 15 40/43
JX-M40-30-9D 40 22-30 105 15 50/55
JX-M40-32-9D 40 22-32 115 15 50/55
JX-M42-9D 42 22-32 115 15 50/55
JX-M48-9D 48 22-32 115 15 50/55
JX-M50-9D 50 30-38 115 15 55/60
JX-M56-9D 56 30-38 115 15 55/60
JX-M60-9D 60 37-44 125 18 65/70
JX-M63-9D 63 37-44 125 18 75/75
JX-M64-9D 64 37-44 125 18 65/70
